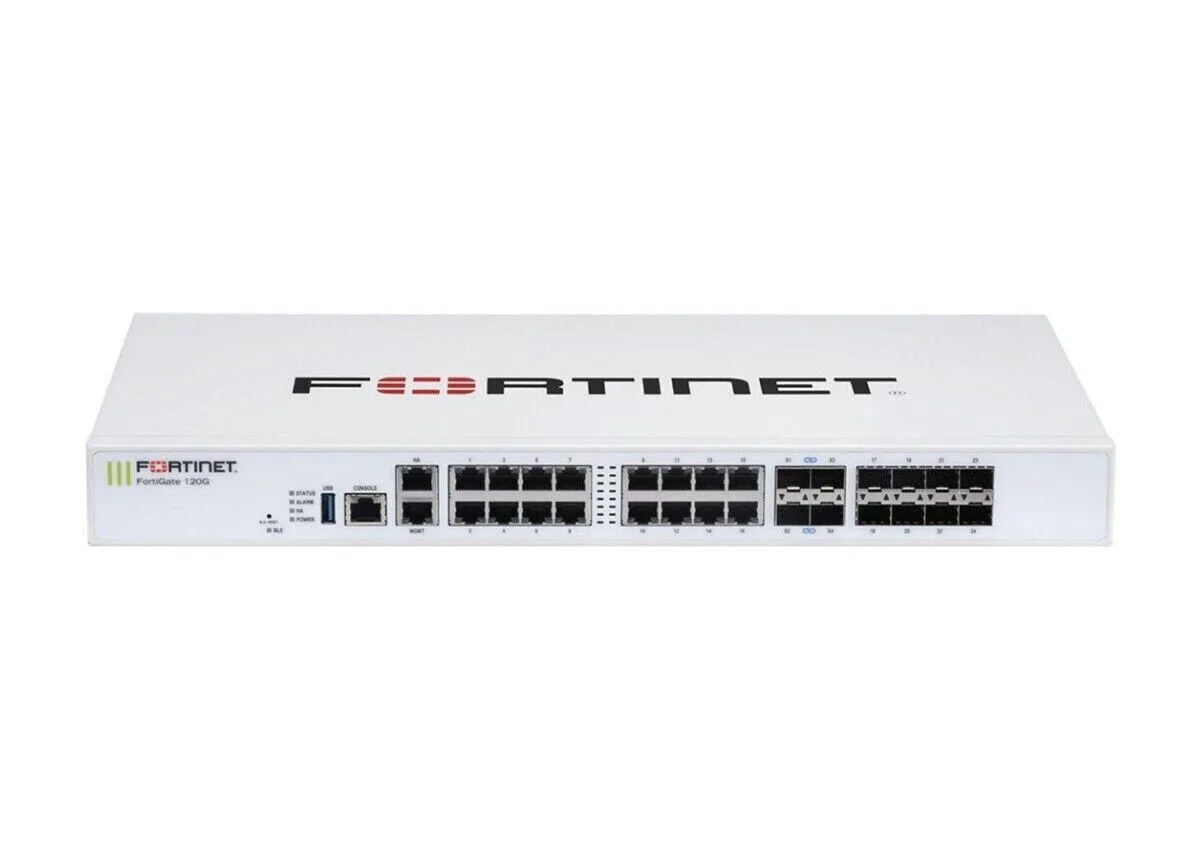

Rack-mountable firewall appliance, silver metal chassis, front panel with multiple network ports

Fortinet

Fortinet FortiGate FG-120G-BDL-950-36 firewall appliance

SKU CH-9H5N-X61TN MPN FG-120G-BDL-950-36

Rack-mountable next-generation firewall with 16 GE RJ45 ports, four 10 GE SFP+ FortiLink slots, eight SFP ports, 3.1 Gbps NGFW throughput and 2.8 Gbps threat-protection throughput.

  • Form FactorRack Mountable
  • Ports1x RJ45 Console Port 2x RJ45 HA and Management Ports 16x GE
  • Maximum Users5000+
  • VPNSystem Performance - Enterprise Traffic Mix IPS Throughput:
  • Power InputInput Rating: 100-240VAC, 60-50Hz Redundant Power Supplies:
  • Max Power Consumption40 W

Option w/ FortiCare Premium, FortiGuard Unified Threat Protection (3-Y)

  • Enterprise-grade threat protection at 2.8 Gbps throughput
  • 3-year FortiCare Premium and UTP security services included
  • 16 GE RJ45 ports plus 4x 10GE SFP+ for high-density connectivity
  • Dual non-swappable AC power supplies provide 1+1 redundancy
  • Rack-mountable 1U form factor fits standard 17-inch cabinets

FortiGate 120G firewall appliance

The FortiGate 120G is a rack-mountable next-generation firewall with integrated SD-WAN and zero-trust network access enforcement. It is designed for distributed enterprise sites that need consolidated threat protection and secure application access in a single platform. The bundle includes three years of FortiCare Premium support and FortiGuard Unified Threat Protection services.

Pre-installation checklist

Verify that your rack provides 1U of space and can accommodate the unit depth of 17 inches. Ensure the site power supplies 100-240VAC at 50-60Hz for the dual non-swappable AC power supplies. Confirm you have patch cables for the sixteen GE RJ45 ports, four 10GE SFP+ FortiLink slots and eight SFP ports. The console and HA management ports use RJ45 connectors.

Thermal and power profile

Maximum power consumption is rated at 40 W with a current draw of 1.0A at 100V or 0.5A at 240V. Dual internal power supplies provide 1+1 redundancy without hot-swap capability. The 1.73-inch high chassis fits standard rack airflow designs for normal office environments.

Highlights

  • Enterprise-grade threat protection at 2.8 Gbps throughput
  • 3-year FortiCare Premium and UTP security services included
  • 16 GE RJ45 ports plus 4x 10GE SFP+ for high-density connectivity
  • Dual non-swappable AC power supplies provide 1+1 redundancy
  • Rack-mountable 1U form factor fits standard 17-inch cabinets

Specifications

BrandFortinet
ModelFortiGate 120F w/ 3-Year FortiCare Premium and FortiGuard Unified Threat Protection
Form FactorRack Mountable
Ports1x RJ45 Console Port
2x RJ45 HA and Management Ports
16x GE RJ45 Ports
4x 10GE SFP+ FortiLink Slots
8x SFP Ports
Maximum Users5000+
VPNSystem Performance - Enterprise Traffic Mix
IPS Throughput: 5.3 Gbps
NGFW Throughput: 3.1 Gbps
Threat Protection Throughput: 2.8 Gbps
System Performance and Capacity
Firewall Throughput (1518 / 512 / 64 byte UDP packets): 39 / 39 / 28 Gbps
Firewall Latency (64 byte UDP packets): 3.17 µs
Firewall Throughput (Packets Per Second): 42 Mpps
Concurrent Sessions (TCP): 3 M
New Sessions/Second (TCP): 140 000
Firewall Policies: 10 000
IPsec VPN Throughput (512 byte): 35 Gbps
Gateway-to-Gateway IPsec VPN Tunnels: 2000
Client-to-Gateway IPsec VPN Tunnels: 16 000
SSL-VPN Throughput: 1.5 Gbps
Con
Power InputInput Rating: 100-240VAC, 60-50Hz
Redundant Power Supplies: Yes (Default dual non-swappable AC PSU for 1+1 Redundancy)
Maximum Current: 1.0A @100V, 0.5A @240V
Max Power Consumption40 W
Dimensions1.73 x 17 x 10 inches
Weight12.17 lbs (5.52 kg)
Shipping weight7.26 kg
Package size635 × 508 × 254 mm
