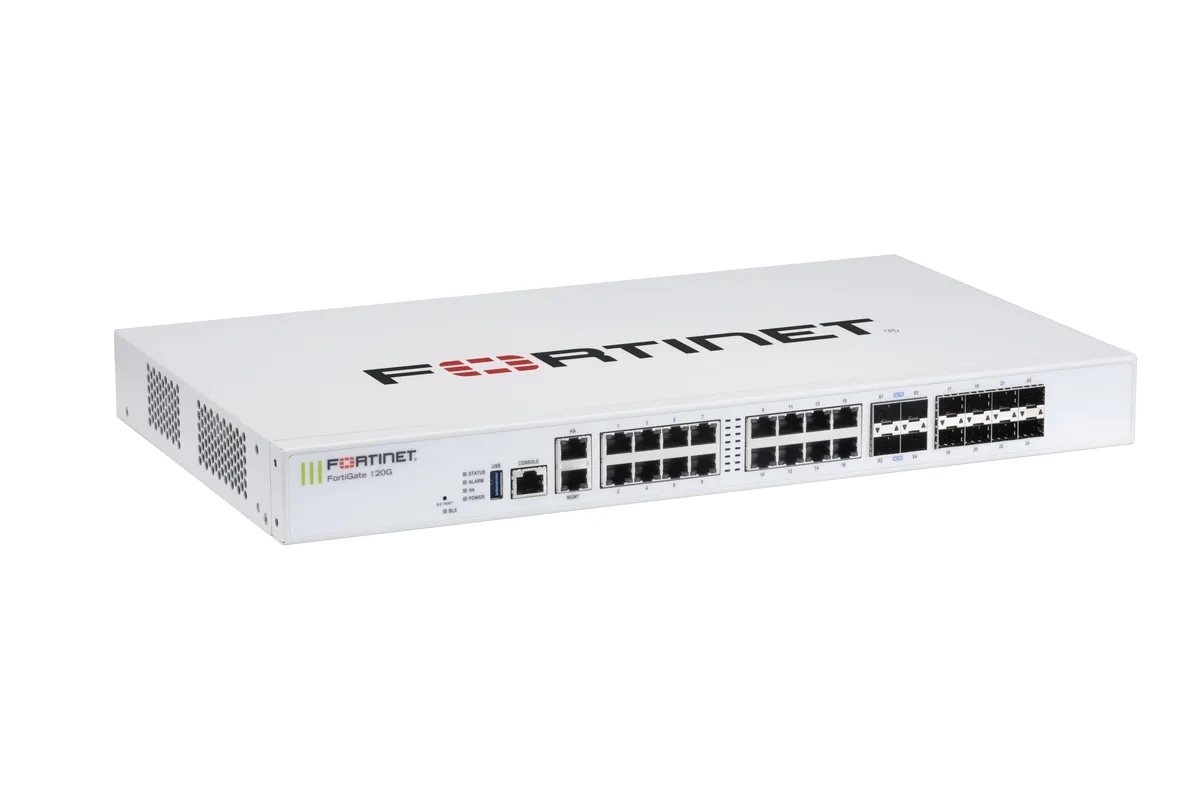

Rack-mountable network appliance, silver front panel with multiple ports

Fortinet

Fortinet FG-120G-BDL-809-12 firewall appliance

SKU CH-DARX-BYEP2 MPN FG-120G-BDL-809-12

Rack-mountable firewall with 16 GE RJ45, 8 SFP and 4 10GE SFP+ ports plus dual redundant power supplies

  • Form FactorRack Mountable
  • Ports1x RJ45 Console Port 2x RJ45 HA and Management Ports 16x GE
  • Maximum Users5000+
  • VPNSystem Performance - Enterprise Traffic Mix IPS Throughput:
  • Power InputInput Rating: 100-240VAC, 60-50Hz Redundant Power Supplies:
  • Max Power Consumption40 W

Option w/ FortiCare Premium, FortiGuard Enterprise Protection (1-Y)

  • Enterprise-grade threat protection at 2.8 Gbps throughput
  • High-speed connectivity with 16 GE RJ45 and 8 SFP ports
  • Dual redundant power supplies ensure continuous operation
  • Compact rack-mountable design fits 1.73U space
  • Supports 5000+ users with integrated SD-WAN and ZTNA

Purpose-built security hub

The FortiGate 120G is a rack-mountable firewall appliance designed as the central security hub for distributed enterprise sites. It combines next-generation firewall capabilities with integrated SD-WAN and zero-trust network access enforcement in a single operating system. The bundle includes one year of FortiCare Premium support and FortiGuard Enterprise Protection services.

Suits multi-site enterprises, not small offices

This appliance suits organisations that need coordinated threat protection across many locations with up to 5000+ users and 10 Gigabit Ethernet uplinks. It is not for teams that require only basic internet gateway functions or sites that lack rack infrastructure and redundant power planning.

Verify rack space and uplink modules

Before ordering, confirm the 1.73 x 17 x 10 inch chassis fits your rack depth and that 40 W maximum power draw matches available circuits. Check whether the eight SFP and four 10GE SFP+ FortiLink slots cover your fibre uplink needs or if additional transceivers must be sourced separately.

Highlights

  • Enterprise-grade threat protection at 2.8 Gbps throughput
  • High-speed connectivity with 16 GE RJ45 and 8 SFP ports
  • Dual redundant power supplies ensure continuous operation
  • Compact rack-mountable design fits 1.73U space
  • Supports 5000+ users with integrated SD-WAN and ZTNA

Specifications

BrandFortinet
ModelFortiGate 120F w/ 1-Year FortiCare Premium and FortiGuard Enterprise Protection
Part NumberFG-120G-BDL-809-12
Form FactorRack Mountable

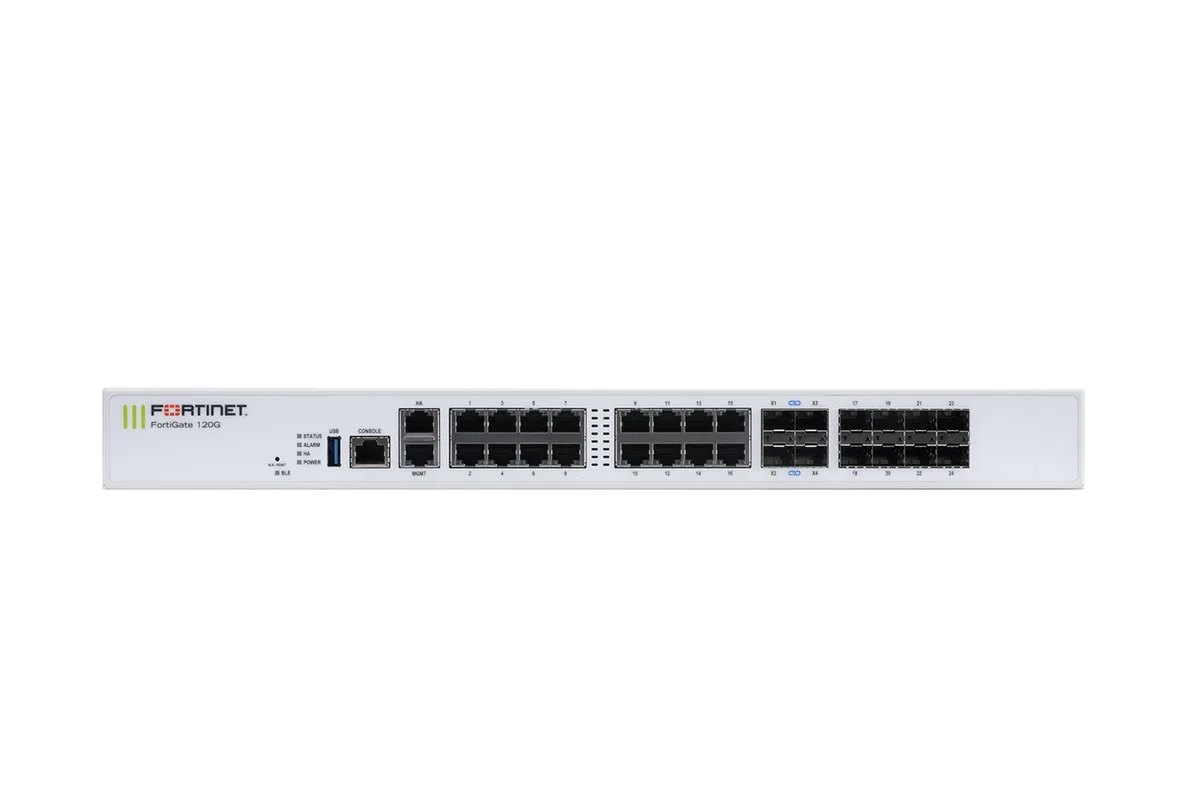

Ports1x RJ45 Console Port
2x RJ45 HA and Management Ports
16x GE RJ45 Ports
4x 10GE SFP+ FortiLink Slots
8x SFP Ports
Maximum Users5000+
VPNSystem Performance - Enterprise Traffic Mix
IPS Throughput: 5.3 Gbps
NGFW Throughput: 3.1 Gbps
Threat Protection Throughput: 2.8 Gbps
System Performance and Capacity
Firewall Throughput (1518 / 512 / 64 byte UDP packets): 39 / 39 / 28 Gbps
Firewall Latency (64 byte UDP packets): 3.17 µs
Firewall Throughput (Packets Per Second): 42 Mpps
Concurrent Sessions (TCP): 3 M
New Sessions/Second (TCP): 140 000
Firewall Policies: 10 000
IPsec VPN Throughput (512 byte): 35 Gbps
Gateway-to-Gateway IPsec VPN Tunnels: 2000
Client-to-Gateway IPsec VPN Tunnels: 16 000
SSL-VPN Throughput: 1.5 Gbps
Con
Power InputInput Rating: 100-240VAC, 60-50Hz

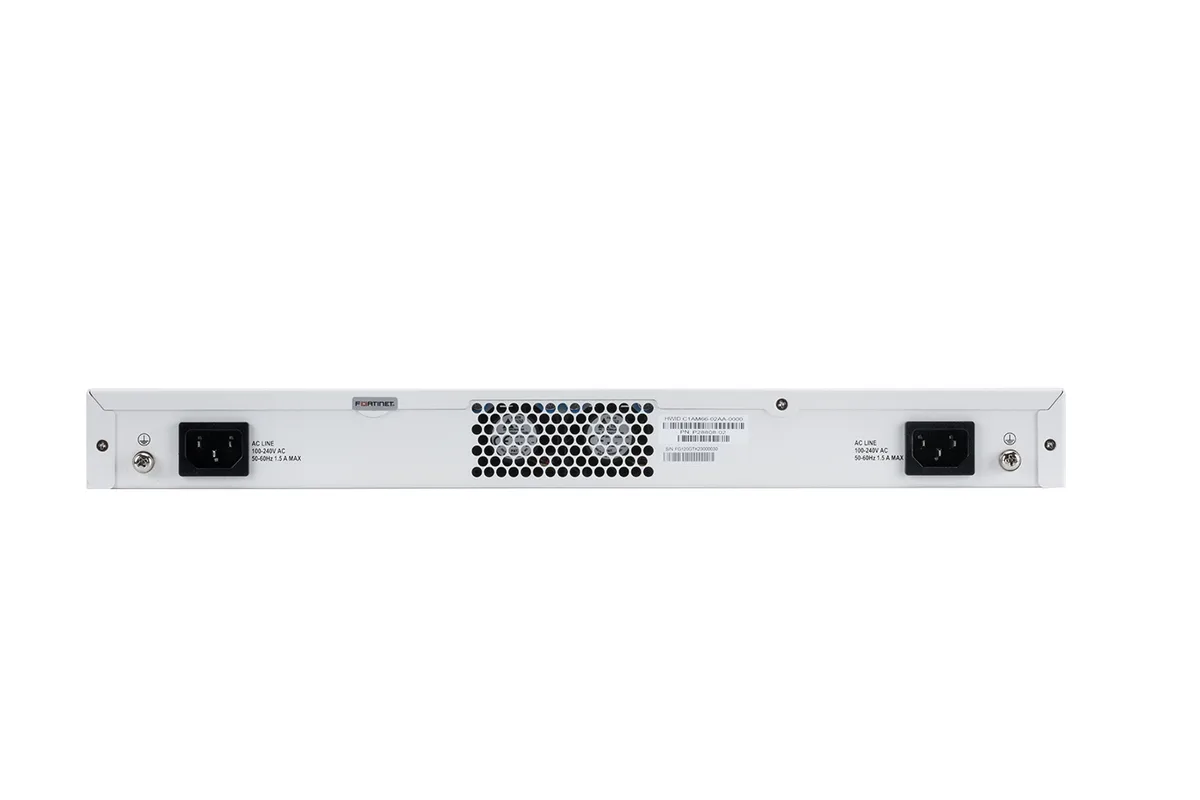

Redundant Power Supplies: Yes (Default dual non-swappable AC PSU for 1+1 Redundancy)
Maximum Current: 1.0A @100V, 0.5A @240V
Max Power Consumption40 W
Dimensions1.73 x 17 x 10 inches
Weight12.17 lbs (5.52 kg)
Shipping weight5.90 kg
Package size508 × 381 × 254 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What rack space and power connections do I need to install the FortiGate 120G?

The appliance fits a 1U rack slot measuring 1.73 x 17 x 10 inches and ships with dual non-swappable AC power supplies for 1+1 redundancy, each accepting 100-240VAC at 50-60Hz.

Can I keep using my existing 1 Gbps copper switches and 10 Gbps fibre uplinks with the 16 GE RJ45 and 4 SFP+ FortiLink ports?

Yes, the 16 GE RJ45 ports connect directly to 1 Gbps copper gear while the 4 SFP+ FortiLink slots support 10 Gbps fibre modules for uplinks or stacking.

How do I verify the firewall is processing traffic at the rated 3.1 Gbps NGFW throughput after deployment?

Monitor the dashboard’s real-time throughput widgets and run the built-in traffic generator against the 1518, 512 and 64 byte UDP packet sizes to confirm sustained performance near the published 3.1 Gbps NGFW figure.
