Compact white desktop firewall appliance with four RJ45 ports and status LEDs

Fortinet

Fortinet FG-30G-BDL-809-12 firewall appliance

SKU CH-G0F5-B9ZQE MPN FG-30G-BDL-809-12

Desktop firewall appliance with four gigabit ports, IPS throughput of 800 Mbps and NGFW throughput of 570 Mbps, bundled with one-year FortiCare Premium and FortiGuard Enterprise Protection

  • Form FactorDesktop
  • VPNSYSTEM PERFORMANCE - ENTERPRISE TRAFFIC MIX IPS Throughput:
  • ComplianceFCC, IC, CE, UL/cUL, CB, VCCI, BSMI, RCM, UKCA
  • Power InputPower Rating: 12VDC, 2A Power Source Powered by external DC
  • Max Power Consumption8.2 W
  • DimensionsHeight x Width x Length (inches): 1.6 x 5.6 x 6.3

Option w/ FortiCare Premium and FortiGuard Enterprise Protection (1-Y)

  • Integrated firewall, SD-WAN and security in one desktop appliance
  • Four GE RJ45 ports provide wired connectivity for small sites
  • 800 Mbps IPS throughput inspects traffic without slowing the network
  • 2 W maximum power draw keeps operating costs low
  • 3 lb weight and compact 1.6 x 5.6 x 6.3 in size suit space-constrained deployments

Desktop form factor for distributed sites

The FortiGate 30G series is a desktop firewall appliance that integrates firewalling, SD-WAN and security services in one unit. It ships with a 1-year FortiCare Premium and FortiGuard Enterprise Protection subscription for immediate threat protection coverage. The platform runs FortiOS and is designed for secure networking at distributed enterprise locations.

Suits small offices needing converged security

Organisations that require a single appliance for next-generation firewall, SD-WAN and AI-powered security services will fit this model. Buyers who need higher throughput for larger sites or who require rack-mount hardware should look at other form factors. The desktop chassis is intended for shelf or wall placement rather than data-centre racks.

Check power and port requirements first

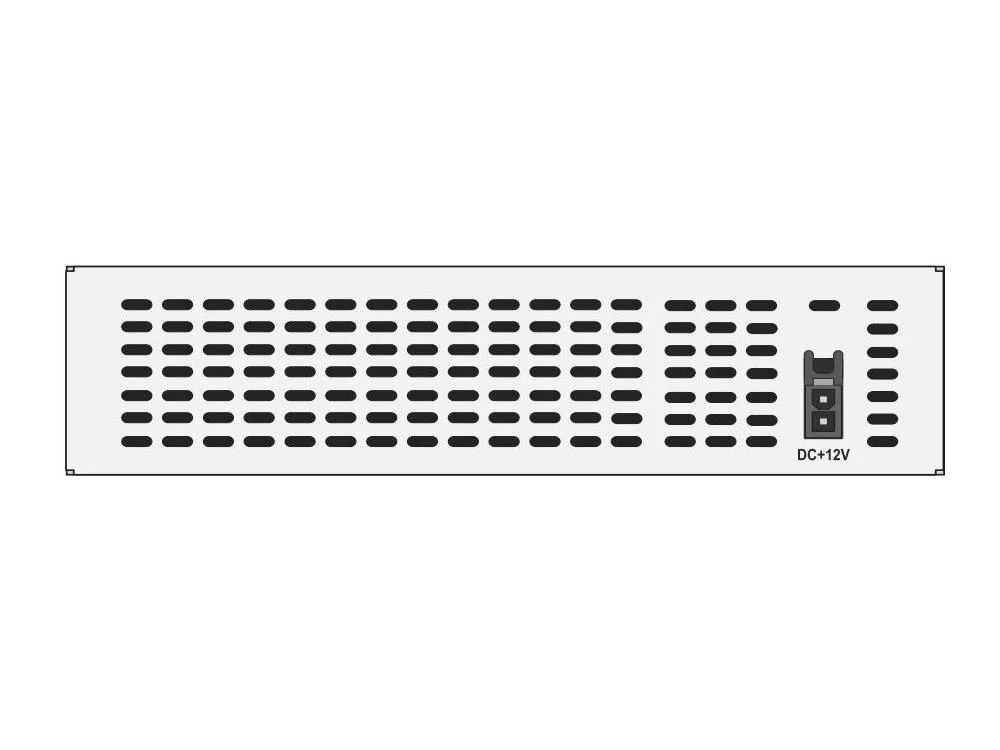

The unit draws a maximum of 8.2 W from an external 12 V DC adapter that accepts 100-240 V AC at 50/60 Hz. Four Gigabit Ethernet RJ45 ports are provided for WAN and LAN connections. Verify that your site can supply the DC adapter and that four copper ports meet your connectivity plan.

Highlights

  • Integrated firewall, SD-WAN and security in one desktop appliance
  • Four GE RJ45 ports provide wired connectivity for small sites
  • 800 Mbps IPS throughput inspects traffic without slowing the network
  • 2 W maximum power draw keeps operating costs low
  • 3 lb weight and compact 1.6 x 5.6 x 6.3 in size suit space-constrained deployments

Specifications

BrandFortinet
SeriesFortiGate 30G Series
ModelFortiGate 30G w/ 1-Y FortiCare Premium and FortiGuard Enterprise Protection
Part NumberFG-30G-BDL-809-12
Form FactorDesktop
VPNSYSTEM PERFORMANCE - ENTERPRISE TRAFFIC MIX
IPS Throughput: 800 Mbps
NGFW Throughput: 570 Mbps
Threat Protection Throughput: 500 Mbps
SYSTEM PERFORMANCE
IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP):
4/ 4/ 3.9 Gbps
IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP):
4/ 4/ 3.9 Gbps
Firewall Latency (64 byte UDP packets):
2.87 µs
Firewall Throughput (Packets Per Second):
5.85 Mpps
Concurrent Sessions (TCP):
600 000
New Sessions/Second (TCP):
30 000
Firewall Policies:
2000
IPsec VPN Throughput (512 byte):
3.5 Gbps
Gateway-to-Gateway IPsec VPN Tunnels:
200
Client-to-Gateway IPse
ComplianceFCC, IC, CE, UL/cUL, CB, VCCI, BSMI, RCM, UKCA
Power InputPower Rating:
12VDC, 2A
Power Source Powered by external DC power adapter:
100-240V AC, 50/60 Hz
Maximum Current:
100V/0.11A, 240V/0.055A
Max Power Consumption8.2 W
DimensionsHeight x Width x Length (inches): 1.6 x 5.6 x 6.3
Weight1.3 lbs (0.6 kg)
Shipping weight3.63 kg
Package size762 × 457 × 178 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What power source is required for the FG-30G-BDL-809-12 to operate?

The appliance ships with an external DC power adapter rated 12 VDC, 2 A that accepts 100-240 V AC at 50/60 Hz.

Will the four GE RJ45 ports on this FortiGate 30G connect directly to my existing Cat5e patch cables?

Yes, each of the four ports is a standard Gigabit Ethernet RJ45 interface compatible with Cat5e or better cabling.

How can I verify the unit is delivering the rated 500 Mbps threat-protection throughput after deployment?

Enable the built-in traffic monitoring dashboard in FortiOS and run a sustained UDP test at 1518-byte packet size; the reported throughput should approach the 500 Mbps specification.
