Yellow handheld cable tester with rubber overmould, backlit LCD screen, RJ11, RJ45 and coax ports

FLUKE networks

FLUKE networks MS2-100 MicroScanner2 Cable Tester

SKU CH-73C9-JV6XK MPN MS2-100

Tests RJ11, RJ45 and coax cables showing wiremap, length, ID and fault distance on one backlit screen with Intellitone toning

  • QuantityNo
  • SpecificationsTest Services: Graphical wiremap, length, cable ID, and dist
  • FeaturesTwisted-pair: UTP, FTP, SSTP 8-pin modular jack accepts 8-pi
  • Package Contents78522N

Option MS2-100 Network Cable Tester

  • Shows wiremap, length, ID and fault distance on one screen
  • Tests RJ11, RJ45 and coax cables without extra adapters
  • Detects 10/100/1000 Ethernet, POTS and PoE services
  • Locates cables with Intellitone digital and analog toning
  • Rugged rubber overmould and backlit LCD for tough environments

Cable Verifier for Voice Data Video Technicians

The Fluke Networks MS2-100 MicroScanner2 is a handheld cable verifier built for technicians who install or maintain voice, data and video infrastructure. It combines graphical wiremap, pair length, distance to fault, cable ID and far-end device detection on one backlit LCD screen. The tester accepts RJ11, RJ45 and coax F-connector plugs directly, covering twisted-pair and coaxial media without extra adapters.

Plug In and Test Without Adapters

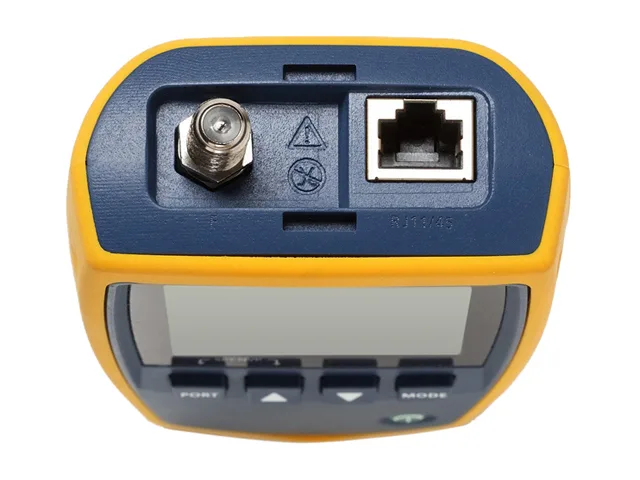

Installation is straightforward because the unit integrates RJ11, RJ45 and coax ports on the tester body, eliminating the need to carry or fit separate adapters. A rubber over-mould improves grip and ruggedness for field use. The only common friction point is ensuring the correct far-end identifier is connected when mapping cable ID or locating faults across long runs.

One-Screen Graphical Wiremap and Length

The decisive specification is the single-screen display that presents graphical wiremap, pair lengths up to 460 m or 1500 ft with .3 m resolution, distance to fault, cable ID and far-end device status simultaneously. This consolidates four test modes into one view, reducing test time and technician error for verification of 10/100/1000 Ethernet, POTS and PoE services.

Highlights

  • Shows wiremap, length, ID and fault distance on one screen
  • Tests RJ11, RJ45 and coax cables without extra adapters
  • Detects 10/100/1000 Ethernet, POTS and PoE services
  • Locates cables with Intellitone digital and analog toning
  • Rugged rubber overmould and backlit LCD for tough environments

Specifications

BrandFluke Networks
ModelMS2-100
QuantityNo
SpecificationsTest Services:
Graphical wiremap, length, cable ID, and distance to fault displayed on one screen.
Tests all common media types including RJ11, RJ45, Coax, with no need for adapters.
Locates virtually any cable or wire pair with IntelliTone digital and analog toning.
Verifies today's media services, including 10/100/1000 Ethernet, POTS, and PoE.
Integrated rubber holster enhances grip and makes it durable enough for the toughest jobs.
Large, backlit LCD makes results crystal clear whether in bright sunshine or in a dark closet.
Length Measurement: 11.81" to 1509 ft
Ports: RJ-45 10/10
FeaturesTwisted-pair: UTP, FTP, SSTP 8-pin modular jack accepts 8-pin modular (RJ45) and 4-pin modular (RJ11) plugs; Coax: F-connector for 75 O, 50 O, 93 O cables
Cable Tests
Length (460 m or 1500 ft. with resolution to 0.3 m or 1 ft.), wiremap to TIA-568A/B standards, remote ID locators; displays results on one screen
Streamline verification testing
The MicroScanner2 Cable Verifier presents a revolutionary change in voice, data, and video cable testing. It starts by taking results from what was four different test modes and displaying them all at once – graphical wiremap, pair lengths, dist

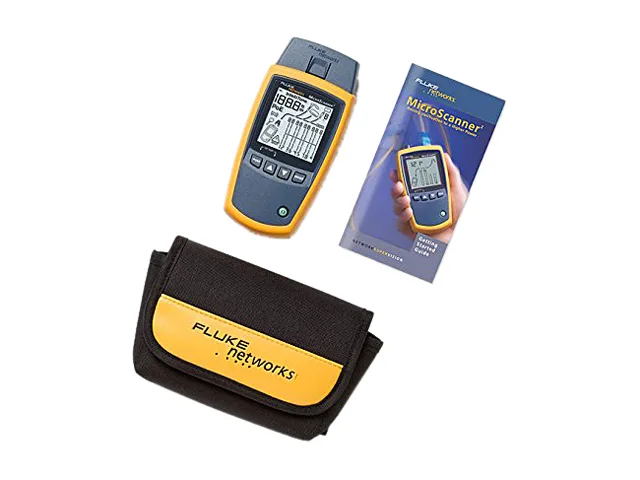

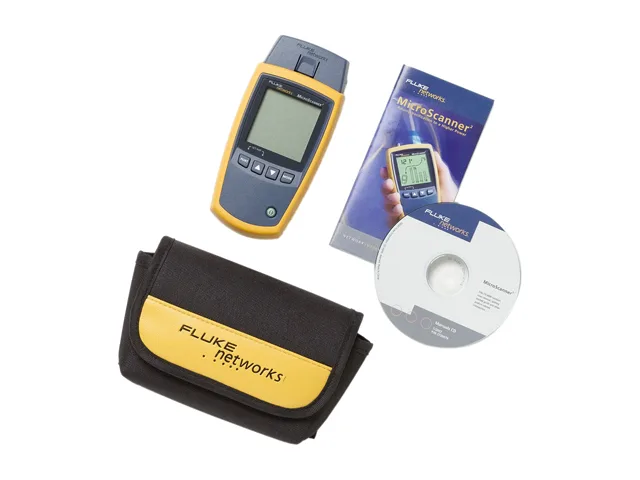

Package Contents78522N
Shipping weight1.36 kg
Package size234 × 165 × 84 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How can I confirm the MicroScanner2 is testing cables correctly after I turn it on?

The backlit LCD shows graphical wiremap, pair length up to 460 m or 1500 ft with .3 m resolution, cable ID and distance to fault on one screen so you can verify each result immediately.

What comes with the MS2-100 and what must I purchase separately?

The package includes the tester with integrated RJ11, RJ45 and F-connector ports for coax 75 O, 50 O and 93 O cables; remote identifiers and optional Intellitone probes are sold separately.

Which version of the MicroScanner2 should I choose for testing 10/100/1000 Ethernet, POTS and PoE services?

The MS2-100 model detects 10, 100 and 1000 Ethernet, POTS voltage and PoE presence on twisted-pair UTP, FTP and SSTP cables, covering all listed media services in a single unit.
