Fluke

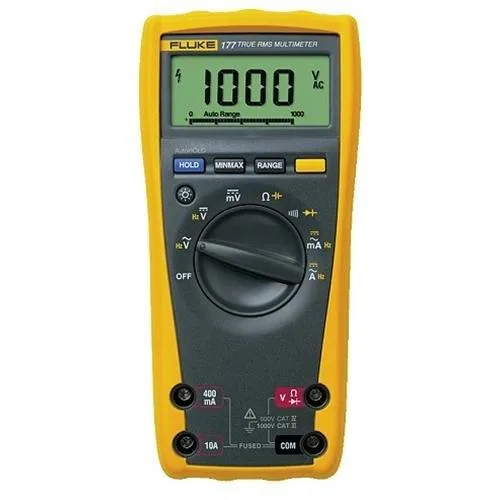

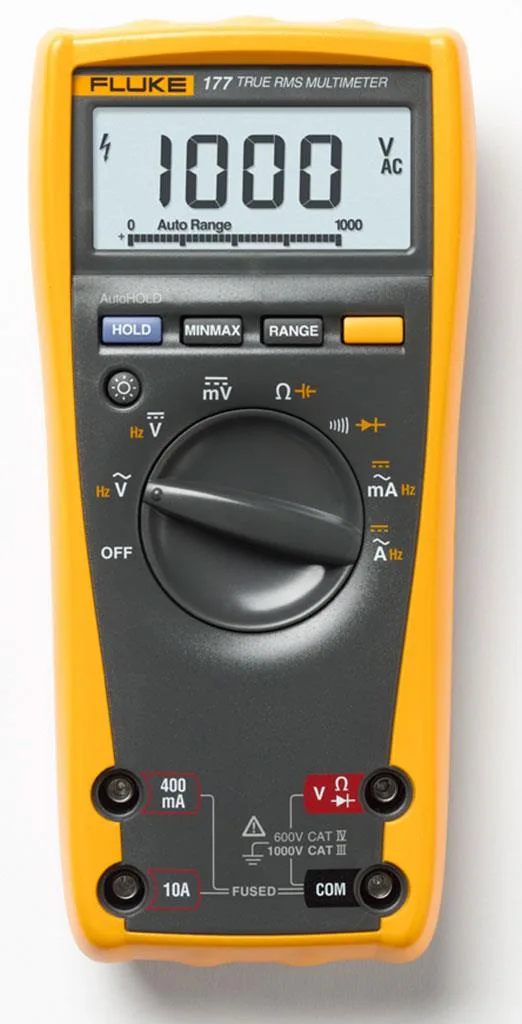

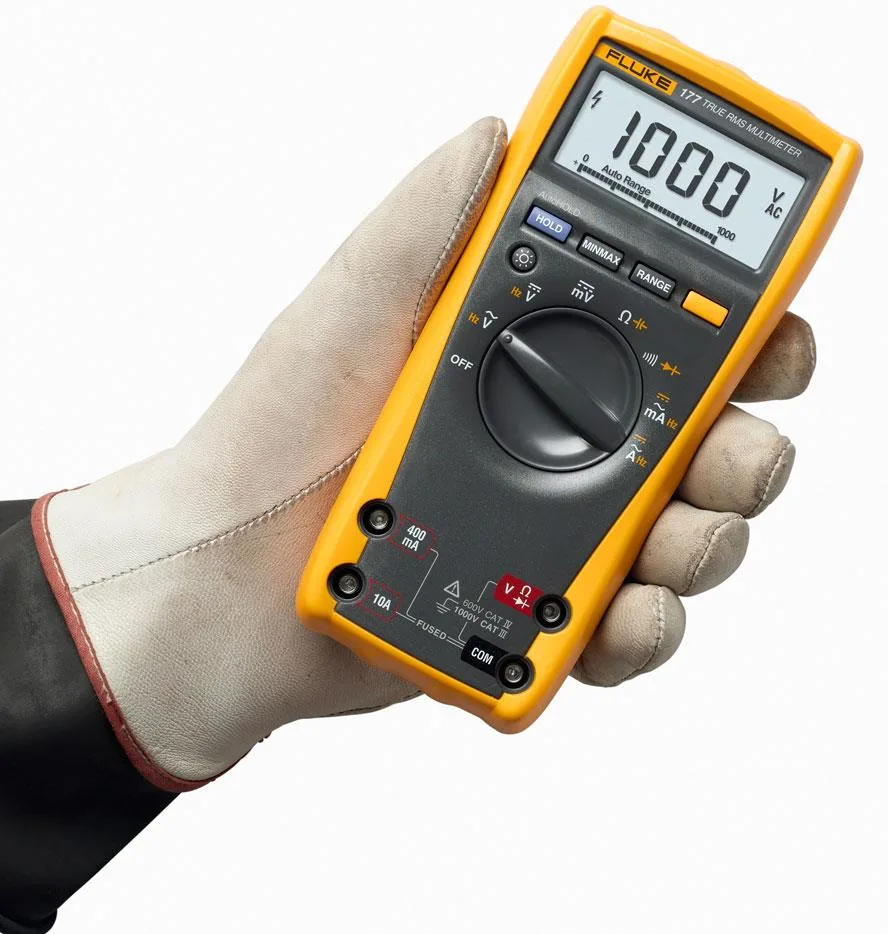

Fluke 177 Digital Multimeter measurement tool
True RMS digital multimeter with 6000-count display, 1000 V AC/DC range, CAT IV 600 V/CAT III 1000 V safety rating, and one-metre drop protection
- AC Voltage1000V
- DC Voltage1000V
- Analog/DigitalDigital
- TypeDigital Multimeter
- True RMS accuracy for precise electrical troubleshooting
- CAT IV 600 V and CAT III 1000 V safety rating for high-energy environments
- 6000-count display resolution for detailed measurement readings
- Overmolded case with 1-meter drop protection for jobsite durability
- Min/Max/Average recording captures signal fluctuations automatically
Professional electrical troubleshooting
The Fluke 177 is a true-RMS digital multimeter built for technicians who troubleshoot and repair electrical and electronic systems. Its 6000-count display provides precise readings for AC and DC voltage up to 1000 V. The meter includes min/max/average recording to capture signal fluctuations during diagnostics.
Rugged overmolded case with probe holders
The integrated overmolded body armor protects the instrument from drops of up to one metre and keeps test leads organised in built-in holders. Fused current inputs and overvoltage protection guard the meter internally, while the design prevents voltage measurement when the rotary switch is accidentally set to resistance. An easy-access battery door simplifies routine maintenance.
CAT IV 600 V and CAT III 1000 V safety rating
This multimeter meets IEC 1010 standards for measurement categories IV at 600 V and III at 1000 V, defining the electrical environments where it can be used safely. Buyers who need a higher category rating or additional functions such as capacitance or temperature measurement should verify those specifications before purchase.
Highlights
- True RMS accuracy for precise electrical troubleshooting
- CAT IV 600 V and CAT III 1000 V safety rating for high-energy environments
- 6000-count display resolution for detailed measurement readings
- Overmolded case with 1-meter drop protection for jobsite durability
- Min/Max/Average recording captures signal fluctuations automatically
Specifications
| Brand | Fluke |
|---|---|
| Model | 177 |
| AC Voltage | 1000V |
| DC Voltage | 1000V |
| Analog/Digital | Digital |
| Type | Digital Multimeter |
| Shipping weight | 0.91 kg |
| Package size | 248 × 159 × 89 mm |
Questions about this item
What safety rating does the CAT IV 600 V / CAT III 1000 V classification provide?
It certifies the meter for use on low-voltage installations up to 600 V and building wiring up to 1000 V with transient protection.
What physical features protect the Fluke 177 from drops?
An overmolded case with integrated probe holders provides drop protection up to 1 meter.
How is the battery replaced on the Fluke 177?
An easy-open battery door allows replacement without removing the case screws.
