Small black box with BNC, HDMI, 3.5 mm and USB ports

FLEANE

FLEANE BNC to HDMI Adapter 720P/1080P CVBS PAL/NTSC

SKU CH-CPGH-MCF7J

Converts CVBS BNC analogue video and 3.5 mm audio to HDMI at 720P or 1080P with automatic PAL/NTSC detection

  • TypeHDMI Adapter
  • Converts CVBS BNC cameras to HDMI displays
  • Auto-detects PAL or NTSC video standards
  • Outputs 720P or 1080P at 50 to 60Hz
  • Adds 3.5 mm audio into the HDMI stream
  • Powered by USB cable with 4:3 or 16:9 scaling

Connectivity & Use

This FLEANE adapter converts a CVBS analog BNC video signal to an HDMI output for display on a modern monitor or projector. It also accepts a 3.5 mm auxiliary audio input that is embedded into the HDMI stream. The unit auto-detects PAL or NTSC formats and offers a switchable 720P or 1080P output at 50 to 60 Hz. A USB power cable is included for operation.

Who It Suits

Installers upgrading legacy CCTV DVRs or connecting analog security cameras directly to an HDTV will find this converter fits the task. It supports 4:3 and 16:9 aspect ratios for flexible viewing. Buyers with AHD, TVI, CVI or digital cameras cannot use this device. It also does not function with RF coaxial sources such as antenna or cable TV signals.

Critical Specification

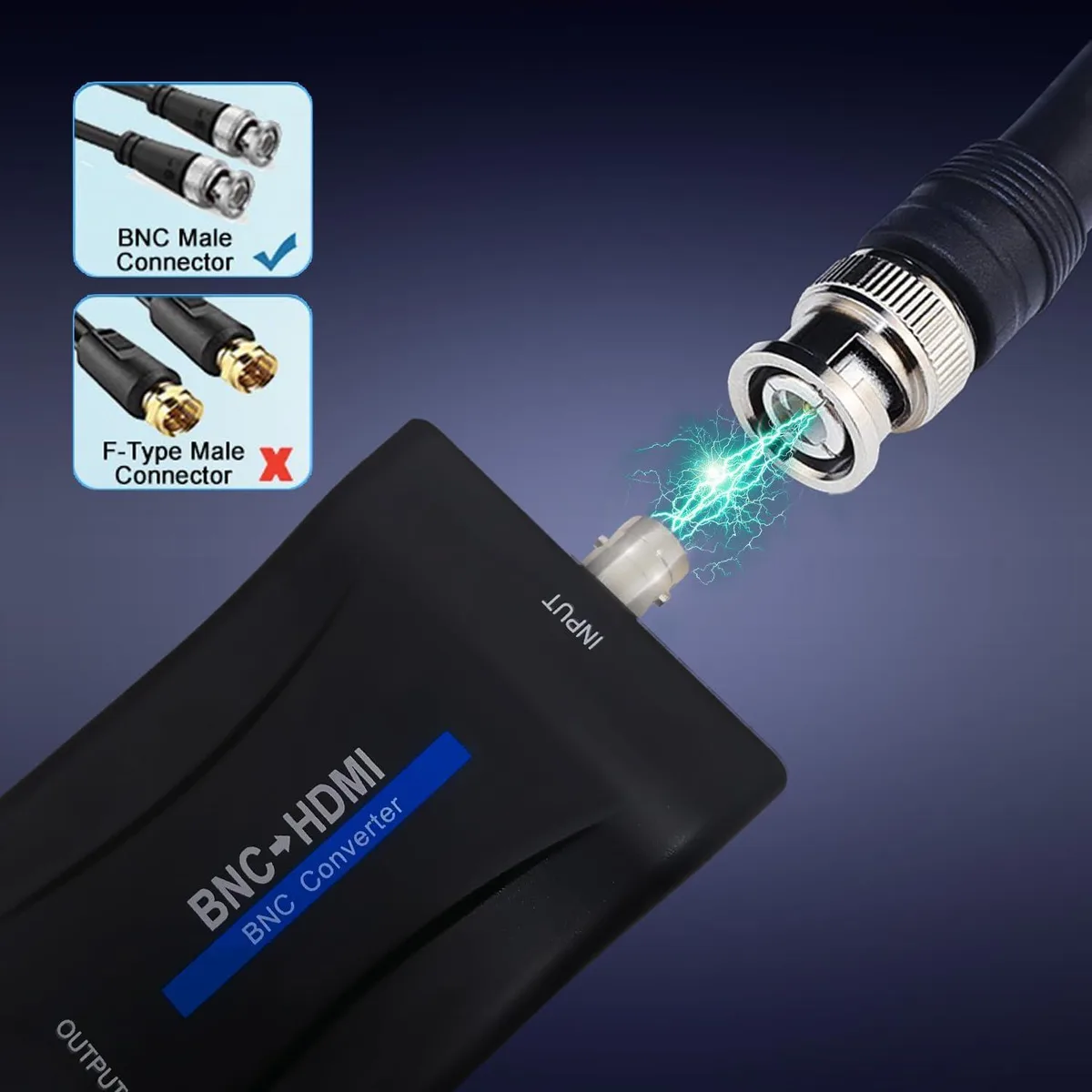

The adapter only processes CVBS analog video through its BNC input and explicitly rejects SDI, AHD, TVI and CVI formats. Confirm the source camera or DVR outputs standard CVBS before purchase. The 3.5 mm audio jack adds sound to the HDMI feed. A separate 5 V USB power supply is required but not included in the package.

Highlights

  • Converts CVBS BNC cameras to HDMI displays
  • Auto-detects PAL or NTSC video standards
  • Outputs 720P or 1080P at 50 to 60Hz
  • Adds 3.5 mm audio into the HDMI stream
  • Powered by USB cable with 4:3 or 16:9 scaling

Specifications

TypeHDMI Adapter

Questions about this item

Does the BNC input carry standard CVBS PAL/NTSC signals, and what output resolutions does the adapter cap at?

The adapter accepts CVBS BNC analogue video and auto-detects PAL or NTSC. HDMI output is limited to 720P or 1080P at 50 to 60 Hz, selectable via a switch on the unit.

What physical connections and power does the unit need to fit into a CCTV rack or desk setup?

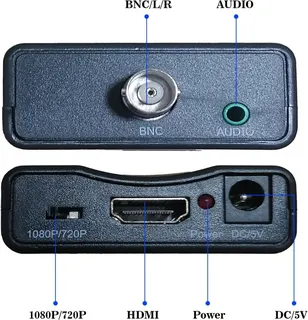

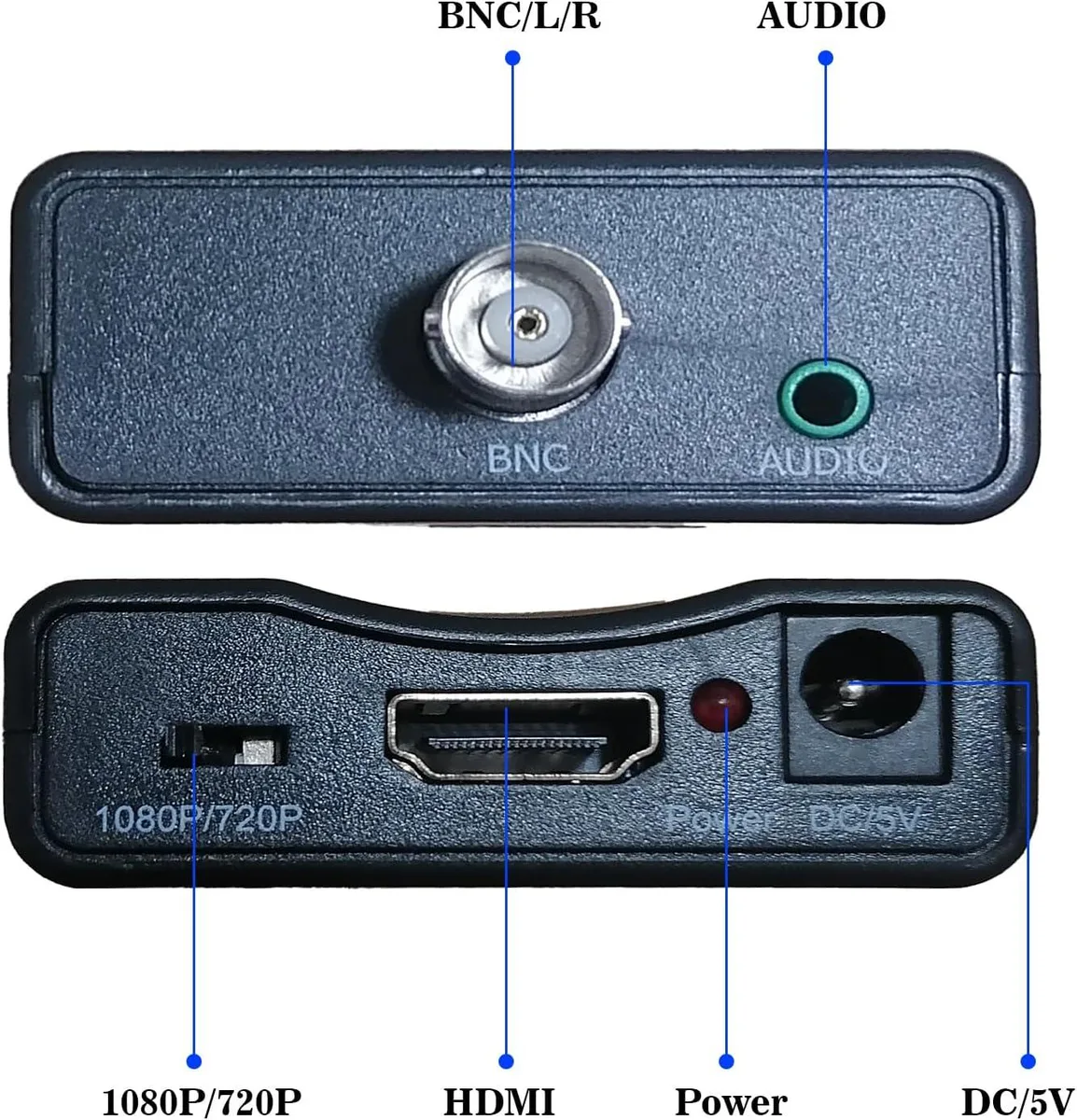

It provides one BNC female for video, a 3.5 mm auxiliary jack for audio, and an HDMI female output. Power comes from a USB cable, so a 5 V USB port or charger is required; no mains adapter is included.

In what order must the cables be connected during installation so the converter locks to the signal?

Connect the USB power cable and the BNC video cable first. Only after both are seated should the HDMI cable be plugged into the display; reversing this sequence often prevents the unit from syncing.
