Small green circuit board with vertical OCuLink SFF-8612 port U.2 U.3 connector and SATA power socket

Fervit

Fervit SFF-8643 PCIe 4.0 to U.2 SFF-8639 U.3 NVMe Adapter

SKU CH-2KEB-KDEG9

Connects U.2 or U.3 NVMe SSDs to an OCuLink SFF-8612 port with PCIe 4.0/5.0 signal support and SATA power

  • Up to 64Gbps throughput via PCIe 4.0/5.0 NVMe 1.2 signalling
  • Connects OCuLink SFF-8612 to U.2/U.3 SFF-8639 with SATA power
  • Vertical connector fits tight clearances around female ports
  • Adds one OCuLink SFF-8612 interface to existing U.2/U.3 connection
  • Supports NVMe protocol for high-speed SSD expansion

SFF-8643 to U.2/U.3 NVMe Adapter

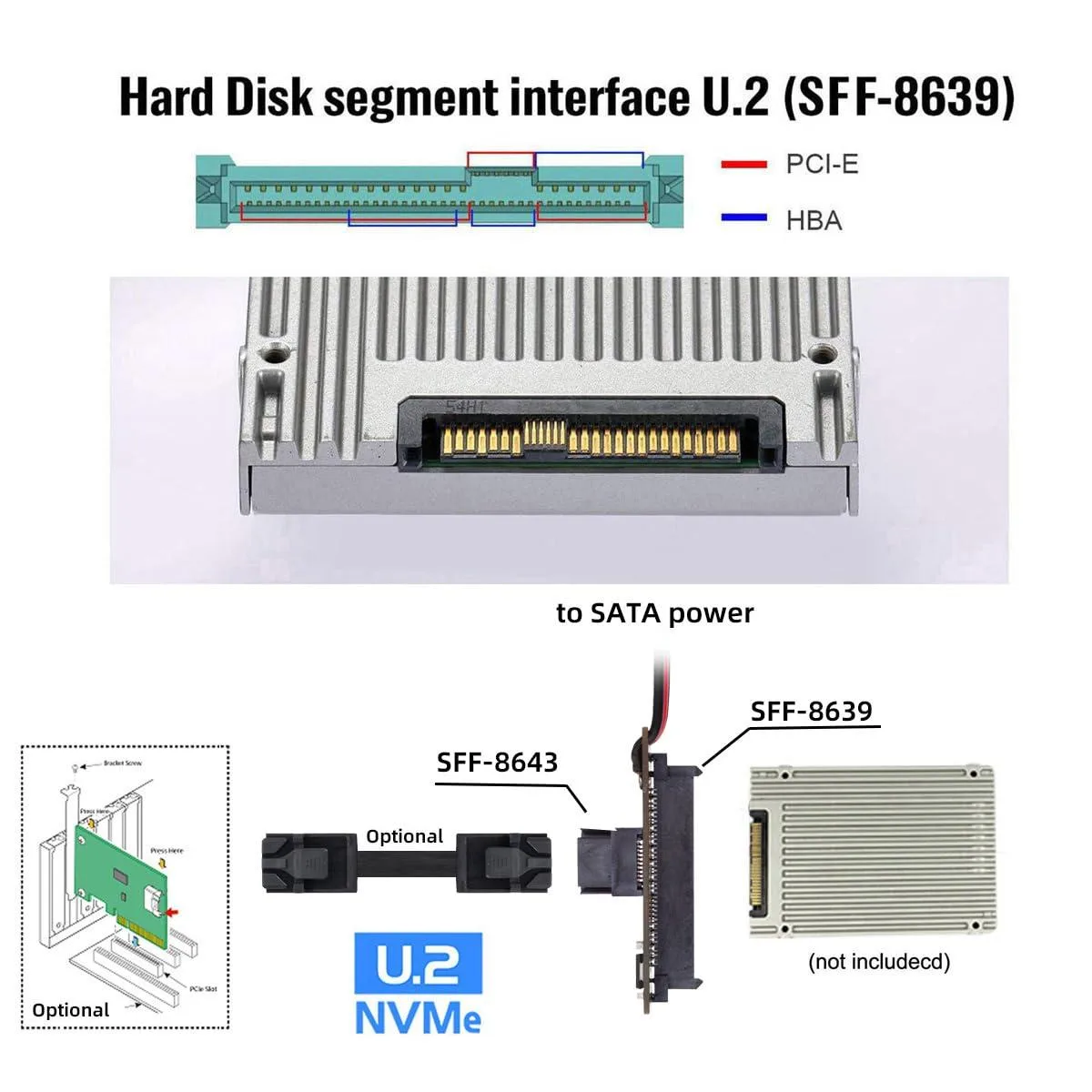

This Fervit adapter converts an SFF-8643 OCuLink port to a U.2 SFF-8639 U.3 NVMe interface. It suits builders adding enterprise or high-capacity U.2 SSDs to boards that only expose an OCuLink connector. The vertical layout fits tight spaces around the motherboard header. No drive is included; an optional cable completes the link.

PCIe 4.0 and 5.0 Signal Pass-Through

The card passes PCI Express 4.0 and 5.0 signals using the NVMe protocol at up to 64Gbps. It supports NVM Express 1.2 without active components, so thermals, noise and power draw stay at cable level. A SATA power connector supplies the drive side. No fan or heatsink is present on the adapter itself.

Upgrades from Direct OCuLink Cabling

This replaces a straight OCuLink cable when the target SSD uses a U.2/U.3 connector. The jump is worth it when the motherboard offers only SFF-8643 and the chassis or backplane requires the 8639 form factor. It does not add a second port or convert to M.2.

Highlights

  • Up to 64Gbps throughput via PCIe 4.0/5.0 NVMe 1.2 signalling
  • Connects OCuLink SFF-8612 to U.2/U.3 SFF-8639 with SATA power
  • Vertical connector fits tight clearances around female ports
  • Adds one OCuLink SFF-8612 interface to existing U.2/U.3 connection
  • Supports NVMe protocol for high-speed SSD expansion

Specifications

BrandFervit

Questions about this item

How do I connect the Fervit adapter to my motherboard and what is the common mistake with the SFF-8643 port?

Plug the SFF-8643 male end into the motherboard OCuLink port, attach the U.2 drive to the SFF-8639 female connector, then supply power via the SATA power plug; the step often missed is forgetting the SATA power cable, so the drive receives no power.

What upkeep does the Fervit SFF-8643 to U.2 adapter require over time?

No scheduled maintenance is needed; just inspect the SFF-8612 and SFF-8639 connectors for dust or bent pins when swapping drives and reseat the SATA power cable if the drive becomes unstable.

What is the first bottleneck I will hit when running this adapter at full speed for long periods?

The 64Gbps ceiling of the PCIe 4.0/5.0 link and NVMe 1.2 protocol is the hard limit; sustained workloads cannot exceed that bandwidth regardless of the drive attached.
