Green PCIe adapter card with gold edge connector and silver MCIO female port

Fervit

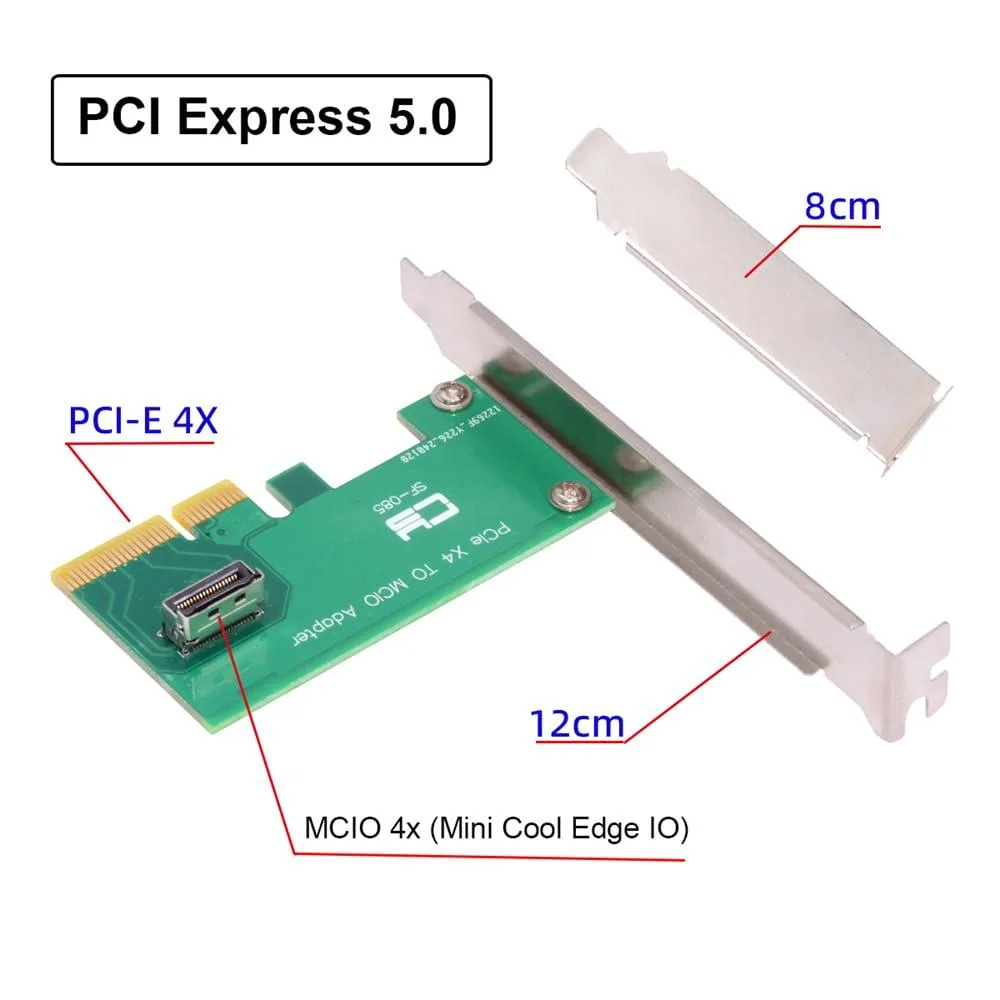

Fervit PCIe 5.0 4.0 4X to MCIO Female Host Adapter

SKU CH-ZYJK-7MVAH

Adds a PCIe 5.0 and 4.0 4x MCIO female port to connect NVMe U.2 SSDs via optional cable

  • Adds an MCIO port for PCIe 4.0 or 5.0 NVMe storage
  • Transmits 4x PCIe signals for high-speed data paths
  • Supports cable-to-board and card-to-board server links
  • Works with SAS, PCIe and Ethernet protocols
  • Expands the system with one MCIO female interface

PCIe 5.0 adapter for MCIO storage

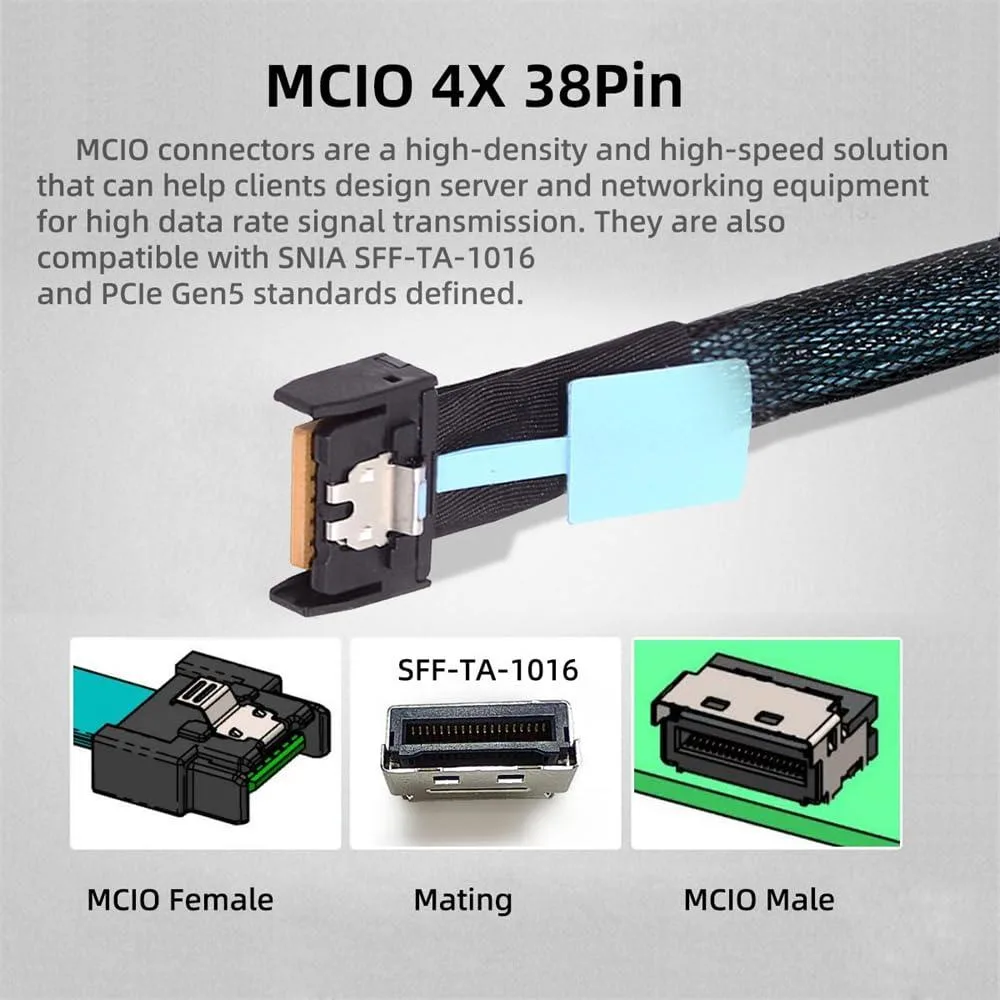

This Fervit adapter adds a Mini Cool Edge IO interface to a system through a PCIe 4x connection. It suits server and workstation builders who need to attach NVMe or SAS storage using MCIO cabling. The card works with PCIe 4.0 and 5.0 signalling. It is not for users who only have standard M.2 or U.2 ports on the motherboard.

4x PCIe lane requirement

The adapter transmits data over a four-lane PCI Express link. The host slot must provide a physical x4 or larger electrical connection running at PCIe 4.0 or 5.0 speeds. A slot limited to x1 or x2 bandwidth will restrict throughput. Builders without a spare four-lane slot cannot use this card.

Passive thermal profile

The board carries no active cooling and draws minimal power from the slot. In normal operation it adds negligible heat to the chassis airflow. Noise is limited to the system fans already present. No auxiliary power connector is required.

Highlights

  • Adds an MCIO port for PCIe 4.0 or 5.0 NVMe storage
  • Transmits 4x PCIe signals for high-speed data paths
  • Supports cable-to-board and card-to-board server links
  • Works with SAS, PCIe and Ethernet protocols
  • Expands the system with one MCIO female interface

Specifications

BrandFervit

Questions about this item

What does the PCIe 5.0 4x link deliver when this adapter is installed in a server?

The adapter passes a PCIe 5.0 4x signal to an MCIO connector, giving one NVMe or SAS device the full 4-lane bandwidth the slot provides.

Which interface standard does the MCIO connector follow and what does it limit?

The MCIO connector carries PCIe 5.0 4x, SAS or Ethernet protocols, capping the link at four lanes regardless of the cable or device attached.

What slot and space does this card need to fit?

It plugs into a standard PCIe slot and adds a single low-profile MCIO port, requiring only the bracket opening for the connector.
