Fervit PCI-E 4.0 4x Host Adapter to NVMe E1.S Carrier 5.9mm 8.0mm

Fervit PCIe 4.0 4x Host Adapter

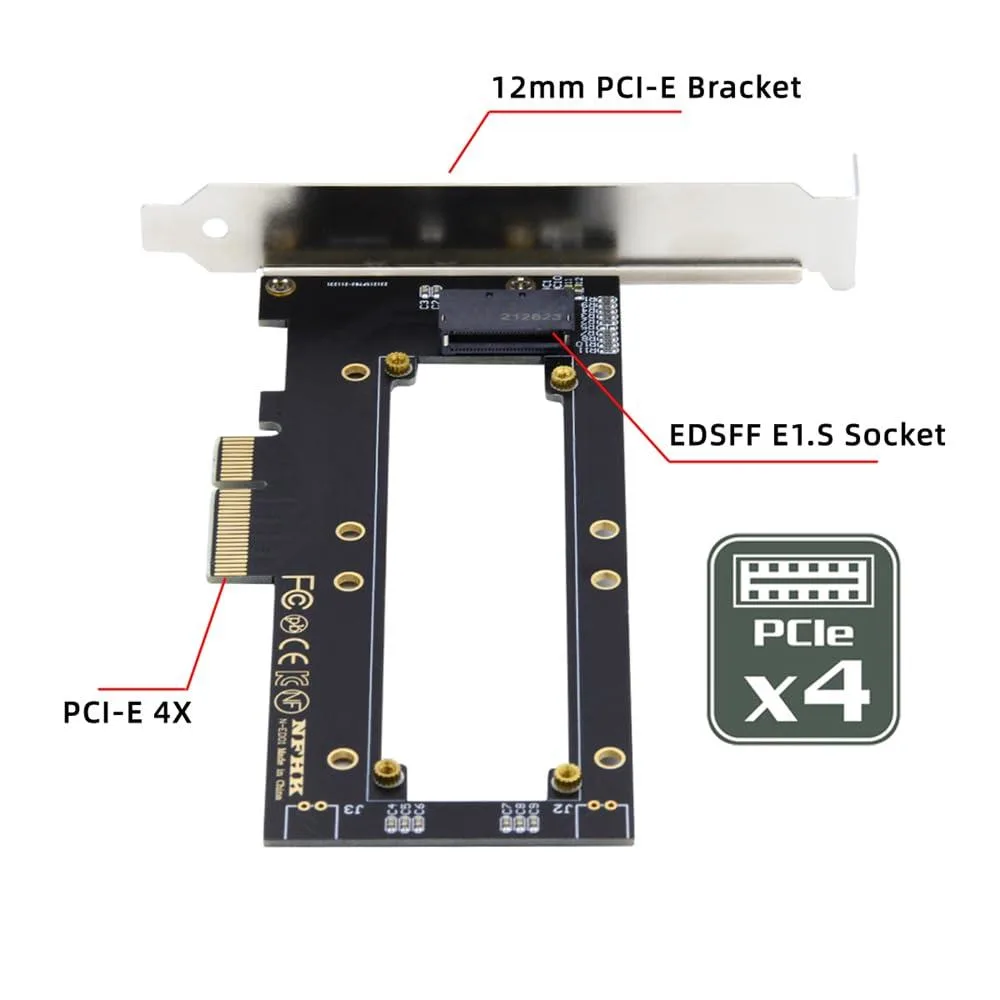

This adapter connects an EDSFF E1.S SSD to a PCIe 4.0 x4 slot inside a server, workstation or IoT platform. It requires no driver installation and works with current operating systems that support PCIe NVMe storage. The board includes both low-profile and full-height brackets for flexible mounting. It targets administrators who need to add ruler-format solid-state storage to standard expansion slots.

Upgrading from proprietary E1.S backplanes

The card replaces a dedicated E1.S backplane or chassis tray by exposing the drive through a regular PCIe 4.0 x4 connection. The jump makes sense when the host system has spare x4 slots but no native E1.S bays, letting you reuse existing ruler SSDs without a specialised enclosure. It is not suited for builds that need hot-plug carriers, dual-port redundancy or more than one E1.S device per slot.

Limits of the PCIe 4.0 x4 interface

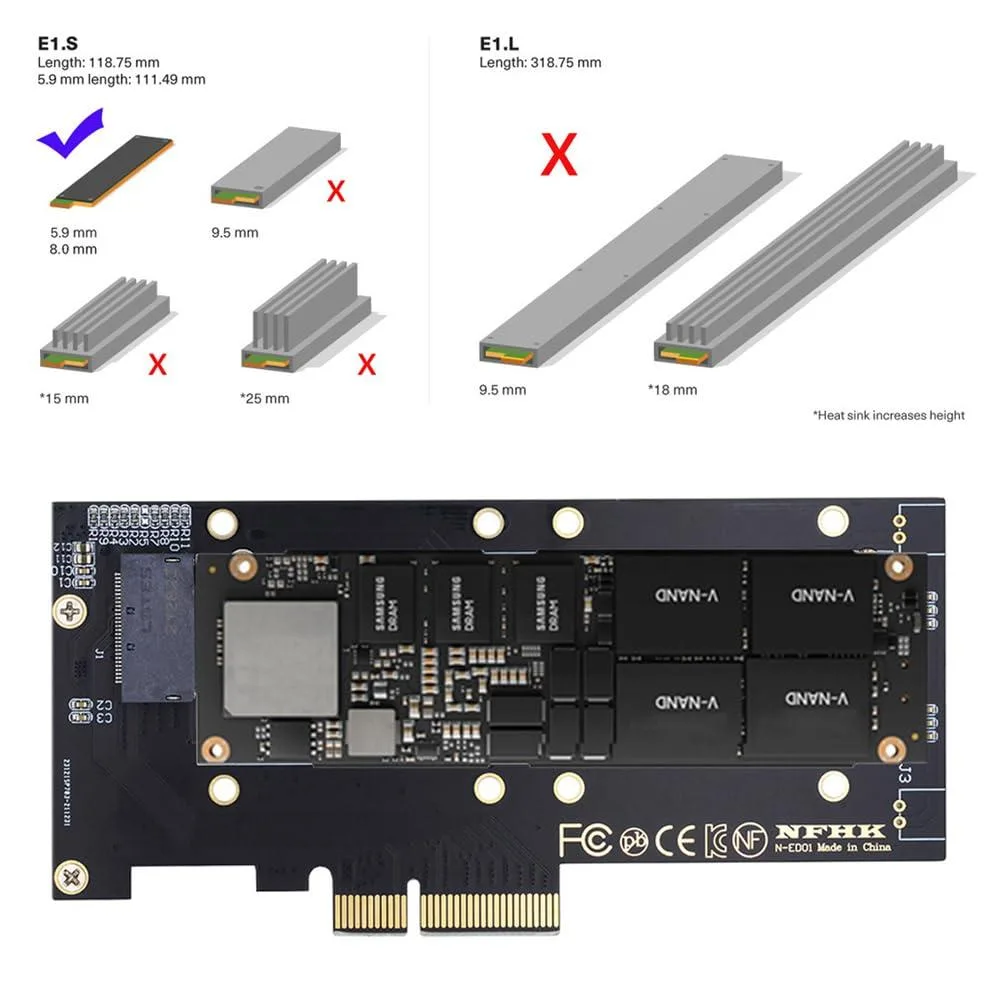

Bandwidth tops out at the PCIe 4.0 x4 electrical ceiling, so the drive cannot exceed that throughput regardless of its own speed rating. The adapter fits 5.9 mm and 8.0 mm thick E1.S modules without a heatsink, ruling out thicker drives or those requiring active cooling. No power-management signals beyond the slot are provided, so drive-side power-loss protection must be self-contained.
