Small green circuit board with M.2 slot and SATA data plus power connectors

Fervit

Fervit M.2 NGFF SATA to SATA Adapter 2280/2260/2242/2230 6Gbps

SKU CH-51ZB-F46F4

Converts M.2 NGFF SATA SSDs (2230, 2242, 2260, 2280) to a 7+15 pin SATA connection with up to 6 Gbps transfer speed

  • Converts NGFF SATA SSD to standard 7+15 pin SATA drive for extra storage
  • Fits M.2 2280, 2260, 2242 and 2230 SATA SSDs with B or B+M key
  • Delivers up to 6 Gbps transfer speed via SATA 3 interface
  • Ready to use after formatting new drives for system recognition
  • Built-in capacitors and LDO chip provide stable power to the SSD

M.2 SATA adapter for laptops and desktops

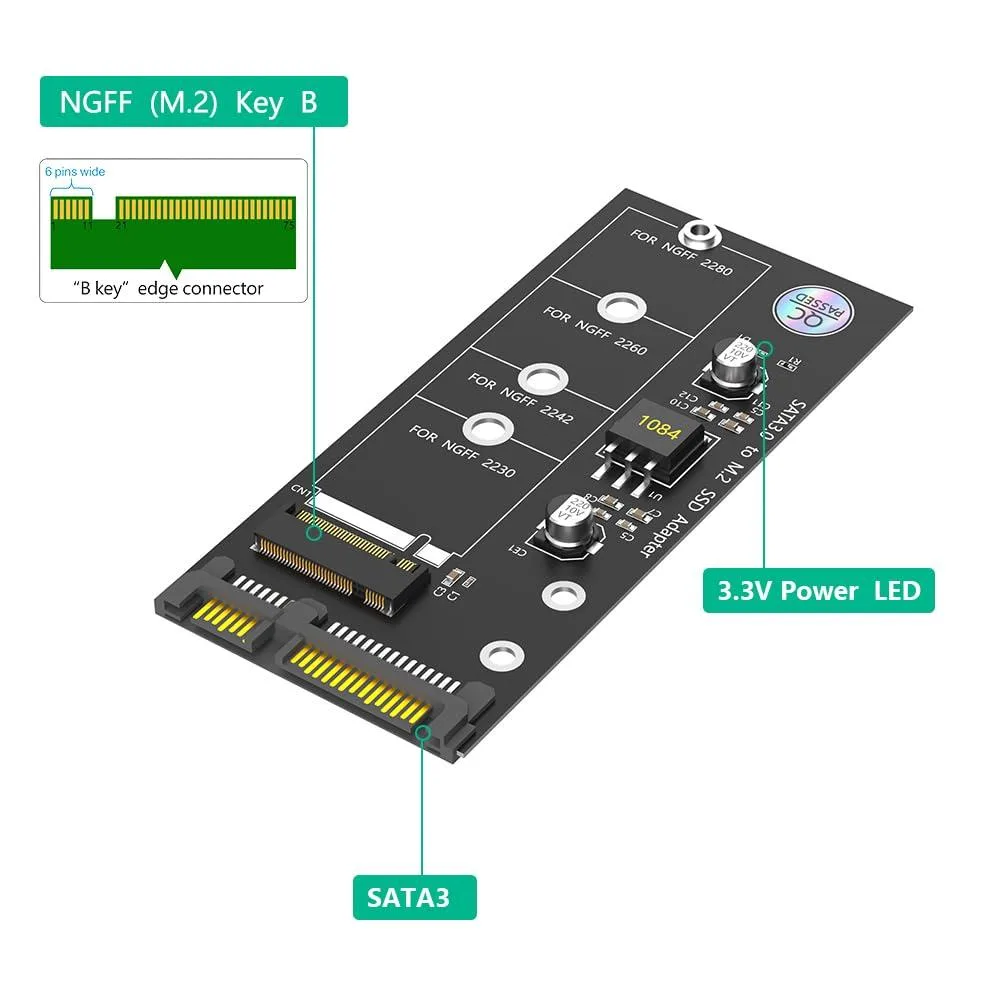

This adapter converts an M.2 NGFF SATA SSD with Key B or B+M into a standard 7+15 pin SATA drive. It fits 2230, 2242, 2260 and 2280 millimetre module lengths. The card adds extra storage to laptops or desktops without requiring an M.2 slot on the motherboard.

SATA 3 interface capped at 6 Gbps

The adapter runs at the SATA 3 maximum of 6 Gbps, so any connected SSD is limited to that throughput. It handles typical SATA SSD read and write workloads comfortably. Performance runs out when the drive itself saturates the 6 Gbps link or when the host controller cannot sustain the full rate.

Not compatible with PCIe NVMe drives

The card only accepts M.2 NGFF SATA protocol modules; it will not work with PCIe NVMe or AHCI Key M SSDs. Buyers who need to connect an NVMe drive must choose a different adapter. New SATA SSDs may require formatting before the system recognises them.

Highlights

  • Converts NGFF SATA SSD to standard 7+15 pin SATA drive for extra storage
  • Fits M.2 2280, 2260, 2242 and 2230 SATA SSDs with B or B+M key
  • Delivers up to 6 Gbps transfer speed via SATA 3 interface
  • Ready to use after formatting new drives for system recognition
  • Built-in capacitors and LDO chip provide stable power to the SSD

Specifications

BrandFervit

Questions about this item

Will this adapter let me use a 2280 M.2 NGFF SATA SSD in a laptop that only has a 2.5-inch SATA bay?

Yes, the adapter converts a 2280, 2260, 2242 or 2230 M.2 NGFF SATA SSD to a standard 7+15 pin SATA connection that fits a 2.5-inch drive bay.

How can I confirm the adapter is working at the full 6 Gbps SATA 3 rate after installation?

Check the negotiated link speed in your BIOS or OS disk utility; it should show 6 Gbps when the drive and host controller both support SATA 3.

Does the package include mounting screws for the M.2 SSD or a 2.5-inch bracket, or do I need to buy them separately?

The adapter board is supplied alone; you will need to provide your own M.2 mounting screw and any 2.5-inch drive bracket or caddy required by your chassis.
