Fervit 90° Left Angled USB B Male to Female Panel Mount Cable 50cm 28AWG
A 90-degree left-angled USB B male connector joins a panel-mount female port with screws, using 28AWG braided cable over 50cm
- Left-angled male connector clears tight rear ports

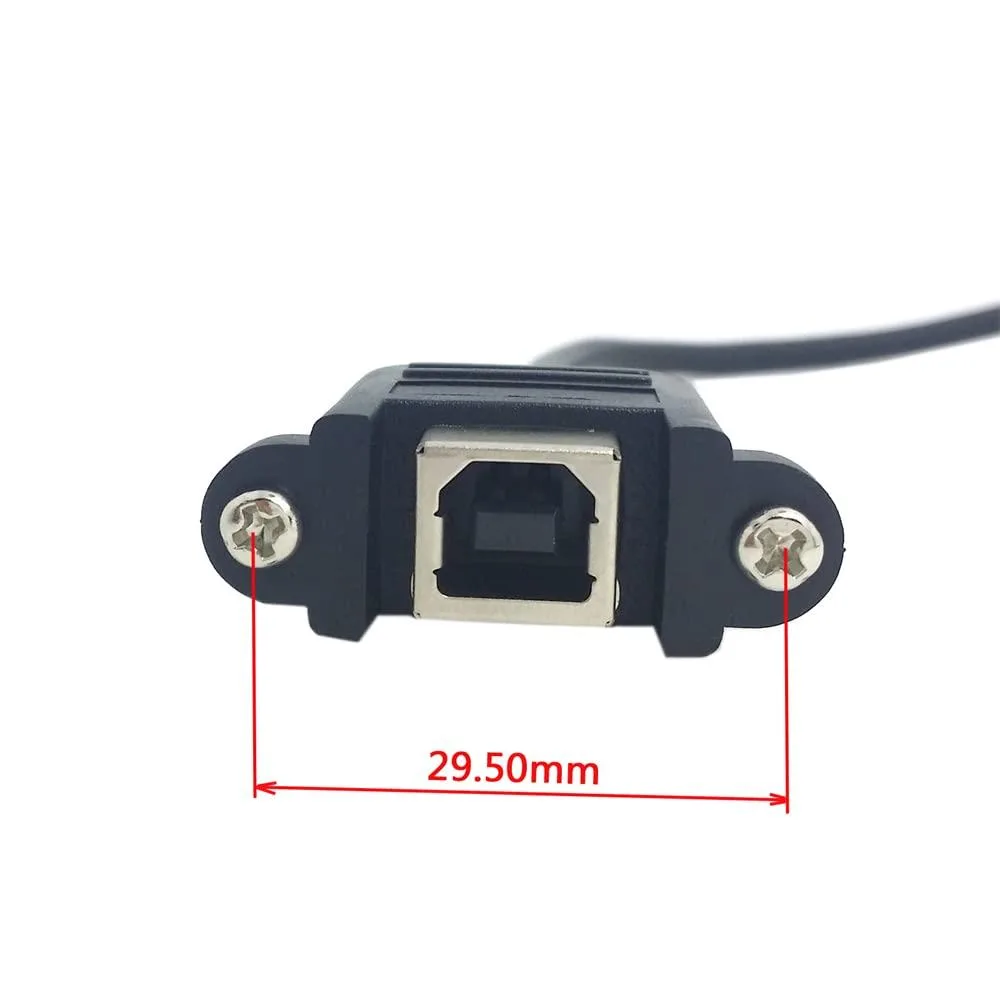

- Panel-mount female end secures with screws for fixed installations
- 50 cm length keeps internal routing tidy
- 28 AWG conductors with braid shield reduce signal loss
- 90 degree bend protects cable from strain at the panel
Cable purpose and fit
This 90 degree left angled USB B male to female extension cable provides a panel mount connection for devices needing a secure bulkhead interface. The 50cm length suits internal routing in enclosures or short external runs where a straight connector would protrude too far. It is intended for technicians and integrators who need a reliable panel mounted USB B port with screw fixation.
Check before ordering
Verify that the host side accepts a standard USB B male plug and that the 90 degree left angle orientation matches the required cable exit direction. Ensure the panel cutout accommodates the female USB B connector with its screw mounting holes. The 28AWG braided cable is designed for data signalling, so confirm the connected equipment operates within standard USB B electrical limits.
Build integration
The panel mount female end secures to a chassis or bracket with screws, freeing the internal space that a loose cable would occupy. The right angled male plug hugs the host port closely, reducing strain on the receptacle and clearing adjacent slots or components. Braided shielding on the 28AWG conductors helps maintain signal integrity in electrically noisy environments.
Highlights
- Left-angled male connector clears tight rear ports
- Panel-mount female end secures with screws for fixed installations
- 50 cm length keeps internal routing tidy
- 28 AWG conductors with braid shield reduce signal loss
- 90 degree bend protects cable from strain at the panel
Specifications
| Brand | Fervit |
|---|
Questions about this item
Does the 50 cm cable include the panel-mount USB B female connector with screws, or must that be purchased separately?
The 50 cm assembly already has a panel-mount USB B female with screws on one end and a 90 degree left angled USB B male on the other, so nothing extra is required for a standard panel installation.
Should I choose a different cable length or gauge for a tighter bend radius behind the panel?
This model is only offered in a 50 cm length with 28 AWG braided conductors; the 90 degree left angle on the male plug is designed to reduce strain in tight spaces behind the panel.
What does the 90 degree left angle on the male USB B plug actually do once the cable is mounted in a machine?
The 90 degree left angle routes the cable parallel to the panel surface instead of straight out, keeping the 50 cm run close to the chassis and preventing the connector from protruding into adjacent bays or airflow paths.
