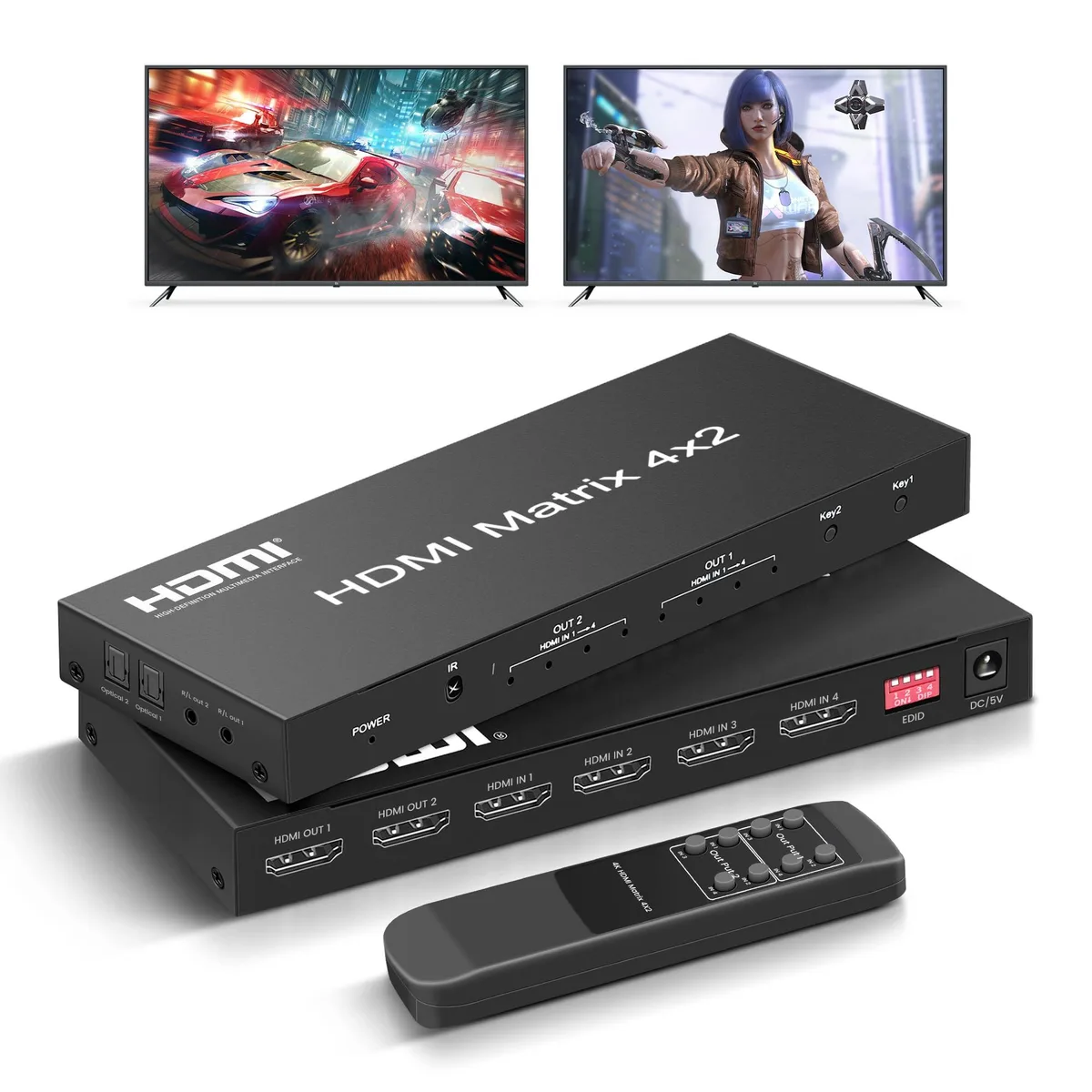

Black rectangular HDMI matrix switch with multiple ports and IR sensor

FERRISA YYG-E-1 4x2 HDMI Matrix Switch Black

SKU CH-XA7B-3K4P6

A 4×2 HDMI matrix routes four sources to two displays up to 4K at 30 Hz with optical and 3.5 mm audio extraction, EDID control and IR remote switching

  • TypeHDMI
  • Changer TypeHDMI
  • ColorBlack
  • Ports6
  • Cable Length1
  • Input Connector6
  • 4 HDMI sources switch to 2 displays via 4×2 matrix
  • Ultra HD 4K and 3D 1080P video at 30 Hz with 3.4 Gbps bandwidth
  • Optical and 3.5 mm audio extract LPCM or 5.1 Dolby Digital sound
  • Smart EDID management prevents signal loss and matches display capabilities
  • IR remote and front button give instant input switching control

4x2 HDMI Matrix for Multi-Source Setups

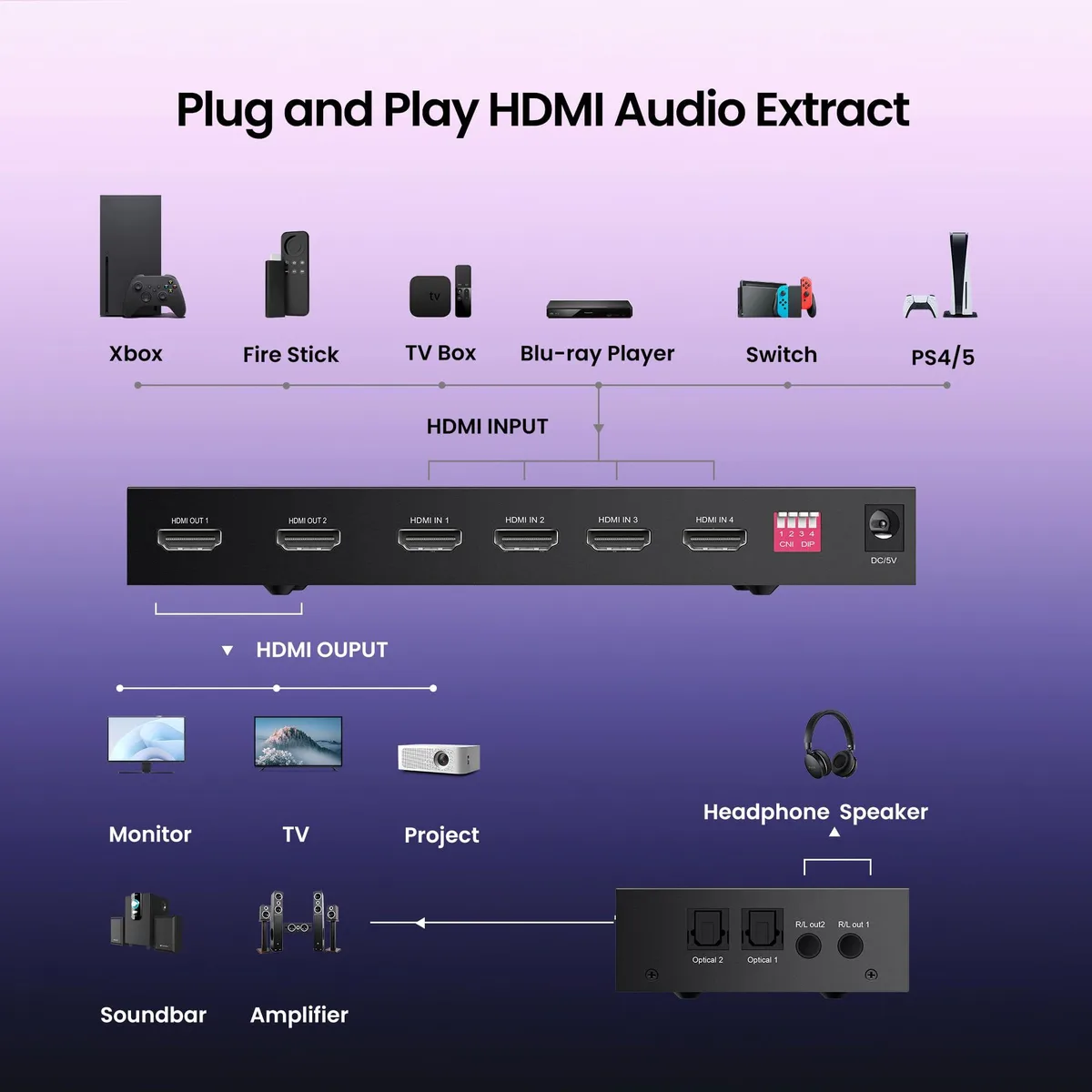

The FERRISA YYG-E-1 routes four HDMI sources to two displays with independent optical and 3.5 mm audio extraction. It suits home theatres, offices, classrooms or digital-signage installations where several devices share a pair of screens.

Plug-and-Play with IR and EDID Controls

Connect sources and displays, then switch via front-panel buttons or the included IR remote. Use the EDID toggle if a screen flickers or shows no signal. A high-quality HDMI cable and matching resolution on both outputs prevent most handshake issues.

Verify Source Limits and Audio Formats Before Buying

All active outputs must share the same resolution; the unit cannot show 4K on one screen and 1080P on the other simultaneously. Audio extraction supports LPCM and DTS 5.1 but not Dolby DD, DD+ or Vision, so confirm your source devices can output a compatible format.

Highlights

  • 4 HDMI sources switch to 2 displays via 4×2 matrix
  • Ultra HD 4K and 3D 1080P video at 30 Hz with 3.4 Gbps bandwidth
  • Optical and 3.5 mm audio extract LPCM or 5.1 Dolby Digital sound
  • Smart EDID management prevents signal loss and matches display capabilities
  • IR remote and front button give instant input switching control

Specifications

BrandFERRISA
ModelYYG-E-1
Part NumberYYG-E-1
TypeHDMI
Changer TypeHDMI
ColorBlack
Ports6
Cable Length1
Input Connector6
Output ConnectorFemale
Maximum ResolutionsHDMI Matrix Switch 4X2
Weight0.549 kilograms

Questions about this item

How can I confirm the 4K 30 Hz signal is passing correctly to both displays after setup?

Check that both connected monitors show the same 4K 30 Hz resolution without flicker; the matrix only outputs identical resolution on both outputs simultaneously.

Which cables and audio gear are included versus what I must provide for the 4×2 matrix?

The unit includes the matrix, IR remote and a 1 m cable; you must supply four HDMI source cables, two HDMI display cables, optical or 3.5 mm audio cables and AAA batteries for the remote.

Should I choose this 4×2 model or a different version for two 1080p projectors with 5.1 audio extraction?

This 4×2 model supports 1080p 3D, 5.1-channel LPCM or DTS via optical and 3.5 mm outputs, and mirrors or switches four sources across two projectors.
