Axial case fan in cylindrical metal housing, 230V AC, 30W

Fans

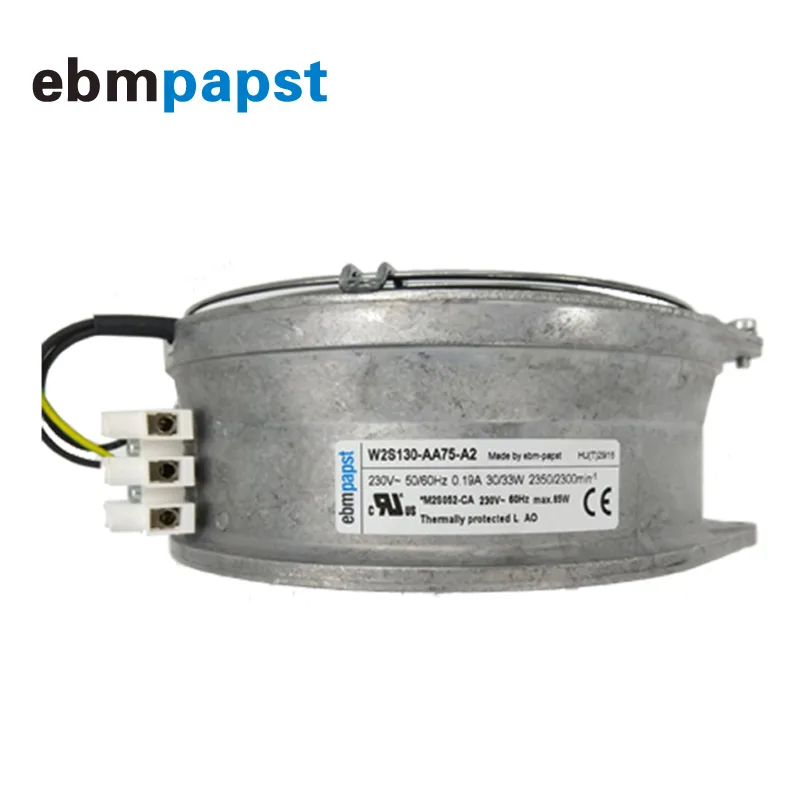

Fans W2S130-AA75-A2 230V 30W 0.19A Axial case fan

SKU CH-GRGV-7VYXH

Axial case fan moves air through enclosures at 230 V AC, drawing 0.19 A and 30 W at 50 Hz or 33 W at 60 Hz

  • 230 V AC operation suits industrial cabinets
  • 30 W power draw keeps energy costs low
  • CE and UL 2111 approvals confirm safety compliance
  • Runs from -25 °C to 80 °C for harsh environments
  • 2 350 rpm at 50 Hz delivers strong axial airflow

230 V AC axial case fan

The Fans W2S130-AA75-A2 is a tube-mounted axial fan that runs directly from 230 V mains at 50 or 60 Hz. It draws 0.19 A and consumes 30 W at 50 Hz or 33 W at 60 Hz while spinning at 2350 rpm and 2300 rpm respectively. The motor carries CE and UL 2111 approval and is rated for continuous operation between -25 °C and 80 °C.

Suited for cabinet and rack cooling

This unit fits builders who need a compact AC axial fan for Rittal-style cabinets, industrial enclosures or server racks where a 230 V supply is already present. It is not for PC builders who require a 12 V or 24 V PWM fan that connects to a motherboard header, nor for anyone who needs variable-speed control via a standard four-pin connector.

230 V nominal voltage decides compatibility

The single specification that determines fit is the 230 V AC nominal voltage combined with the fixed 50/60 Hz frequency. If the target enclosure only provides low-voltage DC power or expects a PWM signal for speed regulation, this fan will not work without an external power supply and controller.

Highlights

  • 230 V AC operation suits industrial cabinets
  • 30 W power draw keeps energy costs low
  • CE and UL 2111 approvals confirm safety compliance
  • Runs from -25 °C to 80 °C for harsh environments
  • 2 350 rpm at 50 Hz delivers strong axial airflow

Specifications

No published specifications for this item yet.

Questions about this item

What is the maximum ambient temperature the W2S130-AA75-A2 can withstand before it overheats?

The fan is rated for a maximum ambient temperature of 85 °C at 60 Hz and 80 °C at 50 Hz, so it can operate in very warm enclosures without thermal shutdown.

How much power does the fan draw when running continuously at 230 V?

At 50 Hz it consumes 30 W and draws 0.19 A; at 60 Hz the figures rise to 33 W while the current stays at 0.19 A.

What voltage supply must already be present in the cabinet for this fan to work?

The unit requires a single-phase 230 V AC supply at either 50 Hz or 60 Hz, matching standard European mains.
