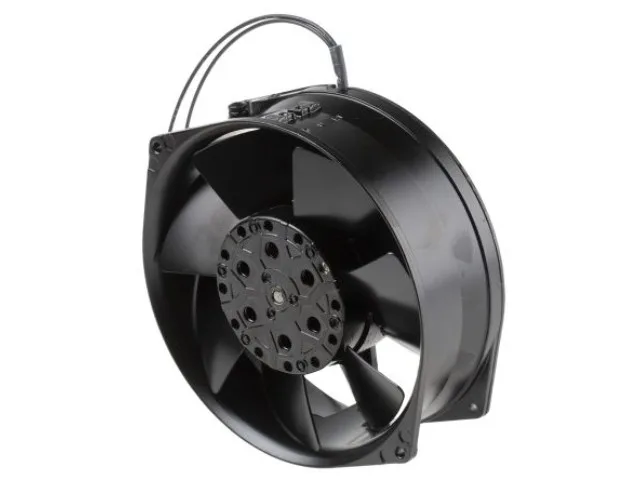

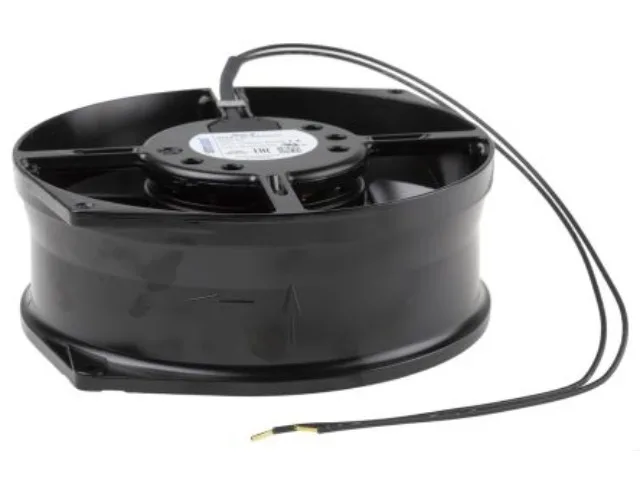

Metal case fan 172 by 150 by 55 mm with screw holes 162 mm apart

Fans

Fans W2S130-AA03-21 230V 45W metal case fan

SKU CH-6FY2-TANQ4

A 230 V AC metal case fan delivering 380 m³/h airflow at 2700 rpm with a 40,000-hour service life

  • 230 VAC operation suits industrial and rail power systems
  • 380 m³/h airflow cools medical and drive enclosures effectively
  • Maintenance-free double ball bearings run 40 000 hours continuously
  • Full metal housing withstands -25 °C to +50 °C ambient range
  • 60 dB noise level fits supermarket and hotel environments

Industrial AC axial fan for 230 V systems

This 172 mm by 150 mm metal-cased fan runs directly from 230 VAC mains at 50 or 60 Hz. It delivers up to 380 cubic metres of air per hour at 2700 rpm while drawing 45 watts. The unit is built for continuous duty in industrial, medical, rail and HVAC equipment that demand high-temperature resilience.

Mains-voltage operation fixes airflow at line

Because the motor is tied to 50 or 60 Hz supply, speed and airflow cannot be PWM-controlled or voltage-regulated like a DC fan. Acoustic output is a fixed 60 dB and maximum static pressure tops out at 130 Pa. Installers must size ducting and clearances for these constant performance figures.

40 000-hour rated life at up to 50 °C ambient

The maintenance-free double ball bearing is qualified for 40 000 hours of non-stop operation across a -25 °C to +50 °C range. That endurance figure is the decisive spec for buyers specifying replacement intervals in sealed enclosures or hard-to-reach chassis.

Highlights

  • 230 VAC operation suits industrial and rail power systems
  • 380 m³/h airflow cools medical and drive enclosures effectively
  • Maintenance-free double ball bearings run 40 000 hours continuously
  • Full metal housing withstands -25 °C to +50 °C ambient range
  • 60 dB noise level fits supermarket and hotel environments

Specifications

No published specifications for this item yet.

Questions about this item

Should I pick the 45 W or the 39 W version of the W2S130-AA03-21?

The same unit draws 45 W at 50 Hz and 39 W at 60 Hz; choose based on your local mains frequency.

What does the 380 m3/h airflow figure mean once the fan is installed?

It is the maximum free-air volume the fan can move at 2700 rpm; actual flow will be lower once grilles, filters or ducting add resistance.

How does the 230 V AC supply cap the fan's performance?

The motor is designed for 230 VAC at 50/60 Hz, fixing the speed at 2700 rpm and limiting peak power to 45 W regardless of load.
