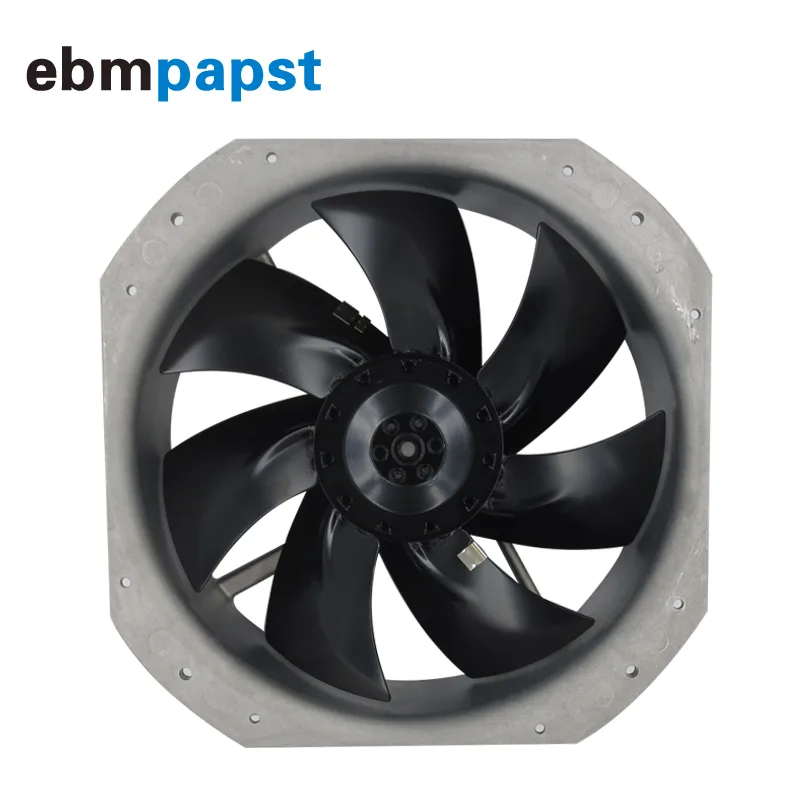

Silver metal axial fan with circular frame and black blades, 280 by 280 by 80 mm

Fans

Fans W2E250-HL06-01 230V 127W axial case fan

SKU CH-ACSH-YG248

230 V AC axial case fan with die-cast aluminium housing, motor stall protection and up to 35000 m³/h airflow

  • Runs at 50 Hz and 60 Hz for flexible deployment
  • 127 W power draw at 230 V AC for strong airflow
  • Die-cast aluminium housing resists corrosion and vibration
  • Motor stall protection prevents damage during overload
  • Capable of up to 35000 m³/h airflow for demanding cooling

Compact 280 mm axial fan for industrial airflow

The ebm-papst W2E250-HL06-01 is a 230 V AC axial case fan built for forced electronic cooling in rack or enclosure builds. Its die-cast aluminium housing and external rotor motor deliver up to 35000 m³/h airflow while operating at 50 Hz or 60 Hz. The fan suits integrators who need reliable, high-volume air movement in a compact 280 x 280 x 80 mm frame.

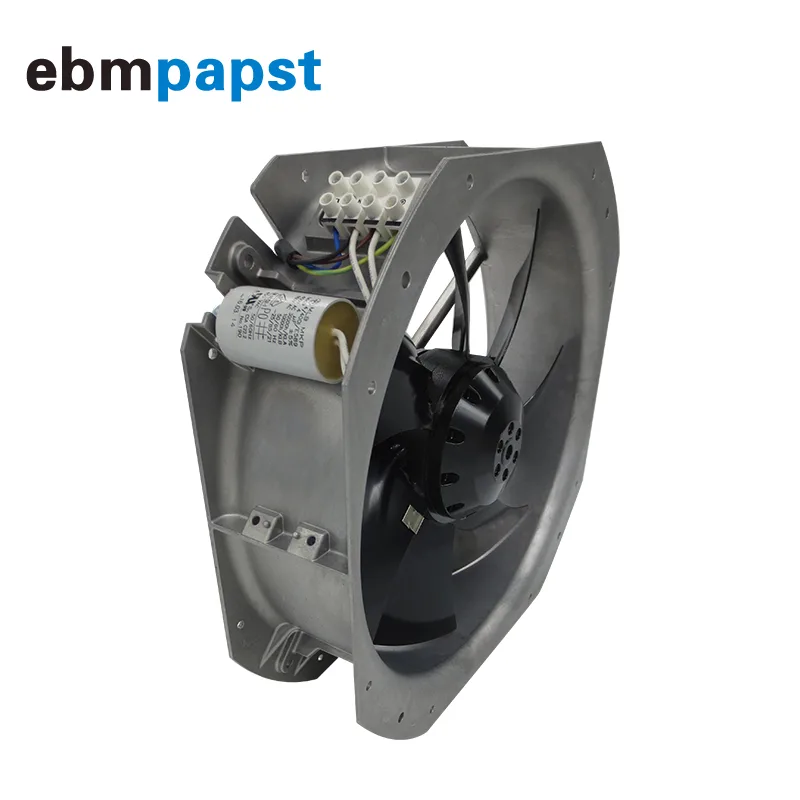

Terminal power connection

The unit connects via screw terminals and includes a 4 µF 400 VDB capacitor for single-phase 230 V operation. Motor stall protection guards against overload, while the 100 Pa maximum back pressure rating shows it can push air through restrictive filter banks or dense heatsink arrays. No PWM header or motherboard header is present, so speed control requires an external analog or serial interface.

Supplied capacitor enables immediate start-up

A matched 4 µF run capacitor is included, removing the need to source a separate component and ensuring correct phase shift for the 127 W / 180 W motor. The fan draws 0.56 A at 50 Hz and 0.79 A at 60 Hz, with a starting current of 0.88 A / 0.87 A respectively. Builders who need variable-speed operation must add their own 0–10 V or serial controller; the fan itself provides no onboard speed regulation.

Highlights

  • Runs at 50 Hz and 60 Hz for flexible deployment
  • 127 W power draw at 230 V AC for strong airflow
  • Die-cast aluminium housing resists corrosion and vibration
  • Motor stall protection prevents damage during overload
  • Capable of up to 35000 m³/h airflow for demanding cooling

Specifications

No published specifications for this item yet.

Questions about this item

What is the maximum ambient temperature this 230 V axial fan can withstand during continuous operation?

The fan is rated for a maximum ambient temperature of 60 °C at 50 Hz and 45 °C at 60 Hz, so sustained all-day running must stay within those limits.

How much power and current does the fan draw when running continuously at 230 V?

At 50 Hz it consumes 127 W and draws 0.56 A; at 60 Hz consumption rises to 180 W with 0.79 A current draw.

What external capacitor is required for this AC axial fan to operate?

A 4 µF capacitor rated at 400 V DB to the S0 (CE) standard must be supplied separately for the motor to start and run.
