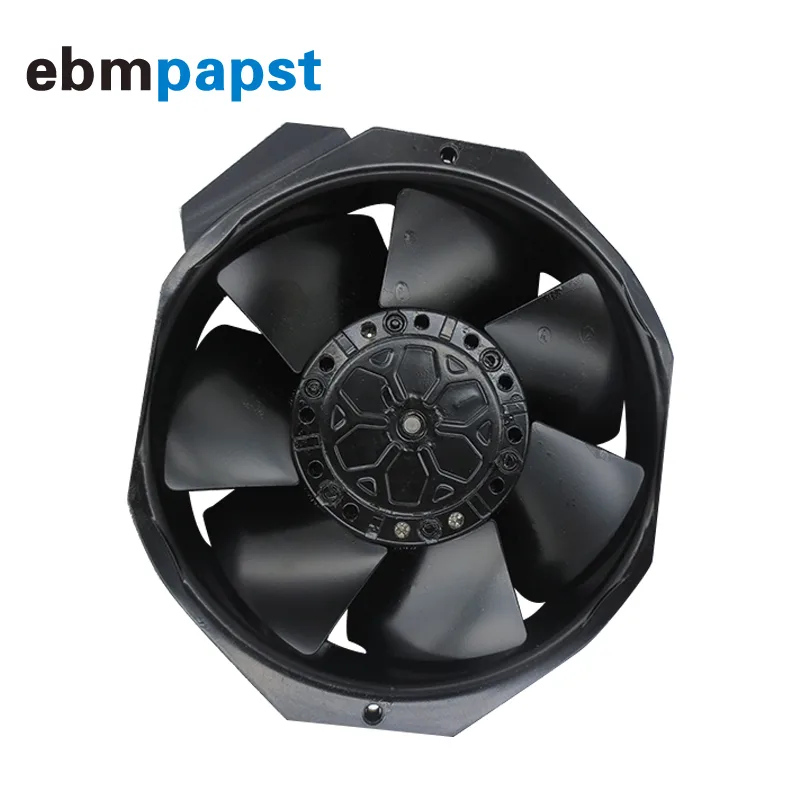

ebmpapst W2E142 AC axial fan 172x150x38 mm metal housing 230V 27W

Fans

Fans W2E142-BB01-01 230V 27W 172*150*38MM case fan

SKU CH-F4KH-XXHPZ

Axial AC fan kit with metal enclosure, IP20 protection and 610 mm leads for 230 V operation

  • 230 V AC operation suits industrial power supplies
  • 27 W draw at 50 Hz keeps energy costs low
  • 2 800 rpm delivers strong airflow for cooling
  • IP20 metal enclosure protects internal components
  • 610 mm leads simplify cabinet wiring

Compact AC fan kit for 230 V systems

The EBM-Papst W2E142 series delivers a complete axial cooling solution in a metal enclosure measuring 172 by 150 by 38 mm. It operates on single-phase 230 VAC at 50 or 60 Hz, drawing 0.12 A at 27 W or 0.13 A at 28 W. The motor runs at 2800 rpm on 50 Hz and 3350 rpm on 60 Hz, with an IP20 protection rating and a 1 µF 400 VDB capacitor included.

Simple mains wiring with fixed leads

The fan kit ships with 610 mm power leads for direct connection to 230 VAC supply. Installation requires only standard mains wiring practices and secure mounting of the metal housing. The unit is rated for ambient temperatures from -25 °C up to 55 °C at 50 Hz and 65 °C at 60 Hz. No speed control or PWM interface is provided, so the fan runs at full speed whenever powered.

Verify voltage, frequency and mounting space

Confirm the installation site supplies 230 VAC single-phase power at either 50 Hz or 60 Hz. Ensure the 172 by 150 mm footprint with 38 mm depth fits the intended enclosure and that the IP20 rating matches the environmental protection required. The kit includes a metal shield; an air filter option is mentioned in the series but not confirmed for this specific unit. Buyers needing variable speed control or lower voltage operation should consider other products.

Highlights

  • 230 V AC operation suits industrial power supplies
  • 27 W draw at 50 Hz keeps energy costs low
  • 2 800 rpm delivers strong airflow for cooling
  • IP20 metal enclosure protects internal components
  • 610 mm leads simplify cabinet wiring

Specifications

No published specifications for this item yet.

Questions about this item

How can I confirm the fan is running at the correct speed after installation?

Measure the rotational speed; it should read 2800 rpm at 50 Hz or 3350 rpm at 60 Hz, with a current draw of 0.12 A or 0.13 A respectively.

What components are included and what must I source separately?

The kit includes the axial fan in a metal enclosure with 610 mm power leads and either a metal shield or air filter; a 1 µF 400 V capacitor is required and must be purchased separately.

Which voltage version should I select for a 230 V supply?

Choose the 230 VAC model listed; it operates at both 50 Hz and 60 Hz, drawing 27 W at 50 Hz and 28 W at 60 Hz.
