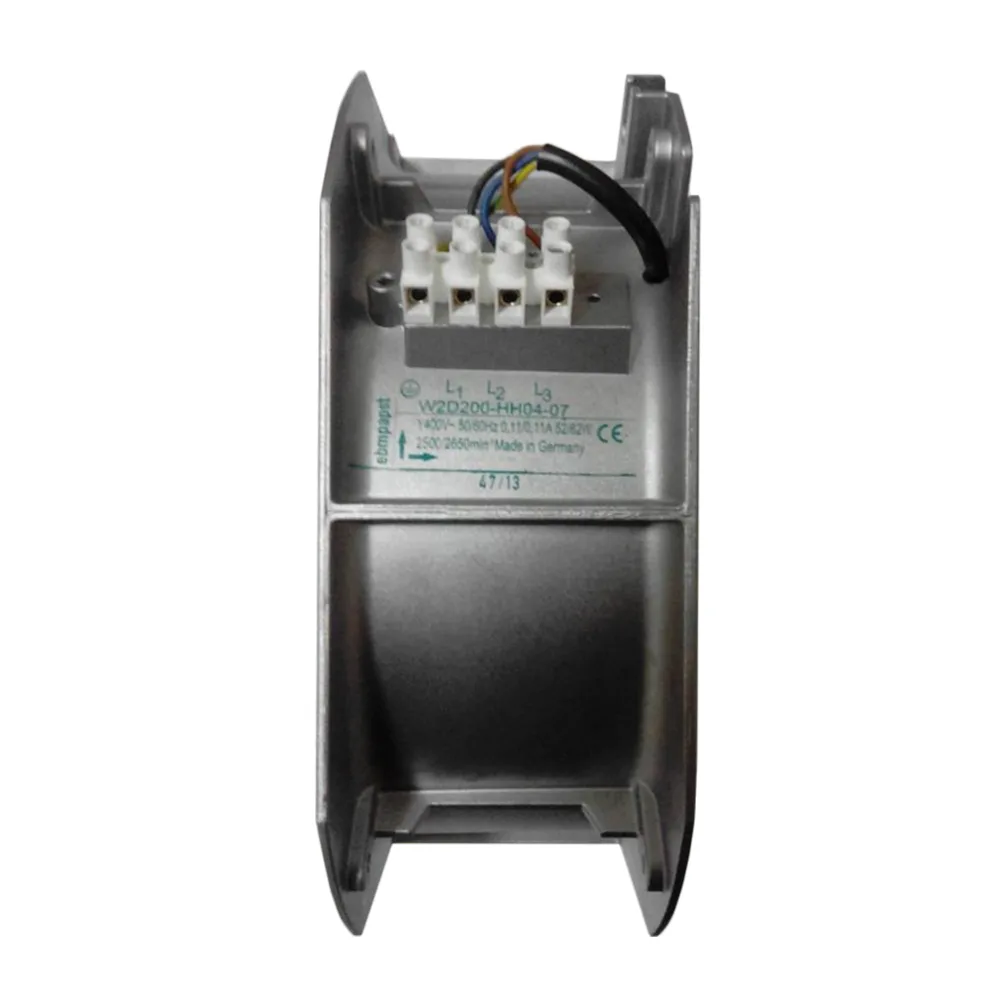

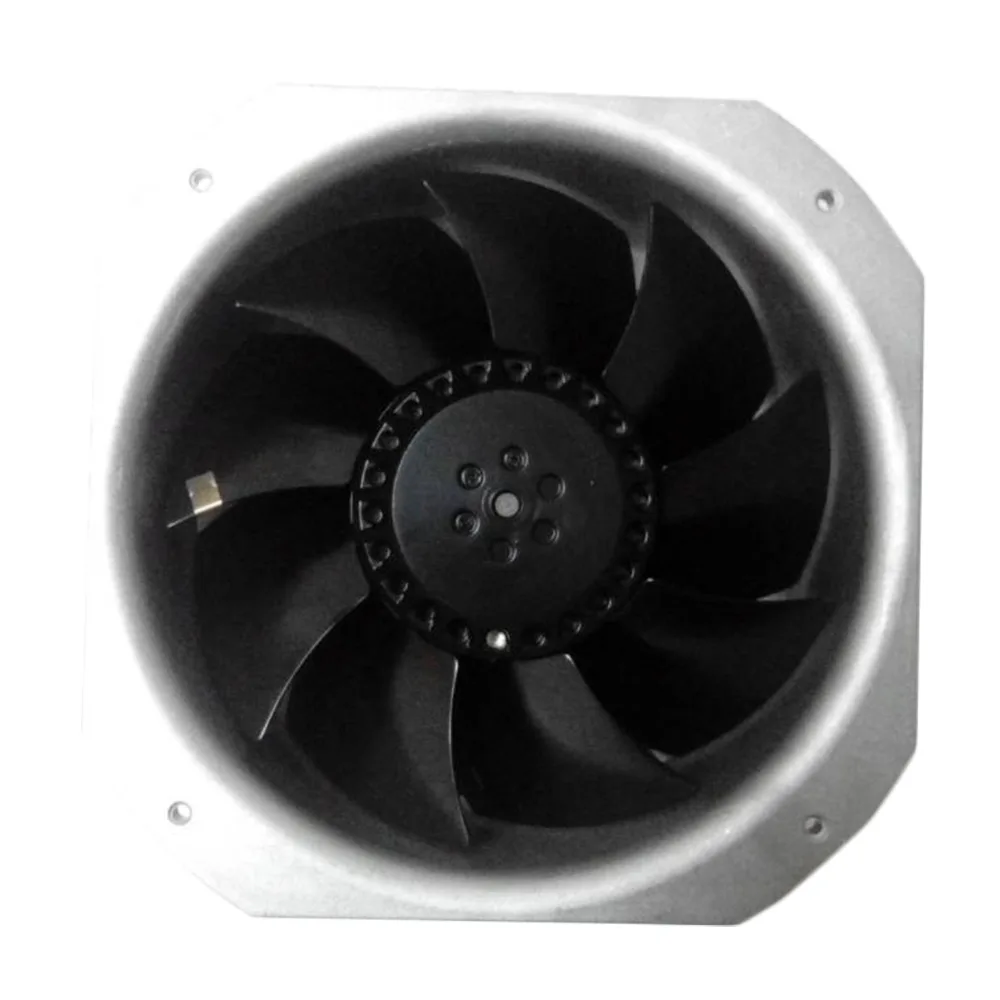

ebmpapst W2D200-HH04-07 axial fan 225x80mm 400V three-phase

Fans

Fans W2D200-HH04-07 ebmpapst 400V 225x80 high temperature case fan

SKU CH-00KY-D6VE9

Three-phase 400 V axial fan with thermal overload protection runs at 2500 rpm on 50 Hz or 2650 rpm on 60 Hz

  • High-temperature operation up to 80°C
  • Three-phase 400 VAC motor runs at 2500–2650 rpm
  • Low 0.11 A current draw saves energy
  • Built-in thermal overload protector prevents damage
  • CE certified for safety compliance

400 V AC axial case fan

This axial fan runs directly from 400 V AC three-phase mains at 50 Hz or 60 Hz. It measures 225 mm by 80 mm and is rated for continuous operation up to 80 °C ambient temperature. Thermal overload protection is built into the motor. The unit is supplied new.

Suited for industrial enclosures needing

It suits integrators who require a 400 V AC fan that can withstand 80 °C surroundings and provides 2 650 rpm at 60 Hz. It is not for builders who need a DC voltage fan, a PWM speed signal, or a different frame size. The 52 W to 62 W power draw and 0.11 A current are fixed by the motor design.

400 V AC nominal voltage

The single specification that decides fit is the 400 V AC three-phase nominal voltage. If the installation cannot supply 400 V AC at 50 Hz or 60 Hz, this fan will not operate. All other ratings derive from that supply.

Highlights

  • High-temperature operation up to 80°C
  • Three-phase 400 VAC motor runs at 2500–2650 rpm
  • Low 0.11 A current draw saves energy
  • Built-in thermal overload protector prevents damage
  • CE certified for safety compliance

Specifications

No published specifications for this item yet.

Questions about this item

Will the 400 V three-phase motor run safely on my existing 50 Hz industrial supply?

Yes, the motor is rated for 400 V three-phase at 50 Hz with a nominal current of 0.11 A and power draw of 52 W.

How can I confirm the fan is operating correctly once installed?

Measure the speed; it should read about 2500 rpm at 50 Hz and the current draw should stay near 0.11 A.

What comes in the box and do I need any extra parts?

The fan unit itself is supplied; mounting hardware, wiring harnesses and any required inverter are not included.
