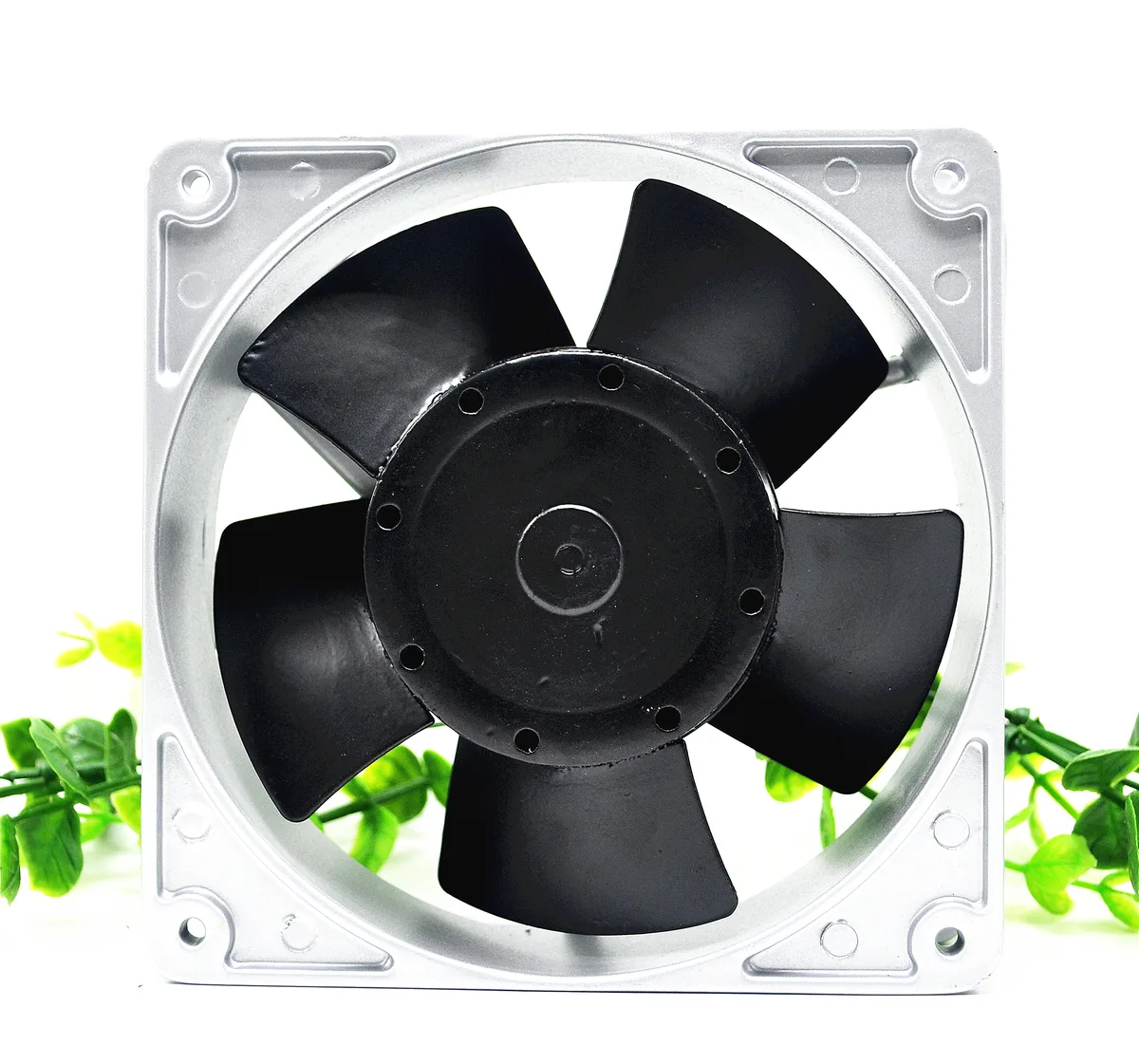

Black 120mm square axial case fan 38mm deep with black blades and silver centre hub

Fans

Fans UP12D10Size 120mm 100V 0.16A case fan

SKU CH-K7F2-MTM65 MPN UP12D10Size

120 mm axial fan delivers 55-60 CFM airflow at 2700 RPM for 100 V AC systems

  • Air Flow55-60 CFM
  • Delivers 55-60 CFM airflow for effective cooling
  • Operates at 100V AC with 0.16A current draw
  • Spins at 2700 RPM to move air efficiently
  • Compact 120 x 120 x 38mm frame fits tight spaces
  • Axial design provides low-noise heat exchange performance

120 mm 100 V AC axial fan

This 120 mm axial fan runs on 100 V AC power and draws 0.16 A. It delivers 55-60 CFM of airflow at 2700 RPM. The frame measures 120 x 120 x 38 mm. It is suited for industrial equipment, medical devices, rail vehicles and electronic enclosures that require forced-air cooling.

AC mains voltage limits portability

The fan requires a 100 V AC supply and cannot operate from a standard PC 12 V DC header. Wiring must follow mains-voltage safety practices and local electrical codes. It is not designed for direct connection to a motherboard fan controller or a typical ATX power supply.

0.16 A current draw at 100 V

At 0.16 A the fan consumes roughly 16 W on the high-speed setting and 15 W on the low setting. This single figure determines the circuit capacity and fuse rating needed for safe installation. Buyers who need a fan powered by a 12 V DC source cannot use this model.

Highlights

  • Delivers 55-60 CFM airflow for effective cooling
  • Operates at 100V AC with 0.16A current draw
  • Spins at 2700 RPM to move air efficiently
  • Compact 120 x 120 x 38mm frame fits tight spaces
  • Axial design provides low-noise heat exchange performance

Specifications

Air Flow55-60 CFM

Questions about this item

Should I choose the 100 V or a different voltage version of the UP12D10Size fan?

This model is rated for 100 V AC operation. Verify your system supply voltage before ordering.

What does the 55-60 CFM airflow mean once the fan is installed in a case?

It indicates the fan can move 55 to 60 cubic feet of air per minute at free-air conditions; actual flow will be lower with filters or restricted grilles.

The fan uses a 100 V AC interface — what does that cap in practice?

The AC supply limits the fan to fixed-speed operation at 2700 RPM; speed cannot be controlled by a motherboard PWM header.
