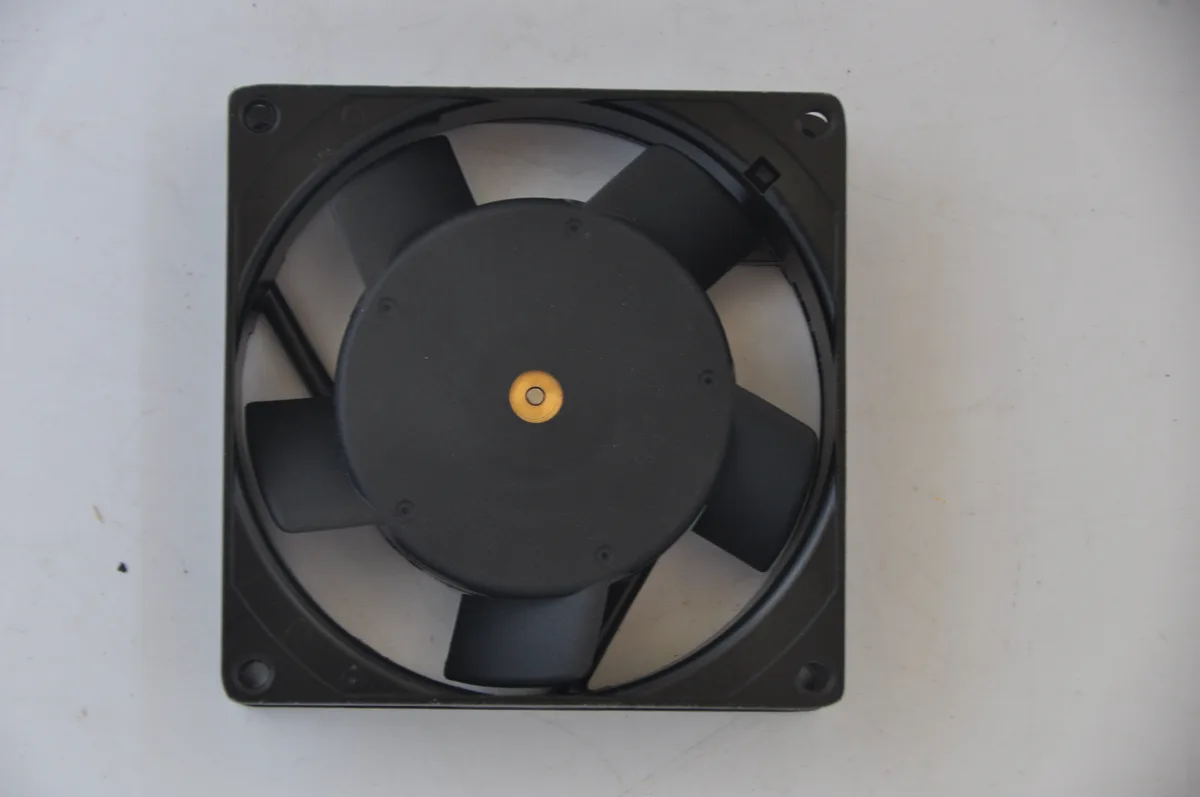

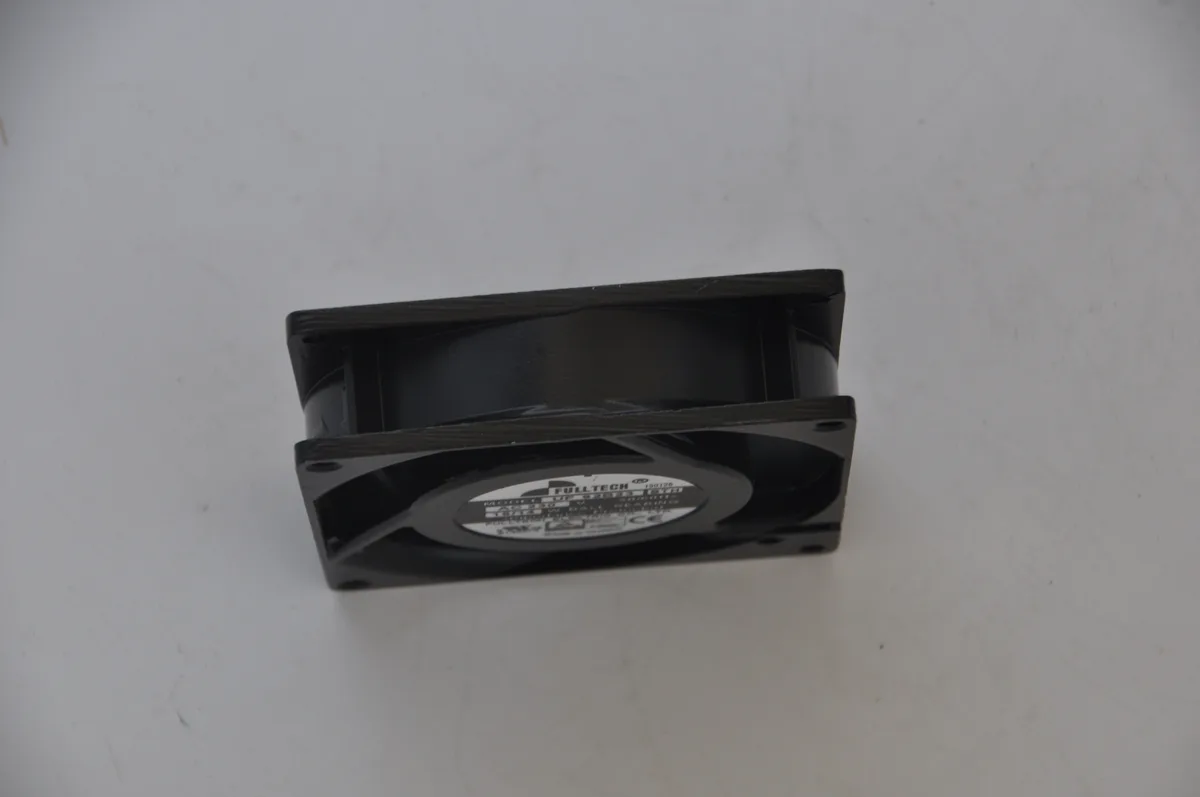

Square 92mm metal frame fan with black plastic blades, 25mm thick, 230V AC power input

Fans

Fans UF-92B23 BTH 230V 16W 92mm case fan

SKU CH-QAX1-WFQ3Z

A 92 mm AC case fan running on 230 V mains, delivering up to 40 CFM at 36 dB with a double ball bearing rated for 40,000 hours

  • 92 mm frame fits standard case mounts
  • 230 V AC supply runs straight from mains power
  • Double ball bearing rated for 40 000 hours at 40 °C
  • 32 dB at 2 500 RPM keeps noise low
  • 33 CFM airflow cools components efficiently

Purpose and fit

This 92 mm case fan operates directly from 230 V mains at 50 or 60 Hz. It suits industrial cabinets, medical equipment, rail vehicles and similar 230 V environments where a low-voltage supply is not available.

Before ordering

Verify that your chassis has a 92 mm mounting pattern with 25 mm depth clearance. Confirm the system can provide a 230 V AC feed and that the 16 W draw at 0.08 A is acceptable for the circuit. The fan runs at 2500 RPM on 50 Hz and 3000 RPM on 60 Hz.

Build and daily use

The frame uses PBT plastic blades with a metal housing and maintenance-free double ball bearings rated for 40000 hours at 40 °C. Two lead wires exit the housing for direct mains connection; no PWM or speed-control header is present. Noise measures 32 dB at 50 Hz and 36 dB at 60 Hz.

Highlights

  • 92 mm frame fits standard case mounts
  • 230 V AC supply runs straight from mains power
  • Double ball bearing rated for 40 000 hours at 40 °C
  • 32 dB at 2 500 RPM keeps noise low
  • 33 CFM airflow cools components efficiently

Specifications

No published specifications for this item yet.

Questions about this item

What does the 230 V rating mean for installation?

The fan runs directly from mains voltage so no external power supply is needed; wire it to a 230 V AC circuit rated for at least 0.09 A.

Which speed setting suits a quiet build?

At 50 Hz the fan spins at 2500 RPM and produces 32 dB, while at 60 Hz it reaches 3000 RPM and 36 dB; choose 50 Hz for lower noise.

What does the 40 000 hour L10 figure mean in daily use?

L10 of 40 000 hours at 40 °C means that after roughly four and a half years of continuous running at that temperature, 10 % of units may have failed.
