Black aluminium frame 120 mm square AC fan with clear plastic blades and 25 cm leads

Fans

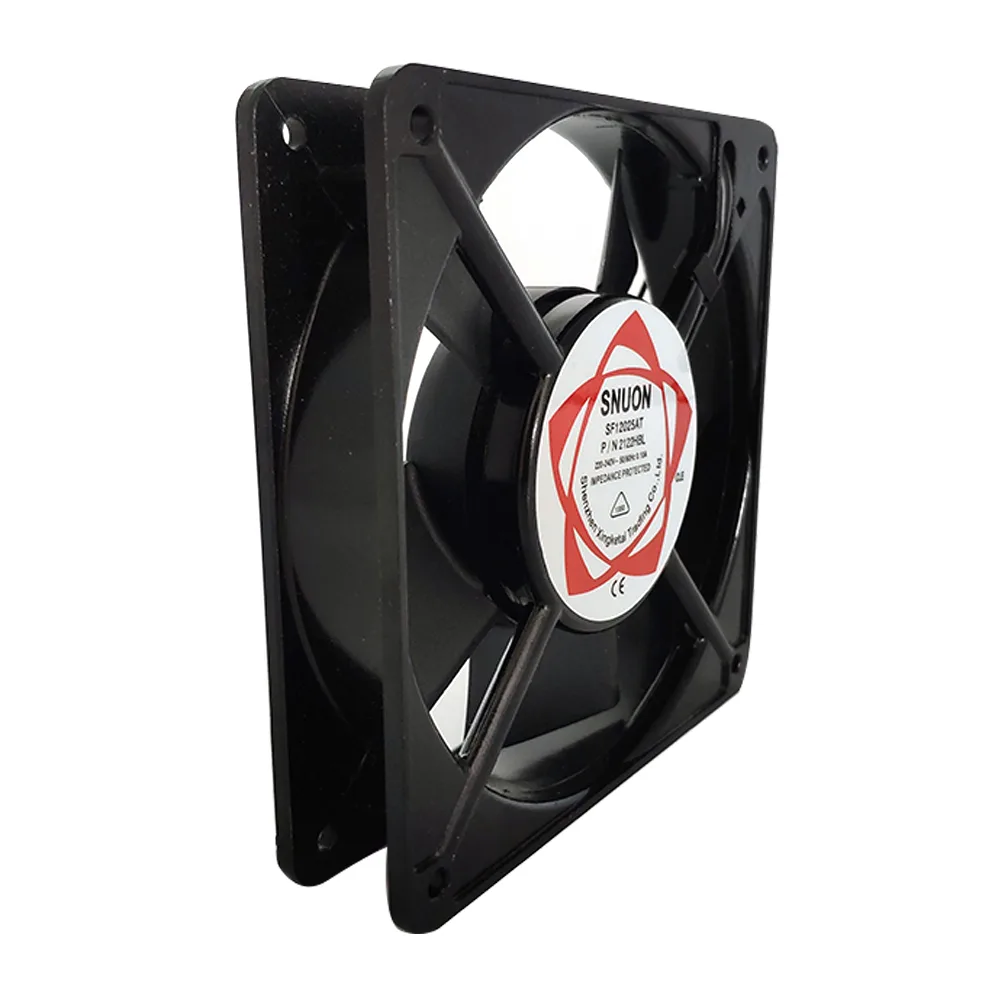

Fans SF12025AT 120x120x25mm 220V AC case fan

SKU CH-MGPN-6TNJ7 MPN SF12025AT

A 120 mm AC case fan with ball bearings, 220–240 V supply, 2300–2700 rpm and 41–43 dB noise

  • 120 mm AC fan runs on 220 V mains power
  • Double ball bearing rated for 50000 hours at 40 °C
  • Delivers 2.27 m³/min airflow at 2700 RPM
  • Flame-retardant PBT blades with glass reinforcement
  • Aluminium frame resists corrosion from -40 °C to 70 °C

120 mm AC case fan for industrial enclosures

This 120 mm square fan runs directly from 220 V AC mains and fits a 120 x 120 x 25 mm mounting pattern. It is built for server racks, telecom cabinets and industrial chassis that need continuous airflow without a separate DC power supply. The black-painted aluminium frame resists corrosion in humid environments.

Ball-bearing motor rated for 50 000 hours at 40 °C

The double ball bearing supports a lifespan of 50 000 hours at 40 °C ambient temperature. Speed varies between 2 300 and 2 700 RPM depending on 50 Hz or 60 Hz supply, delivering 1.87 to 2.27 m³/min of airflow at 41 to 43 dB-A. Power draw is 20 to 22 W across the 185 to 245 V operating window.

25 cm lead wires with Class B insulation

The fan ships with 25 cm lead wires using Class B enamelled wire rated to 120 °C. Insulation resistance exceeds 500 megaohms and the unit withstands 1 500 V for one minute. PBT blades with 30 % glass fibre and VO flame retardant meet basic safety requirements. No mounting screws, guards or speed-control circuitry are included.

Highlights

  • 120 mm AC fan runs on 220 V mains power
  • Double ball bearing rated for 50000 hours at 40 °C
  • Delivers 2.27 m³/min airflow at 2700 RPM
  • Flame-retardant PBT blades with glass reinforcement
  • Aluminium frame resists corrosion from -40 °C to 70 °C

Specifications

No published specifications for this item yet.

Questions about this item

What airflow will this 2300/2700 RPM fan actually move in my chassis?

The fan delivers 1.87 m³/min at 2300 RPM and 2.27 m³/min at 2700 RPM, so installed airflow sits between those two figures depending on line frequency.

How does the 220–240 V AC supply limit speed control options?

The motor runs directly on 50/60 Hz mains at 220–240 V, so speed is fixed by line frequency; no PWM or voltage regulation is possible.

Will the 25 cm lead wires reach my case’s fan header or terminal block?

The fan ships with 25 cm lead-type wires, so measure from the mounting point to your connection point before installing.
