Industrial centrifugal fan, metal housing, 230V AC motor

Fans

Fans R4E355-AL02-06 230V 245W case fan

SKU CH-TWTV-BD0NE

230 V AC centrifugal fan delivering up to 35000 m³/h airflow for FFU and purification systems

  • Operates at 230 V AC for direct mains connection
  • Runs at 1420 rpm (50 Hz) or 1650 rpm (60 Hz)
  • Draws 245 W at 50 Hz and 420 W at 60 Hz
  • Functions from –25 °C up to 70 °C ambient temperature
  • Airflow reaches 35000 m³/h for high-volume cooling

Industrial AC Centrifugal Fan

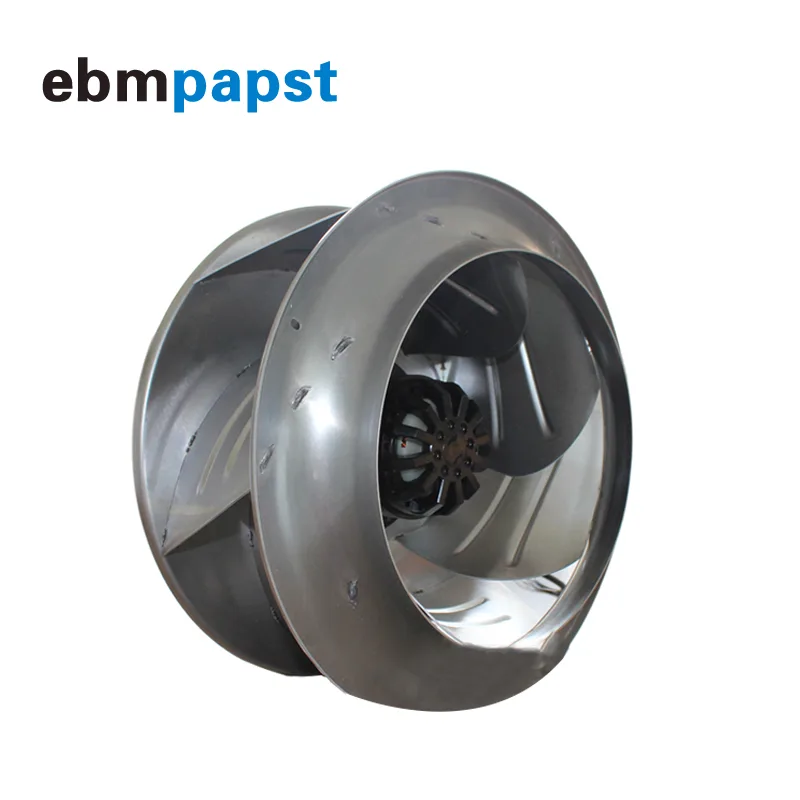

The ebmpapst R4E355-AL02-06 is a single-phase AC centrifugal fan built for 230 V mains supply. It draws 245 W at 50 Hz and 420 W at 60 Hz, reaching 1420 rpm and 1650 rpm respectively. The motor uses an external rotor design for compact integration and direct impeller cooling.

Suited for Fixed 230 V Installations

This unit fits purification equipment, FFU modules and industrial enclosures that run directly from 230 V AC at 50 or 60 Hz. It is not suitable for standard PC chassis that require 12 V or 24 V DC case fans, nor for builds needing PWM speed control or motherboard fan headers.

230 V AC Mains Voltage

The defining specification is the 230 VAC nominal voltage, which dictates wiring, safety approvals and the type of power source required. Verify that your application provides single-phase 230 V mains power before selecting this fan.

Highlights

  • Operates at 230 V AC for direct mains connection
  • Runs at 1420 rpm (50 Hz) or 1650 rpm (60 Hz)
  • Draws 245 W at 50 Hz and 420 W at 60 Hz
  • Functions from –25 °C up to 70 °C ambient temperature
  • Airflow reaches 35000 m³/h for high-volume cooling

Specifications

No published specifications for this item yet.

Questions about this item

What does the 245 W power draw mean for my power supply?

At 50 Hz the fan draws 245 W and 1.12 A from a 230 V supply, so your PSU or circuit must sustain that continuous load plus the 2.62 A starting surge.

How does the 50/60 Hz rating affect speed and power?

At 50 Hz the motor runs at 1420 rpm and consumes 245 W; at 60 Hz it reaches 1650 rpm and consumes 420 W with 1.9 A current draw.

What mounting provisions does the steel housing include?

The sturdy steel plate housing is designed for direct mounting in purification equipment or FFU units; no separate brackets or screw patterns are detailed.
