Black metal centrifugal fan housing with curved blades visible inside

Fans

Fans R4E310-AP11-09/F01 centrifugal case fan

SKU CH-V160-7S03V

Centrifugal fan for air purification and charging piles, running at 1390–1580 rpm on 230 V AC with 115–160 W power draw

  • Operates from -25 °C to 65 °C for harsh environments
  • Runs on 230 VAC 50/60 Hz single-phase mains power
  • External rotor motor design gives compact forced cooling
  • Draws 0.52 A at 50 Hz and 0.70 A at 60 Hz
  • Air flow up to 35000 m³/h for high-volume cooling

Centrifugal Fan for Air Purification Systems

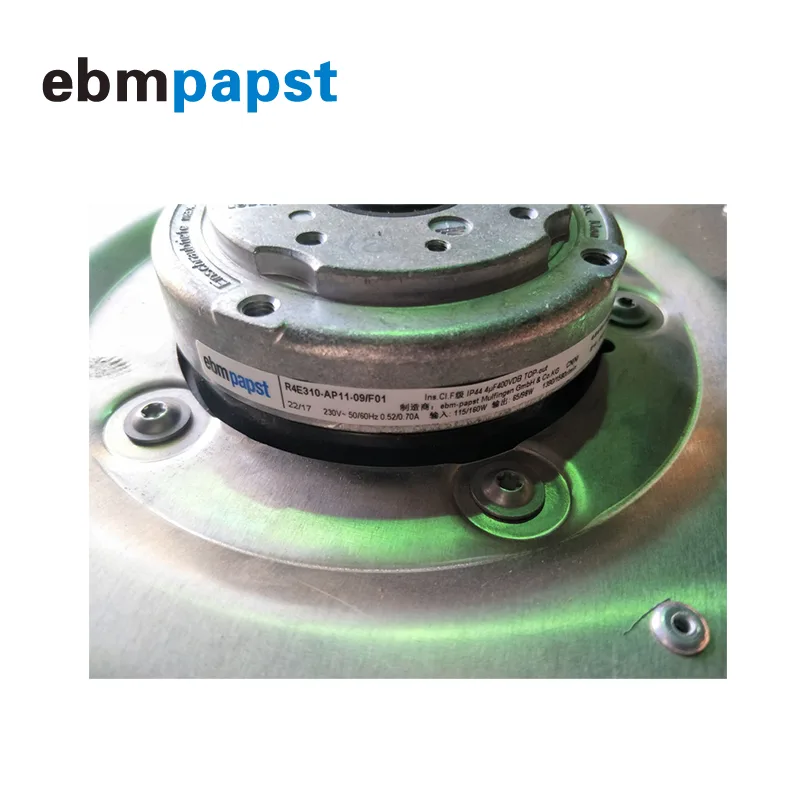

This new centrifugal fan from Fans carries the model designation R4E310-AP11-09/F01 and is built by ebm-papst in Germany. It uses an external rotor motor M4E074-DF that runs directly inside the impeller for compact cooling. The unit is intended for air purification equipment and charging pile installations where a scroll housing is not required.

Suitable for 230 VAC Industrial Cooling Projects

The fan operates on single-phase 230 VAC at 50 or 60 Hz and draws 0.52 A at 50 Hz or 0.70 A at 60 Hz. It fits builders who need a free-wheeling centrifugal design with a 4 µF 400 VDB capacitor included. Buyers who require a forward-curved impeller with an integrated scroll housing or a speed-controlled EC motor should look at other product lines.

1390 RPM at 50 Hz with 115 W Power Draw

At 50 Hz the motor runs at 1390 min-1 while consuming 115 W and at 60 Hz it reaches 1580 min-1 at 160 W. The maximum ambient temperature is rated to 65 °C at 50 Hz and 50 °C at 60 Hz with a minimum of -25 °C. These speed and power figures are the primary data for matching the fan to a specific airflow requirement.

Highlights

  • Operates from -25 °C to 65 °C for harsh environments
  • Runs on 230 VAC 50/60 Hz single-phase mains power
  • External rotor motor design gives compact forced cooling
  • Draws 0.52 A at 50 Hz and 0.70 A at 60 Hz
  • Air flow up to 35000 m³/h for high-volume cooling

Specifications

No published specifications for this item yet.

Questions about this item

Will the 4 µF 400 VDB capacitor need replacement after long-term use?

The capacitor is rated 4 µF at 400 VDB to S0 (CE) standard; electrolytic capacitors of this type typically last several years at rated voltage and temperature, so plan on checking it during routine maintenance cycles.

At 160 W and 0.70 A draw on 60 Hz power, does the motor hit its thermal limit first?

The motor reaches its maximum ambient-temperature limit of 50 °C at 60 Hz operation before other limits are reached, so sustained loads in warm enclosures will trigger thermal protection first.

How loud and hot does the fan get when running continuously at 1580 rpm?

At 1580 rpm the unit draws 160 W and 0.70 A; the external-rotor design provides forced electronic cooling, and the maximum ambient temperature is rated at 50 °C for continuous operation.
