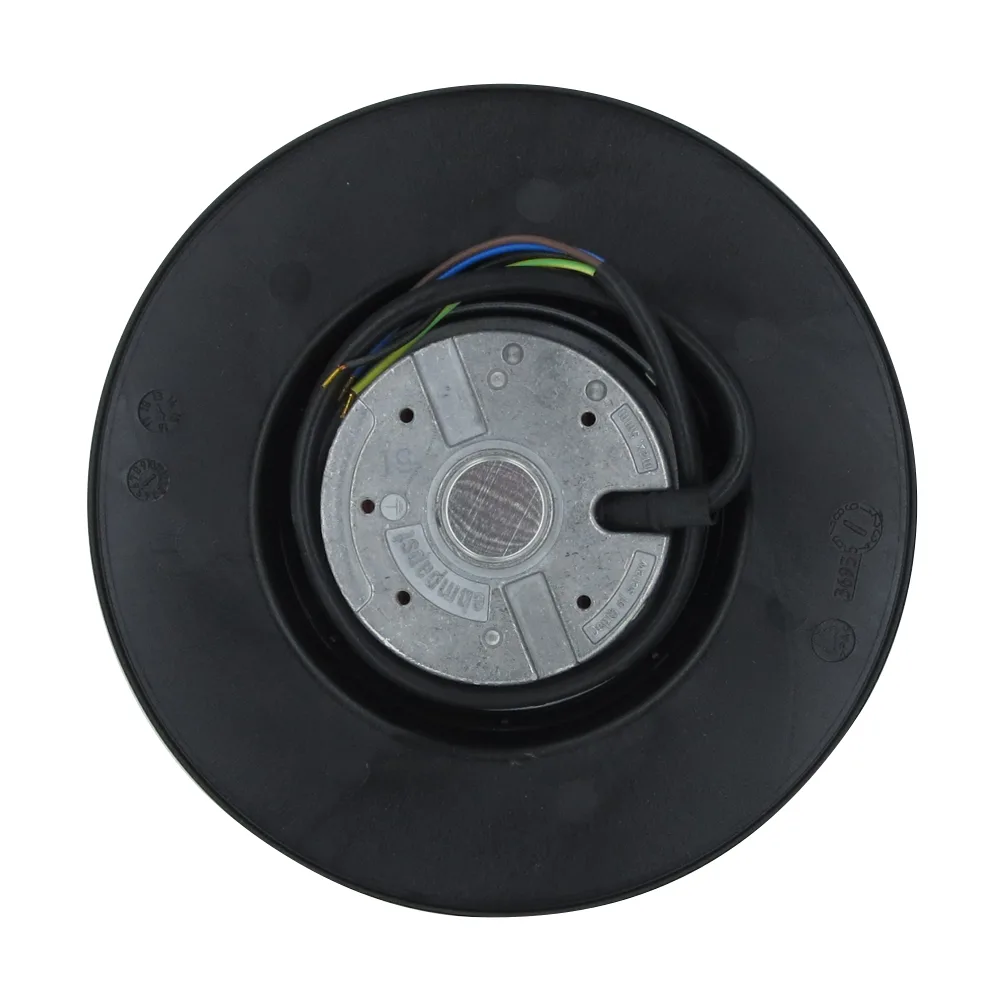

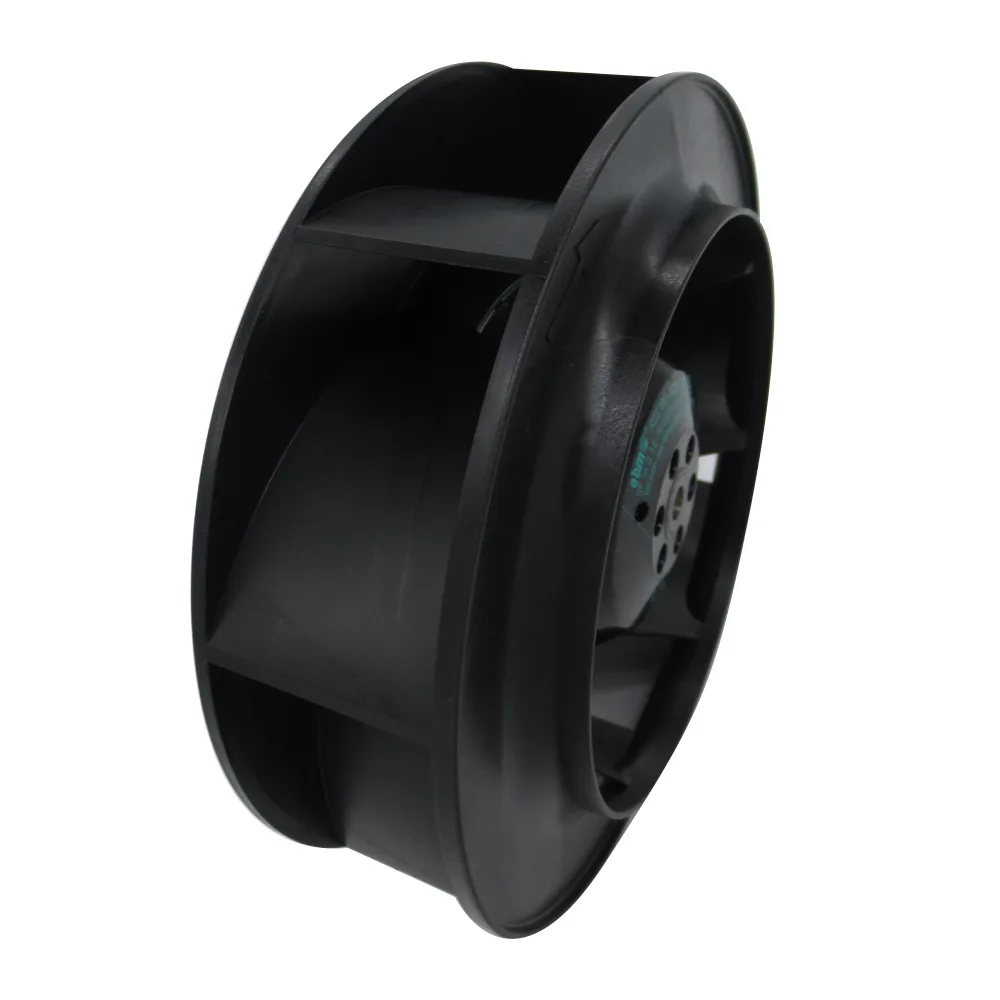

Black metal centrifugal fan with backward curved blades and attached capacitor ring

Fans

Fans R2E190-AO26-05 58W 230V centrifugal fan

SKU CH-Y2W7-WF8FH

A 230 V centrifugal fan with backward-curved blades, 58 W power draw and 2500 rpm speed for case airflow up to 35000 m³/h

  • 58 W power draw at 230 V AC for efficient operation
  • 2 500–2 700 rpm speed range delivers strong airflow
  • Backward-curved blades enable high static pressure without scroll housing
  • CE-approved capacitor included simplifies installation
  • Rated –25 °C to 55 °C for wide-temperature reliability

Centrifugal fan for air intake

The Fans R2E190-AO26-05 is a 230 V AC centrifugal blower with backward-curved blades designed for air-intake applications. It ships new with an attached capacitor and inlet ring, and its compact external-rotor motor fits a variety of industrial and electronic-cooling installations.

Thermal and electrical profile

At 50 Hz the motor draws 0.26 A and consumes 58 W while spinning at 2500 rpm; at 60 Hz those figures rise to 0.34 A, 75 W and 2700 rpm. The integrated 2 µF 400 V capacitor meets the S0 (CE) standard, and the unit is rated for continuous ambient temperatures from -25 °C to 50 °C at 50 Hz or 55 °C at 60 Hz.

Sustained-load behaviour

Starting current peaks at 0.40 A (50 Hz) or 0.41 A (60 Hz) before settling to the nominal draw. The fan maintains its rated airflow up to 35000 m³/h without a scroll housing, and speed is fully controllable via analog or serial interface for steady operation under prolonged demand.

Highlights

  • 58 W power draw at 230 V AC for efficient operation
  • 2 500–2 700 rpm speed range delivers strong airflow
  • Backward-curved blades enable high static pressure without scroll housing
  • CE-approved capacitor included simplifies installation
  • Rated –25 °C to 55 °C for wide-temperature reliability

Specifications

No published specifications for this item yet.

Questions about this item

How do I wire the 2 µF 400 V capacitor that comes attached to the 230 VAC motor?

Connect the capacitor across the motor's auxiliary winding terminals as shown on the nameplate; the capacitor is already rated for 400 VDB and meets the S0 (CE) standard.

Will the sealed ball bearings in the M2E068-BF motor need lubrication or replacement?

The external-rotor motor uses maintenance-free sealed bearings; no lubrication is required and replacement is only needed if audible rumble or excessive vibration appears after years of continuous duty.

At what ambient temperature does the fan hit its thermal limit during non-stop operation?

Continuous operation is rated up to 55 °C ambient at 60 Hz; above that the motor's internal thermal protection will trip and shut the fan down.
