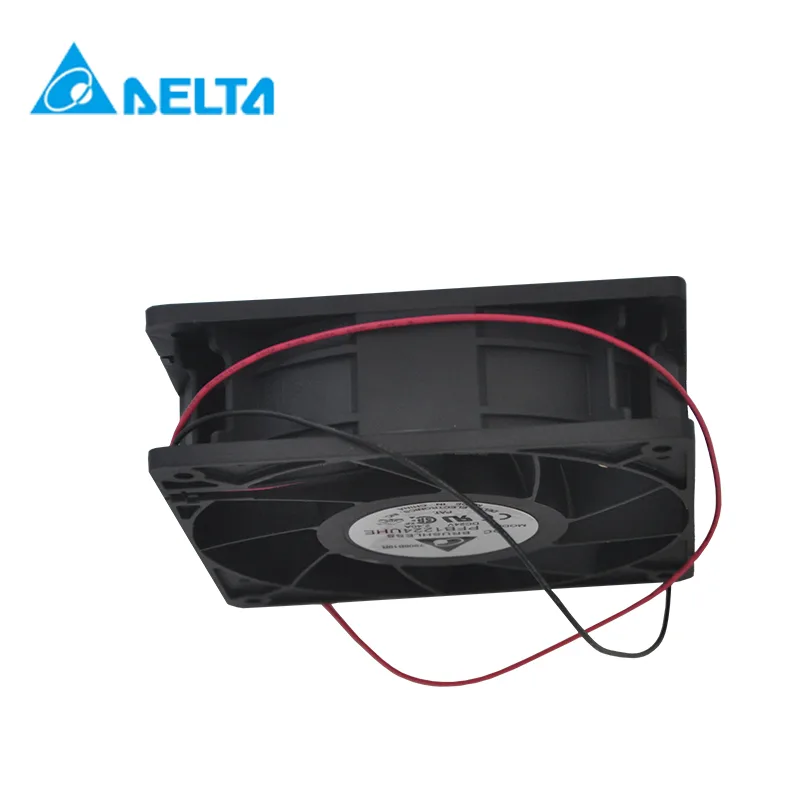

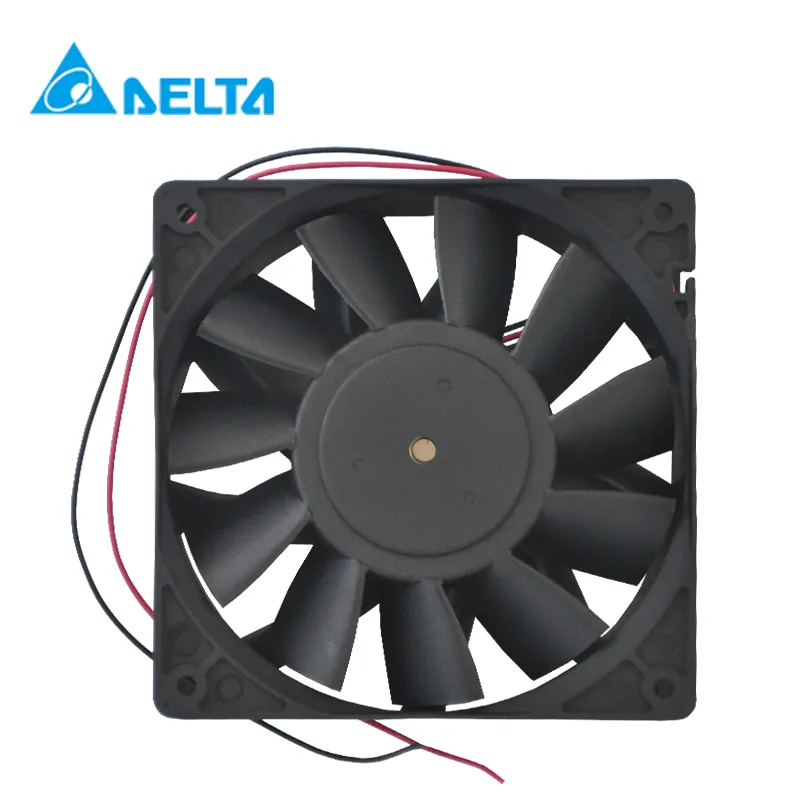

Square black industrial axial fan with thick frame and seven curved blades

Fans

Fans PFB1224UHESize 24V 12038 case fan

SKU CH-00YN-C19Q1 MPN PFB1224UHESize

24 V axial fan delivers 252.85 CFM at 5500 RPM with 1.412 inH₂O static pressure and 66.5 dBA noise

  • 85 CFM airflow delivers strong cooling for industrial systems
  • 5500 RPM at 24 V provides high static pressure of 1.412 inH₂O
  • 80 000 hour rated life at 25 °C ensures long-term reliability
  • PBT frame and blades with V0 flame rating meet strict safety standards
  • Ball bearing supports continuous operation from -10 °C to +70 °C

Industrial 24 V 12038 axial fan

This 24 V axial fan measures 120 by 120 by 38 mm and is built for equipment that demands high airflow in a compact frame. It targets integrators working on medical devices, rail vehicles, industrial drives or new-energy platforms where a robust counter-clockwise rotation is specified.

48 W high-speed motor delivers 252.85 CFM

The single figure that decides fit is the 5 500 RPM motor drawing 2.4 A at 24 V for 48 W total power. That combination produces 252.85 CFM at 1.412 inH2O static pressure, so the part suits only systems that can supply 24 V within a ±15 % range and tolerate 66.5 dBA acoustic output.

PBT glass-fibre frame and ball bearing

The housing and blades use PBT with 30 % glass fibre rated VO for flame retardance, while a high-precision ball bearing supports the 80 000-hour service life at 25 °C. No cables, connectors or mounting hardware are included, so the installer must provide wiring and fixation suited to the target chassis.

Highlights

  • 85 CFM airflow delivers strong cooling for industrial systems
  • 5500 RPM at 24 V provides high static pressure of 1.412 inH₂O
  • 80 000 hour rated life at 25 °C ensures long-term reliability
  • PBT frame and blades with V0 flame rating meet strict safety standards
  • Ball bearing supports continuous operation from -10 °C to +70 °C

Specifications

No published specifications for this item yet.

Questions about this item

What does the 252.85 CFM airflow deliver inside a 120 mm chassis slot?

It moves 252.85 cubic feet of air per minute through a 120×120×38 mm frame, giving high-volume cooling for dense component layouts.

How does the 24 V PWM interface limit speed control in practice?

The fan runs on 24 V DC with a ±15 % supply tolerance; speed is set by the PWM duty cycle and tops out at 5 500 RPM.

Will the 38 mm thick frame with 120 mm mounting holes fit my server rail?

Yes — the PBT glass-fibre frame measures 120×120×38 mm and uses standard 120 mm screw centres for direct rail mounting.
