Square aluminium frame fan with metal blades, 172 by 150 by 51 mm, 230 V AC

Fans

Fans P2175HBL-ETS 172x150x51mm 230V 0.12A 245CFM

SKU CH-H5AQ-9SCH7

Delivers 245 CFM airflow at 2750/3150 RPM with double ball bearings in a 172x150x51mm aluminium frame

  • High airflow of 245 CFM for effective cooling
  • Dual-speed operation at 2750/3150 RPM for flexible performance
  • Maintenance-free double ball bearings ensure long service life
  • Wide operating temperature range from -10 °C to +70 °C
  • Sturdy aluminium frame with metal blades for durability

AC Case Fan for Industrial Enclosures

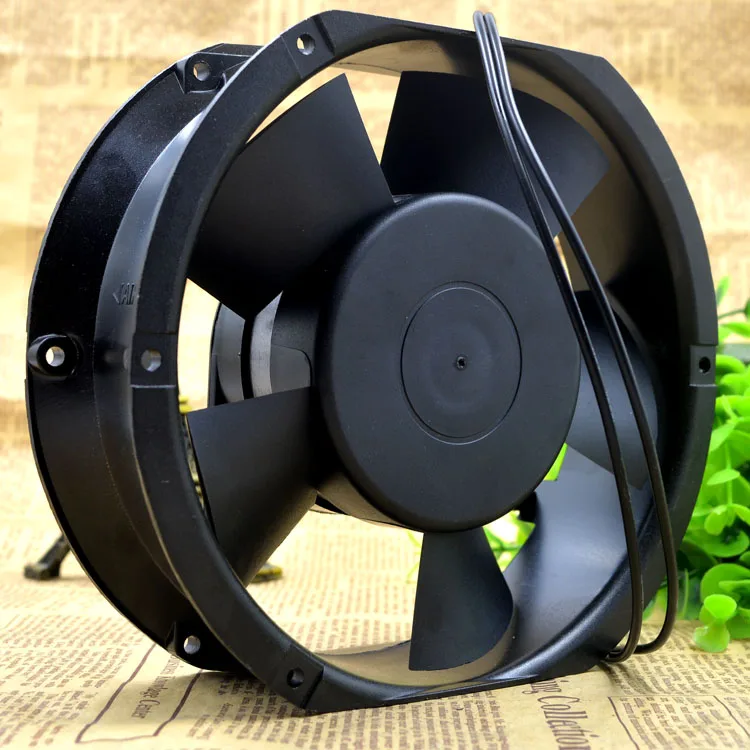

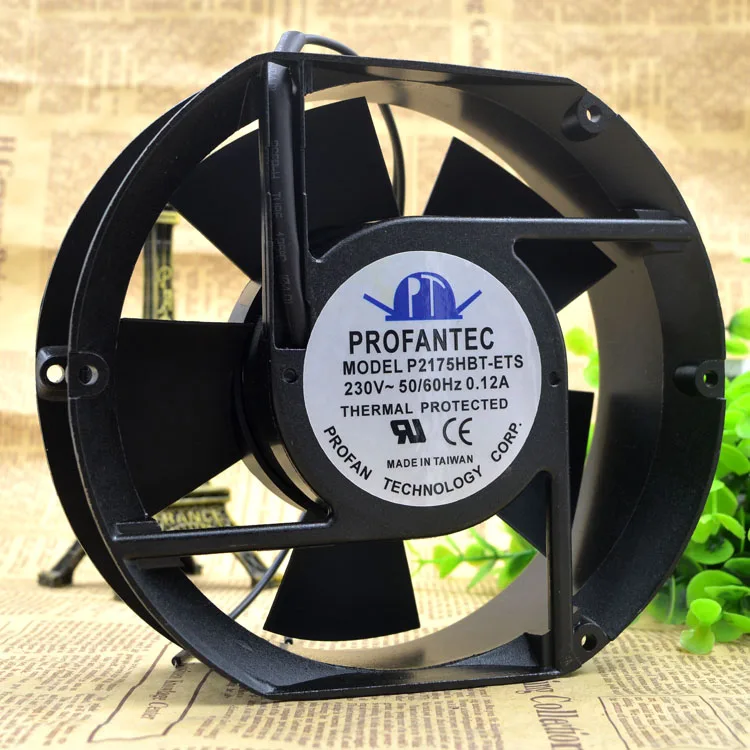

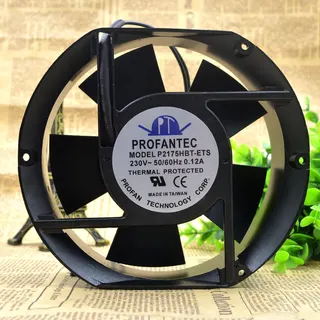

The PROFANTEC P2175HBL-ETS is an AC-powered case fan built around a 172 x 150 x 51 mm aluminium frame with metal iron blades. It runs on 230 V mains voltage at 50 or 60 Hz and draws 0.12 A while delivering up to 245 CFM of airflow. The double ball bearing is rated for maintenance-free operation across a -10 °C to +70 °C range.

Suited for rack and cabinet cooling.

This fan suits engineers who need high-volume airflow in industrial enclosures, medical equipment or rail-vehicle drive cabinets where AC power is already present. It is not intended for builders working with low-voltage DC systems or compact chassis that accept only smaller mounting patterns. The lead-wire connection and inverter-grade construction target fixed installations rather than desktop upgrades.

230 V AC input voltage

The single specification that decides fit is the 230 V AC supply requirement. If your enclosure or chassis provides only 12 V or 24 V DC headers, this unit will not operate without a separate mains feed and appropriate safety isolation.

Highlights

  • High airflow of 245 CFM for effective cooling
  • Dual-speed operation at 2750/3150 RPM for flexible performance
  • Maintenance-free double ball bearings ensure long service life
  • Wide operating temperature range from -10 °C to +70 °C
  • Sturdy aluminium frame with metal blades for durability

Specifications

No published specifications for this item yet.

Questions about this item

Will the double ball bearing in the P2175HBL-ETS need lubrication or replacement during its service life?

The bearing structure is described as maintenance-free double ball bearing, so no lubrication or bearing replacement is required under normal operating conditions.

At 3150 RPM and 245 CFM, what limits continuous operation first — airflow, static pressure or motor temperature?

The maximum air volume is 245 CFM at 3150 RPM with a wind pressure range of 0.55/0.6 in-H2O; the motor is rated for ambient temperatures up to 70 °C, so thermal limits are reached before airflow or pressure limits under sustained load.

How much power does the 230 V 0.12 A fan draw and how hot does the aluminum frame get when running 24/7?

The fan draws 0.12 A at 230 V (50/60 Hz) and operates in a -10 to +70 °C range; the aluminum frame and metal blades transfer heat into the airstream, keeping frame temperature close to ambient during continuous use.
