Black square 92mm axial fan with black blades and silver center hub, 25mm thick

Fans

Fans MMF-09C24TS-RM1Size 92mm 24V 0.2A case fan

SKU CH-Z2C9-6EWZ5 MPN MMF-09C24TS-RM1Size

A 92 mm axial case fan running on 24 V and drawing 0.2 A for compact airflow in tight spaces

  • 92 mm square frame fits tight chassis
  • 25 mm slim depth saves installation space
  • 24 V 0.2 A input lowers power draw
  • Axial blade design moves air efficiently
  • Low noise suits quiet environments

Compact 92 mm axial fan

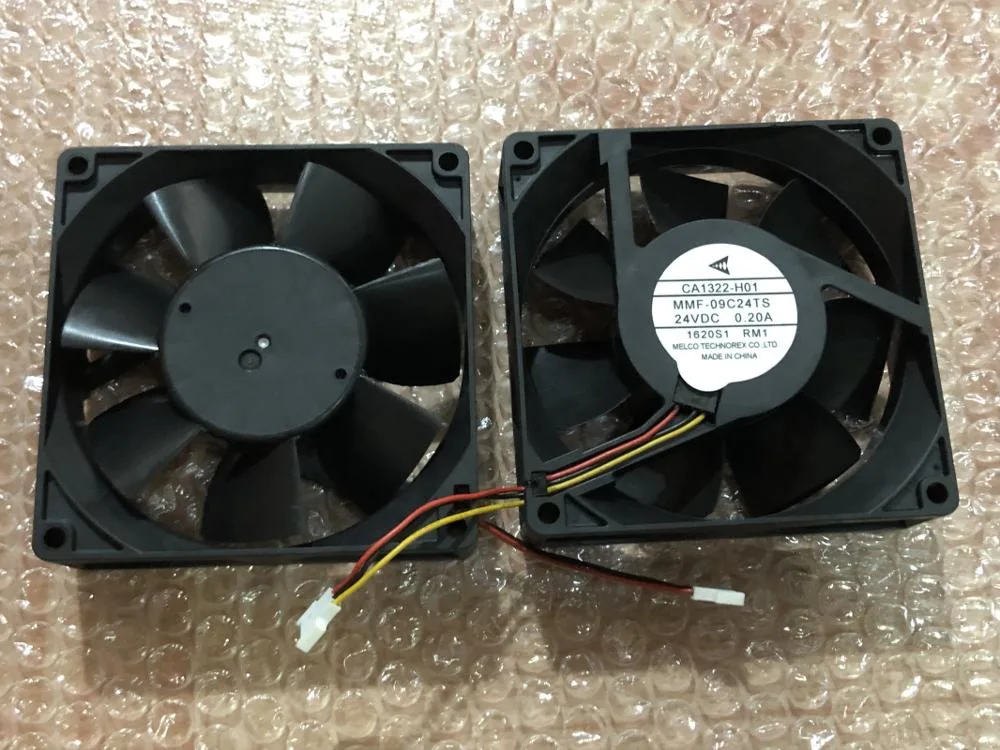

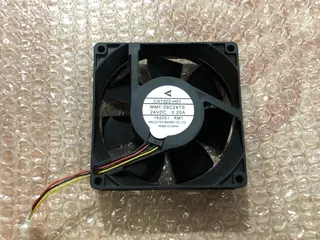

The Mitsubishi MMF-09C24TS-RM1 is a 92 mm square axial fan designed for 24 V DC operation at 0.2 A. Its 25 mm frame depth allows installation in tight enclosures where airflow must be directed through heat exchangers or restricted channels. The unit is supplied new and intended for industrial and embedded cooling tasks.

Suited for 24 V DC systems; not for 12 V builds

This fan suits engineers integrating cooling into medical devices, rail equipment, industrial drives, or new-energy vehicle subsystems that already provide a 24 V rail. Builders working with standard 12 V PC power headers or consumer motherboard fan connectors cannot use it without a separate voltage conversion stage. Applications requiring PWM speed control or tachometer feedback should verify those signals are supported before purchase.

Bare fan — no cables, mounts or controllers included

The package contains only the axial fan unit itself. No power leads, mounting screws, rubber isolators or fan-speed controllers are bundled. Installers must source appropriate 24 V wiring, mounting hardware and any required drive electronics separately. This keeps the bill of materials lean for volume integrators but adds procurement steps for one-off prototypes.

Highlights

  • 92 mm square frame fits tight chassis
  • 25 mm slim depth saves installation space
  • 24 V 0.2 A input lowers power draw
  • Axial blade design moves air efficiently
  • Low noise suits quiet environments

Specifications

No published specifications for this item yet.

Questions about this item

What voltage power supply must I already have to run this 24V 0.2A fan?

You need a 24 V DC source capable of supplying at least 0.2 A; the fan draws exactly that current at its rated voltage.

Will this 92 mm axial fan fit the same mounting holes as my existing 92 mm fan?

Yes — the frame measures 92 × 92 × 25 mm, matching the standard 92 mm square mounting pattern used on most cases and heatsinks.

How can I confirm the fan is spinning correctly after installation?

Apply 24 V and verify the blades rotate smoothly with no audible bearing noise; the 0.2 A draw confirms the motor is running at its specified operating point.
