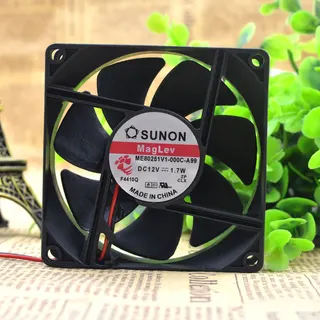

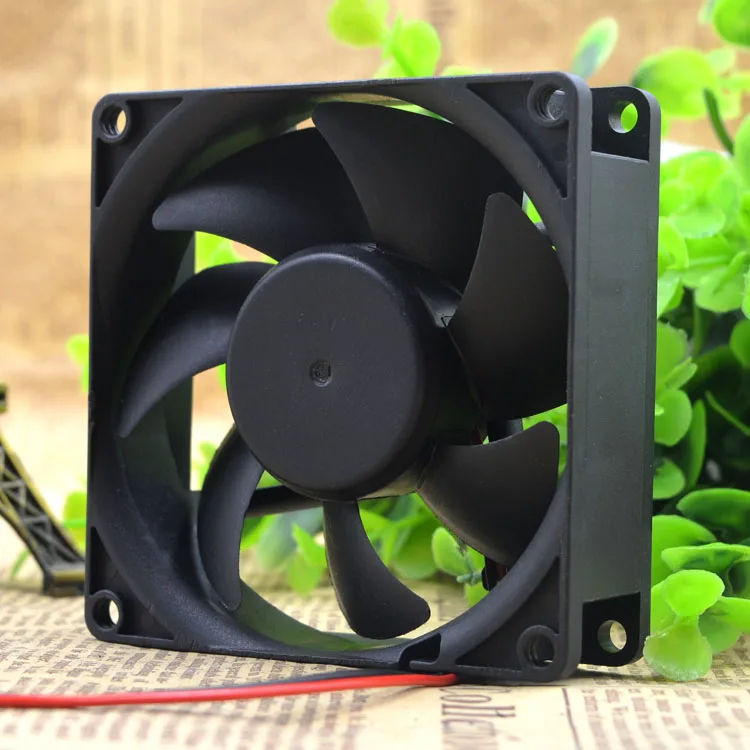

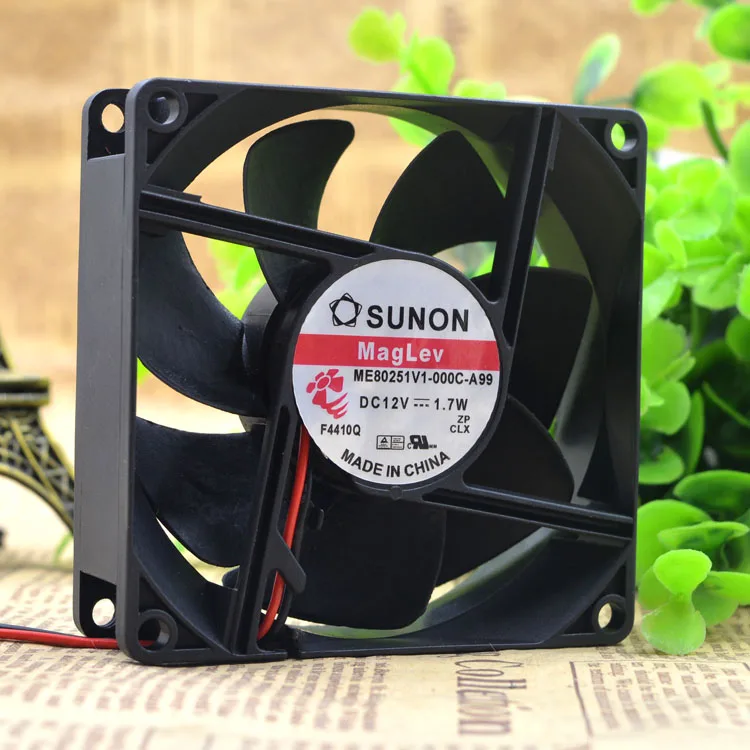

Square 80 mm black frame fan with center hub and curved blades

Fans

Fans ME80251V1-000C-A99Size 80 mm case fan

SKU CH-W7GQ-YVGX9 MPN ME80251V1-000C-A99Size

An 80 mm case fan running at 3300 rpm with 36 CFM airflow and 28 DBA noise

  • 12 V operation for standard PC power compatibility
  • 3300 rpm speed delivers 36 CFM airflow
  • 28 dBA noise level keeps systems quiet
  • Hydraulic bearing design for durable rotation
  • Compact 80 × 80 × 25 mm frame fits tight cases

Compact 80 mm case fan

The Fans ME80251V1-000C-A99Size is an 80 mm square frame fan designed for chassis intake or exhaust where space is limited. It runs on 12 V and draws 0.14 A for a rated power of 1.7 W, making it suitable for low-power cooling tasks.

Two-wire hydraulic bearing

A two-line connector supplies power without speed reporting or PWM control, so the fan runs at a fixed 3300 rpm. The hydraulic bearing and 25 mm thickness keep operational noise around 28 dBA while delivering roughly 36 CFM of airflow.

Fixed-speed airflow limits

Without a third or fourth wire the fan cannot be regulated by the motherboard, so airflow and noise stay constant regardless of system load. The measured static pressure of about 0.18 H2O restricts use to open meshes or short ducts rather than dense radiators or filters.

Highlights

  • 12 V operation for standard PC power compatibility
  • 3300 rpm speed delivers 36 CFM airflow
  • 28 dBA noise level keeps systems quiet
  • Hydraulic bearing design for durable rotation
  • Compact 80 × 80 × 25 mm frame fits tight cases

Specifications

No published specifications for this item yet.

Questions about this item

What does the 2-line fan interface mean for speed control?

The 2-line interface provides power only, so the fan runs at a fixed 3300 rpm and cannot be PWM-controlled or report speed to the motherboard.

What are the exact mounting dimensions of this 8025 frame?

The frame is 80 mm square and 25 mm thick with mounting holes on the standard 80 mm pitch.

How do I connect the two wires without reversing polarity?

Connect the red wire to 12 V and the black wire to ground; reversing them will prevent the fan from spinning.
