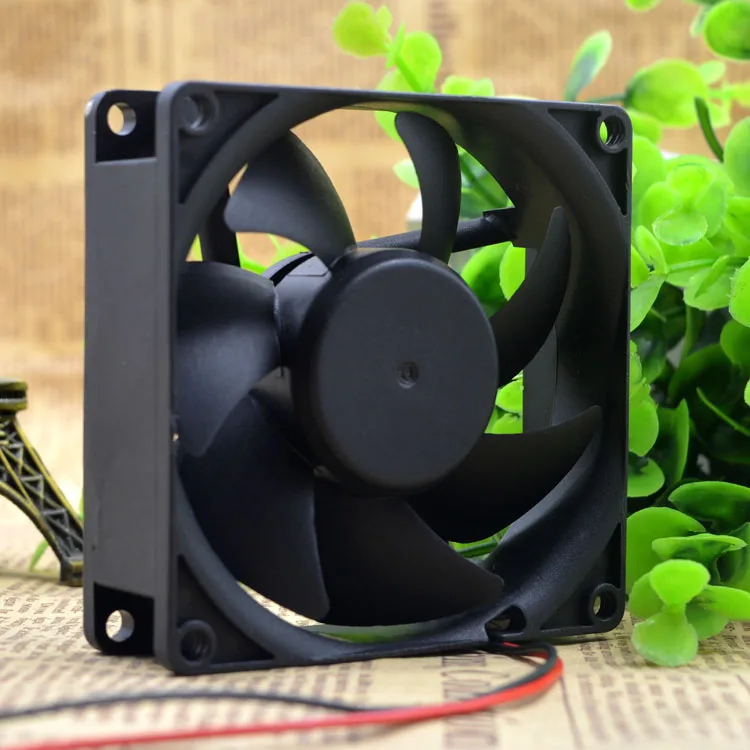

Square black 80 mm frame axial fan with seven blades and two wire leads

Fans

Fans ME80251V1-000C-A99Size 12V 1.7W 8025 case fan

SKU CH-C2NC-ZA2DJ MPN ME80251V1-000C-A99Size

Compact 80 mm axial fan delivering 36 CFM airflow at 3300 rpm with 28 dBA noise

  • 80 mm frame fits tight chassis spaces
  • 12 V 1.7 W power draw keeps energy use low
  • 3300 rpm speed delivers 36 CFM airflow
  • 28 dBA noise level suits quiet builds
  • Hydraulic bearing supports long service life

80 mm 12 V case fan

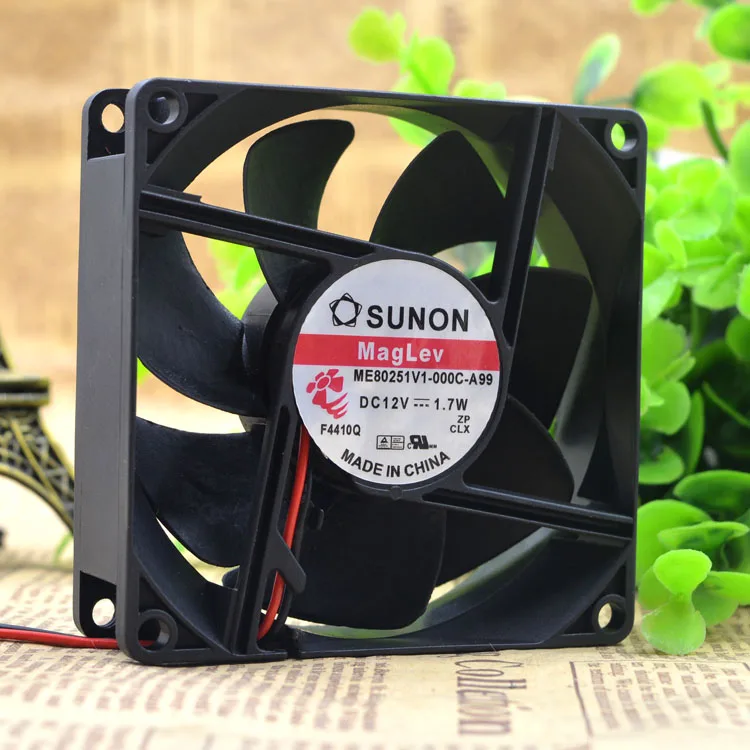

The SUNON ME80251V1-000C-A99 is an 80 mm axial fan designed for compact chassis and equipment cooling. It runs on 12 V and draws 0.14 A for a rated power of 1.7 W. The hydraulic bearing supports a speed of 3300 rpm with a noise level of about 28 DBA. This unit suits builders who need a slim 25 mm profile for tight spaces.

Two-wire hydraulic bearing

The fan uses a simple two-line power connection without PWM or tachometer feedback. Hydraulic bearing construction aims to reduce friction and extend service life in continuous operation. The 80*80*25 mm frame fits standard 8025 mounting holes for straightforward installation. Buyers who require speed monitoring or variable control should look for a three- or four-wire alternative.

36 CFM airflow at 3300 rpm

Air volume reaches about 36 CFM with a static pressure of roughly 0.18 H2O at the rated speed. This specification determines whether the fan can meet the thermal load of a given heatsink or enclosure. If the target system demands higher static pressure or greater airflow, this model may not be sufficient.

Highlights

  • 80 mm frame fits tight chassis spaces
  • 12 V 1.7 W power draw keeps energy use low
  • 3300 rpm speed delivers 36 CFM airflow
  • 28 dBA noise level suits quiet builds
  • Hydraulic bearing supports long service life

Specifications

No published specifications for this item yet.

Questions about this item

What connector does the 2-line fan interface use and what voltage does it run on?

It uses a two-wire lead that connects directly to a 12 V header or power source; the fan draws 0.14 A at 1.7 W.

What are the exact mounting dimensions of the 8025 frame?

The housing measures 80 mm square by 25 mm thick, matching the standard 8025 footprint for case or chassis mounting.

How do you install the fan and which way should the airflow face?

Screw the 80 mm frame into the mounting holes, plug the two-wire lead into a 12 V header, and orient the label side toward the exhaust direction for correct airflow.
