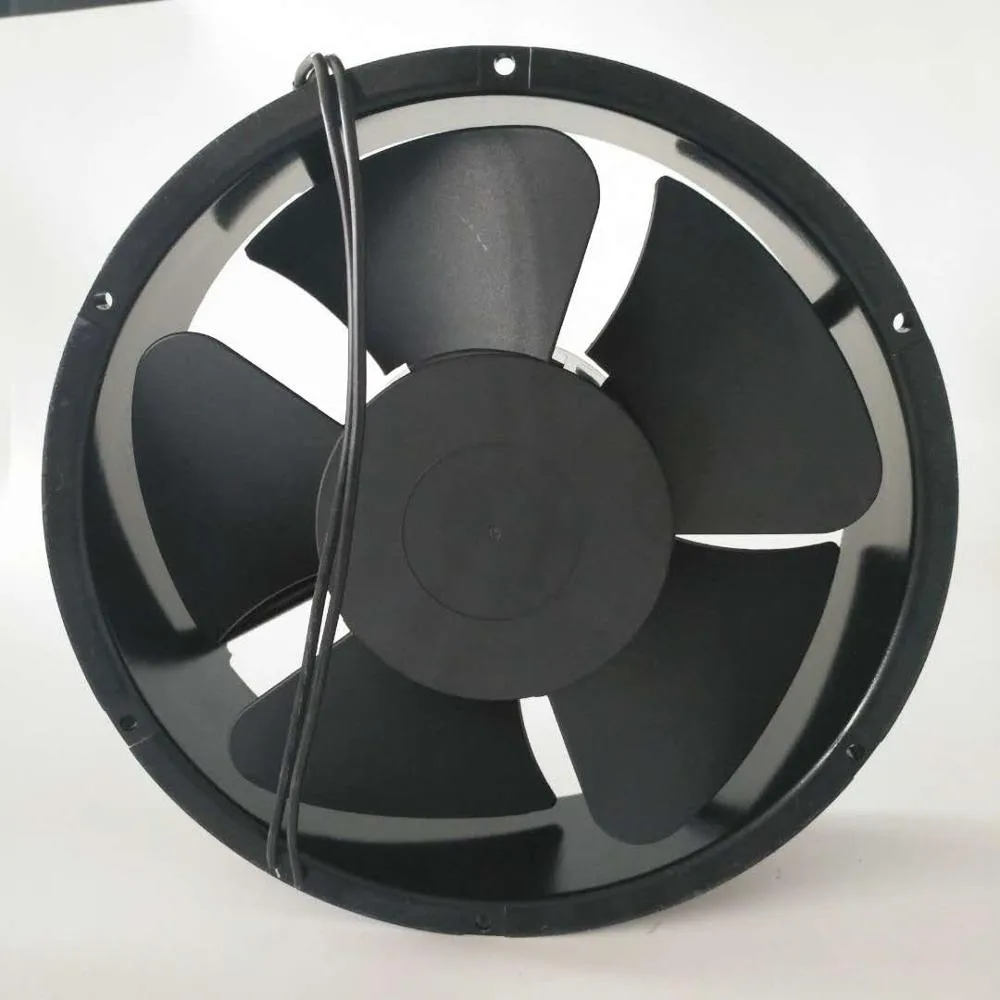

Black aluminium frame 200 mm AC case fan with transparent PBT blades ball bearing 220 V

Fans

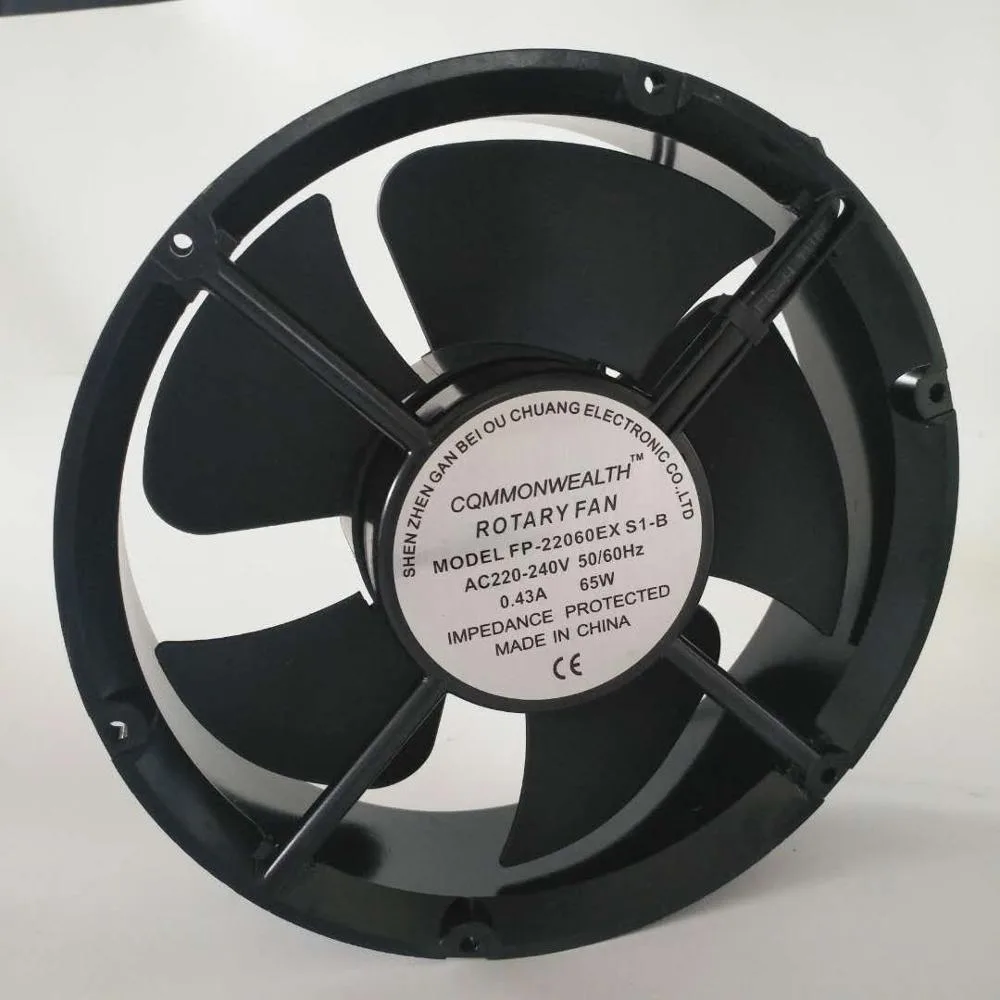

Fans FP-20060EX-S1-B 200 mm 220 V AC case fan

SKU CH-ANFG-4EMHW

A 200 mm AC case fan with ball bearings delivers 335 to 350 CFM at 2300 to 2700 RPM while running on 220 to 240 V power

  • High airflow for industrial cooling with 335-350 CFM output
  • Quiet ball-bearing operation rated at 64-66 dB-A
  • Wide voltage range 180-240 V AC for stable power
  • High-temperature insulation Class B rated to 120 °C
  • Long-life ball bearing tested 40000-60000 hours at 40 °C

Industrial 200 mm AC fan

This 200 mm case fan runs directly on 220 V AC mains power and uses a ball-bearing motor rated for 40000 to 60000 hours at 40 °C. It is built for industrial enclosures, medical equipment and rail-vehicle cabinets that need continuous airflow without a separate DC supply.

Sustained-load airflow and noise

At 50 Hz the fan delivers 335 CFM at 64 dB-A; at 60 Hz it reaches 350 CFM at 66 dB-A while drawing 65 W. The aluminium die-cast frame and PBT glass-fibre blades are rated for ambient temperatures from -20 °C to 75 °C, so output remains stable in hot chassis.

Mains-voltage connection requirement

The unit requires a 220 V to 240 V AC source and lead-type wiring; it cannot be powered from a standard motherboard header or 12 V DC rail. Builders using ATX power supplies or low-voltage controllers must choose a different fan.

Highlights

  • High airflow for industrial cooling with 335-350 CFM output
  • Quiet ball-bearing operation rated at 64-66 dB-A
  • Wide voltage range 180-240 V AC for stable power
  • High-temperature insulation Class B rated to 120 °C
  • Long-life ball bearing tested 40000-60000 hours at 40 °C

Specifications

No published specifications for this item yet.

Questions about this item

How loud is the 220 V AC fan when it runs at 2300–2700 RPM all day?

The fan produces 64–66 dB-A at its rated speed of 2300–2700 RPM, drawing 65 W from a 220–240 V supply.

What power connection does the 200 mm ball-bearing fan need to operate?

It requires a 220–240 V AC mains supply with a lead-type wiring method; no internal PC power connector is used.

Will the aluminium frame and PBT blades fit a standard 200 mm case mounting pattern?

The frame measures 200×200×60 mm with a black-painted aluminium alloy die-casting, matching common 200 mm mounting holes.
