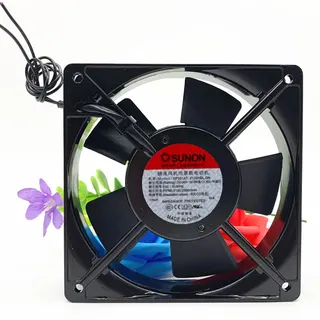

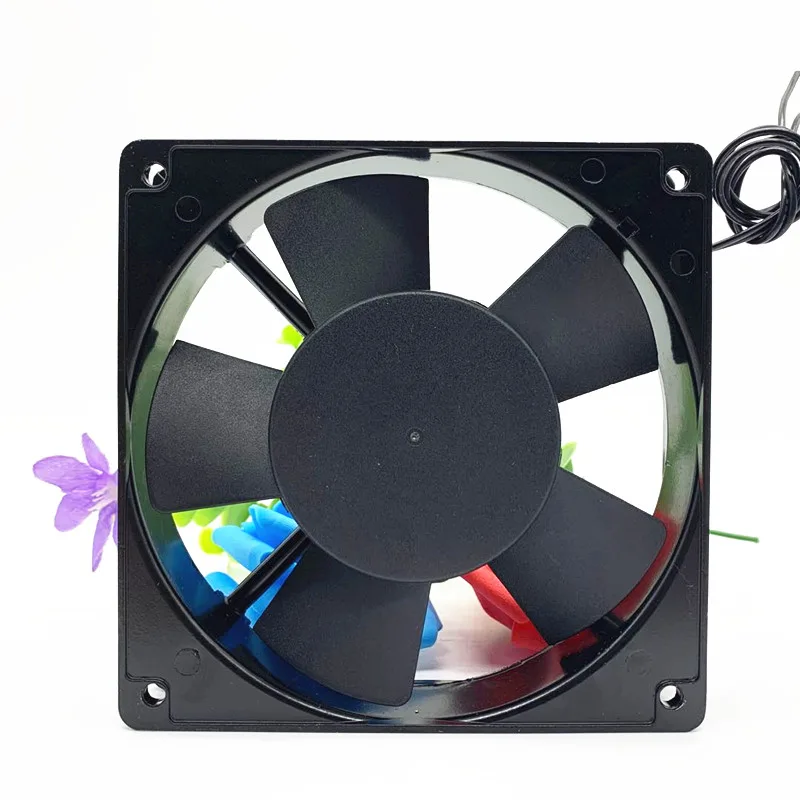

Square black plastic 120 mm frame with central rotor and wire leads

Fans

Fans DP201AT 120 mm 220 V 80 CFM case fan

SKU CH-BGK2-AG435 MPN DP201AT

A 120 mm AC case fan moving 80 CFM at 2500 RPM with ball bearings rated for 50000 hours

  • Air Flow>80 CFM
  • High airflow of 80 CFM for effective case cooling
  • Direct 220 V AC operation without external power supply
  • Ball-bearing design rated for 50,000 hours of continuous use
  • Low 0.09 A current draw keeps power consumption at 19 W
  • 48 dB(A) noise level at 2500 RPM for balanced acoustics

Industrial-grade 220 V cooling

The Fans DP201AT is a 120 mm axial fan rated for 220 V mains input and 0.09 A current draw. It delivers 80 CFM airflow at 2500 RPM with a noise level of 48 dB-A. Ball bearings provide a 50000-hour rated lifespan for continuous-duty environments.

Mains wiring and mounting check

Verify that your chassis or equipment enclosure accepts a 120 x 120 x 25 mm frame and has a 220 V AC supply circuit with appropriate fusing. Confirm the two-wire lead length reaches your terminal block or connector without strain. Ensure the 450 g mass is supported by the mounting points.

Ball-bearing reliability benefit

The ball-bearing design reduces friction wear compared to sleeve alternatives, sustaining the rated airflow over the 50000-hour service interval. This lowers the frequency of fan replacements in medical, rail, industrial and telecommunications cabinets where downtime is costly.

Highlights

  • High airflow of 80 CFM for effective case cooling
  • Direct 220 V AC operation without external power supply
  • Ball-bearing design rated for 50,000 hours of continuous use
  • Low 0.09 A current draw keeps power consumption at 19 W
  • 48 dB(A) noise level at 2500 RPM for balanced acoustics

Specifications

Air Flow>80 CFM

Questions about this item

Does the fan ship with mounting screws or a power cable, or must I buy them separately?

The unit is supplied as the bare 120 mm motor and frame; mounting hardware and a mains-rated power lead are not included and must be sourced separately.

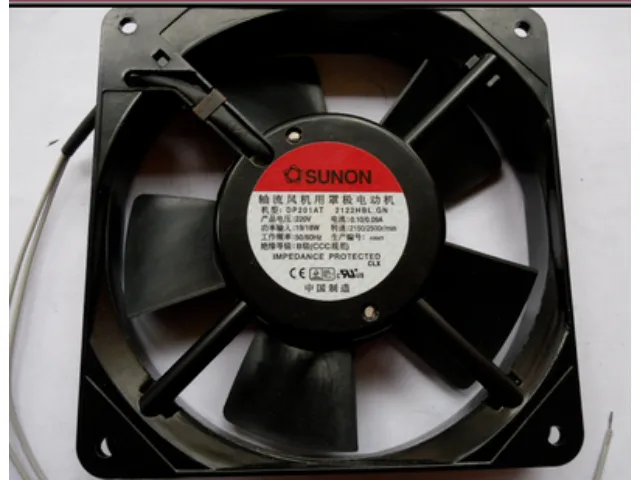

How do I decide between the DP201AT 2122HBT and 2122HBL.GN variants listed in the title?

Both share the same 220 V, 0.09 A, 2500 RPM, 80 CFM and 48 dB ratings; the suffix difference is a manufacturer batch code, so either version will deliver identical airflow and noise performance.

What does the 80 CFM rating actually deliver inside a typical chassis?

At 2500 RPM the fan moves 80 CFM through a 120 mm by 25 mm frame, producing 48 dB of noise and drawing 19 W from a 220 V supply — expect strong directional airflow suited to industrial or rack enclosures rather than quiet desktop builds.
