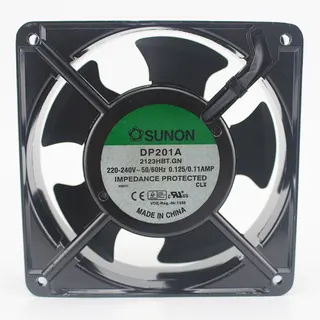

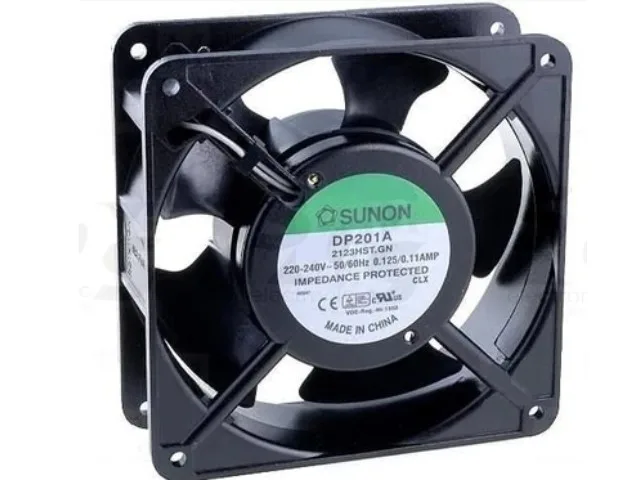

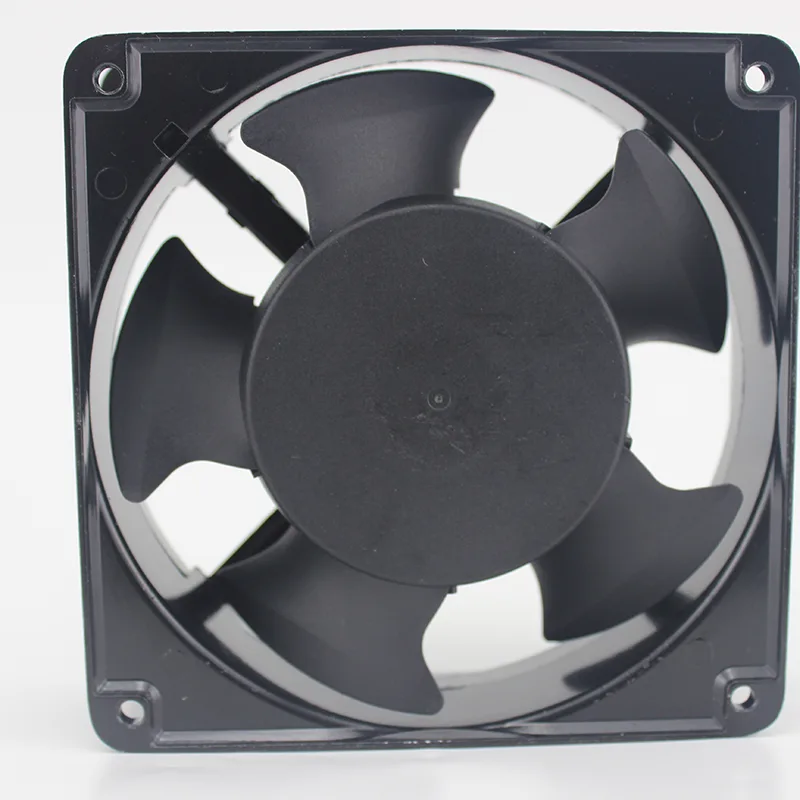

120 mm square aluminium frame AC case fan, 38 mm deep, black rotor and silver housing

Fans

Fans DP201A 2123HBT 220V 120mm case fan

SKU CH-CCMF-9QT38 MPN DP201A

120 mm AC case fan runs on 220–240 V, delivers 160–188 m³/h airflow at 2750–3050 rpm with 42–48 dBA noise

  • High airflow of 160 to 188 m³/h cools dense component layouts
  • Double ball bearing extends operating life in continuous use
  • AC 220 V direct connection removes need for extra power supply
  • Wide -20 °C to 85 °C range suits industrial environments
  • Compact 120 mm square frame fits standard case mounts

Industrial-grade AC case fan

The Fans DP201A is a 120 mm square AC fan built around a genuine SUNON 2123HBT motor with an aluminium frame and dual ball bearings. It runs directly from 220 V to 240 V mains at 50 Hz or 60 Hz, drawing 19 W to 20 W. The unit is rated for continuous operation in environments from -20 °C to 85 °C.

Sustained-load airflow and noise

At 50 Hz the fan spins at 2 750 r/min and moves 160 m³/h with a static pressure of .33 Inch-H₂O while producing 42 dBA. At 60 Hz the speed rises to 3 050 r/min, airflow reaches 188 m³/h, static pressure climbs to .38 Inch-H₂O and noise increases to 48 dBA. These figures are steady-state ratings, not peak bursts.

Mains-powered interface limits

Because the fan connects straight to 220 V–240 V AC, it cannot be speed-controlled by a motherboard PWM header or a standard 12 V DC fan controller. Wiring requires mains-rated cabling and appropriate safety isolation. The 38 mm thickness and 120 mm mounting pattern suit industrial chassis and server enclosures that accept AC-powered axial fans.

Highlights

  • High airflow of 160 to 188 m³/h cools dense component layouts
  • Double ball bearing extends operating life in continuous use
  • AC 220 V direct connection removes need for extra power supply
  • Wide -20 °C to 85 °C range suits industrial environments
  • Compact 120 mm square frame fits standard case mounts

Specifications

No published specifications for this item yet.

Questions about this item

How loud does the DP201A 2123HBT run at full speed in a closed case?

The fan produces 42 dBA at 50 Hz and 48 dBA at 60 Hz, measured at 2750 and 3050 r/min respectively.

What mains connection does the 220 V AC frame need to operate?

It plugs directly into a 220–240 V, 50/60 Hz socket; no external DC supply or motherboard header is required.

Will the 120 mm aluminium frame fit the same mounting holes as my older 120 mm fans?

Yes — the 120×120×38 mm dimensions match the standard 120 mm hole pattern used for decades.
