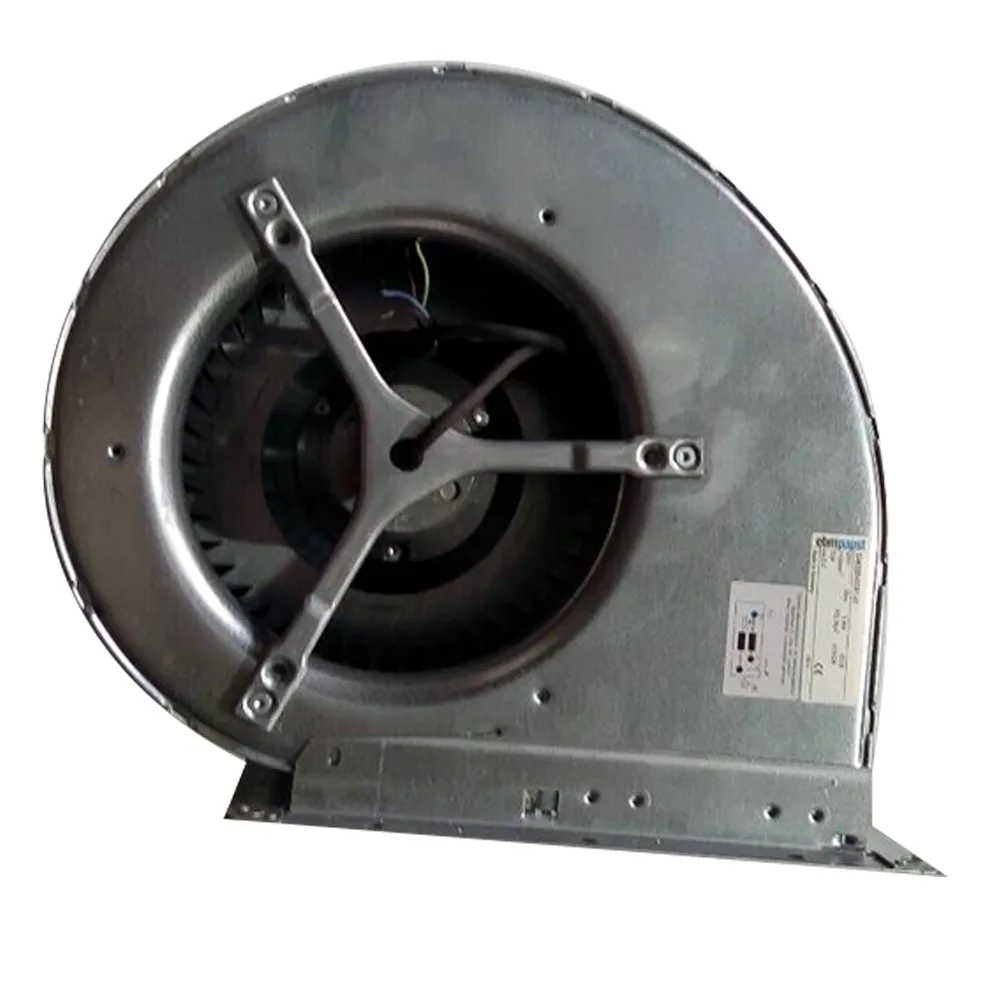

Double-inlet centrifugal blower, galvanised steel housing, 220 V AC motor

Fans

Fans D4E225-CC01-21 double inlet centrifugal blower 220V

SKU CH-D9A3-JD1MD

A double-inlet centrifugal blower for 230 V AC systems delivering 1150 rpm at 650 W with IP44 motor protection

  • Double inlet design moves more air efficiently
  • 1150 rpm speed delivers strong airflow performance
  • 650 W power consumption for high-capacity cooling
  • IP44 rated motor resists dust and moisture
  • Operates reliably from -25 °C to 50 °C

Industrial Double-Inlet Blower

The Fans D4E225-CC01-21 is an AC double-inlet centrifugal blower built for continuous industrial airflow. It suits engineers and maintenance teams who need a rugged, maintenance-free air mover for equipment cooling or ventilation systems.

Sustained Load Operation

The motor runs at 1150 rpm with a 650 W power draw and 2.9 A current at 230 VAC 50 Hz, rated for ambient temperatures from -25 °C to 50 °C. IP44 sealing and Class B insulation protect the windings during long duty cycles, while the starting current reaches 4.5 A.

Galvanized Steel Housing

The rivet-mounted galvanized steel body houses forward-curved multi-blades driven by an external rotor motor. A 25 µF 400 VDB capacitor is required for operation, and the unit must run at the lowest static pressure to prevent motor overload. Ball bearings allow mounting in any orientation.

Highlights

  • Double inlet design moves more air efficiently
  • 1150 rpm speed delivers strong airflow performance
  • 650 W power consumption for high-capacity cooling
  • IP44 rated motor resists dust and moisture
  • Operates reliably from -25 °C to 50 °C

Specifications

No published specifications for this item yet.

Questions about this item

How much heat and power does the 650 W blower generate when running continuously?

The blower draws 2.9 A at 230 VAC, consuming 650 W with a 25 µF capacitor; it is rated for ambient temperatures from -25 °C to 50 °C.

What electrical supply and mounting provisions must already be in place for this 220 V unit?

It requires a 230 VAC, 50 Hz single-phase supply capable of 4.5 A starting current and a mounting arrangement that accepts the riveted galvanized-steel housing with IP44 motor.

Will the D4E225-CC01-21 work alongside older 1150 rpm centrifugal fans in the same duct?

Yes, it runs at 1150 rpm with a minimum back-pressure of 100 Pa, so it can share ductwork with similar-speed blowers provided the system stays at or above that pressure.
