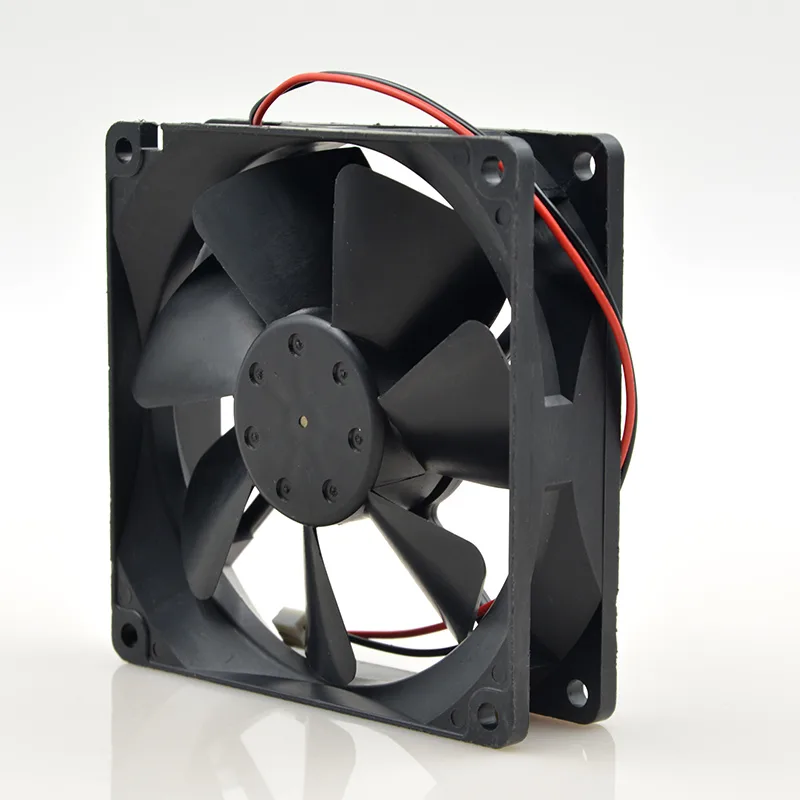

Black 80mm square axial fan with small 2-pin connector and 20cm leads

Fans

Fans D08A-24TU 24V 80mm case fan 44.1CFM

SKU CH-ZC5W-956SY MPN D08A-24TU

80 mm axial fan moves 44.1 CFM at 3250 RPM with 33.5 dBA noise on 24 V power

  • Air Flow44.1CFM
  • 24 V operation suits industrial and medical equipment
  • 1 CFM airflow delivers strong cooling for heat exchangers
  • 3250 RPM at 33.5 dBA keeps noise low in quiet environments
  • 11 A draw minimises power consumption in energy-sensitive systems
  • 80 × 80 × 25 mm frame fits tight enclosures with 20 cm lead

Compact 80 mm axial fan for 24 V systems

This 80 mm axial fan delivers 44.1 CFM of airflow at 3250 RPM, making it suited for tight enclosures that need directed cooling. It operates on a 24 V supply and uses a small two-pin connector for simple integration. The 25 mm frame depth keeps the profile low for space-constrained builds.

Thermal and acoustic profile in typical operation

At full speed the fan produces 33.5 dBA of noise while drawing 0.11 A from the 24 V line. The axial design moves air efficiently through heat exchangers or across component clusters without deep mounting requirements. Steady current draw means predictable thermal behaviour in continuous duty.

Included lead and mounting flexibility

A 20 cm two-wire lead is attached, allowing direct connection to a 24 V header or terminal block. No PWM or tachometer wire is present, so speed control requires external voltage regulation. The short cable suits internal routing in compact industrial or medical chassis.

Highlights

  • 24 V operation suits industrial and medical equipment
  • 1 CFM airflow delivers strong cooling for heat exchangers
  • 3250 RPM at 33.5 dBA keeps noise low in quiet environments
  • 11 A draw minimises power consumption in energy-sensitive systems
  • 80 × 80 × 25 mm frame fits tight enclosures with 20 cm lead

Specifications

Air Flow44.1CFM

Questions about this item

How is the 24V 80mm fan with a small 2P connector and 20cm leads installed in a chassis?

Mount the 80 x 80 x 25mm frame with four screws, align airflow direction arrows, then plug the 2-pin header into a 24V fan header or adapter; the short 20cm cable often requires an extension.

What maintenance or replacement will the 3250RPM axial fan need over time?

Expect dust buildup on blades and eventual bearing wear at 3250RPM; clean with compressed air periodically and replace the unit when noise rises above the rated 33.5dBA or airflow drops below 44.1CFM.

What limit appears first when the 0.11A 24V fan runs continuously under load?

The sleeve or ball bearing thermal limit typically arrives first; sustained 24V operation at 3250RPM raises internal temperature until lubricant degrades, increasing noise and reducing the 44.1CFM output.
