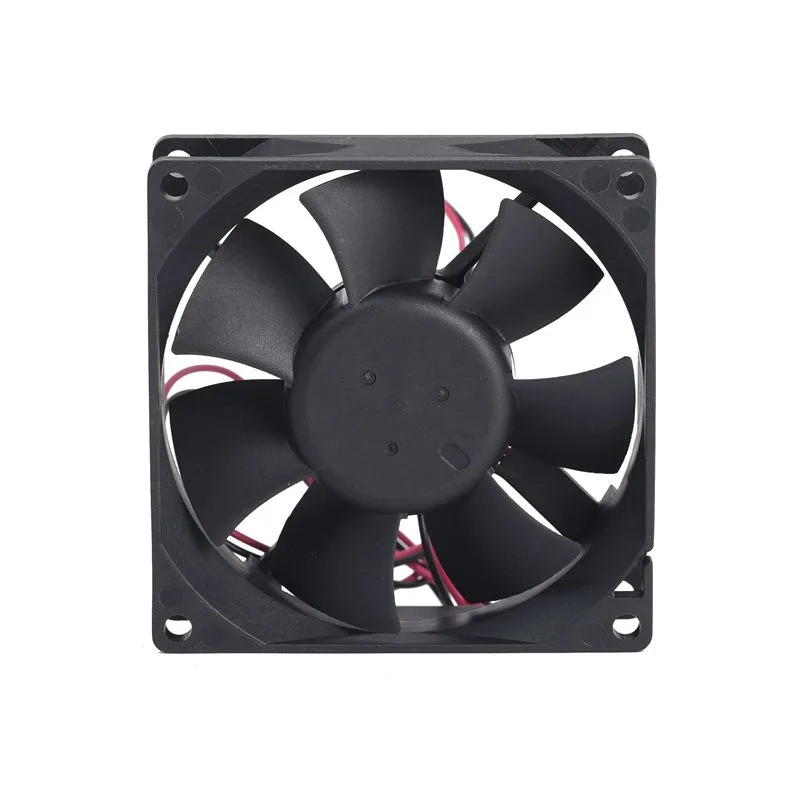

Square black 80 mm frame axial fan with centre hub and seven blades

Fans

Fans AFB0824HHSize 24V 0.15A 8025 80mm case fan

SKU CH-MPPG-8VR1A MPN AFB0824HHSize

An 80 mm axial fan running at 3250 RPM delivers 37.43 CFM at 34 dBA for industrial cooling

  • 24 V operation suits industrial power supplies
  • 3250 RPM delivers 37.43 CFM airflow
  • 34 dBA noise keeps environments quiet
  • 60 000 hour rated service life
  • 20 °C to 75 °C operating range

24 V axial case fan

This 80 mm Delta AFB0824HH axial fan runs on 24 V and draws 0.15 A at full speed. It is designed for industrial computers, power supplies and tight enclosures where a thin 25 mm profile is required.

Installation and common issues

The fan fits standard 8025 mounting holes and uses a two-wire 24 V supply. Polarity must be observed; reversing the wires will prevent the motor from starting. Dust buildup on the blades can raise noise above the rated 34 dBA over time.

Airflow capacity and limits

At 3250 RPM the fan delivers 37.43 CFM with a static pressure of 4.59 mmH₂O. That airflow suits small heat exchangers and dense component stacks but will not cool larger chassis or high-wattage loads. Operating range is -20 °C to 75 °C with a rated life of 60000 hours.

Highlights

  • 24 V operation suits industrial power supplies
  • 3250 RPM delivers 37.43 CFM airflow
  • 34 dBA noise keeps environments quiet
  • 60 000 hour rated service life
  • 20 °C to 75 °C operating range

Specifications

No published specifications for this item yet.

Questions about this item

How do I verify the fan is running correctly after installation?

Check that it spins at 3250 RPM and produces 37.43 CFM airflow with noise around 34 DBA.

What comes in the box and what must I source separately?

The package contains the 80 x 80 x 25 mm Delta AFB0824HH axial fan only; you need a 24 V power source and suitable mounting screws.

Which voltage version should I choose for my industrial power supply?

Select the 24 V model rated at 0.15 A tag current (0.09 A actual) and 7.2 W power draw.
