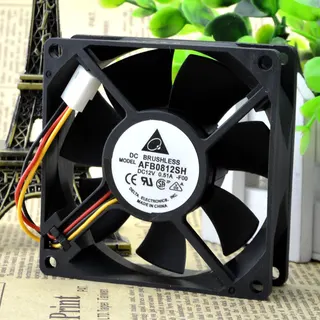

Square black 80 mm frame fan with three wires and a small connector

Fans

Fans AFB0812SH F00 12V 0.51A 8025 Double Ball Case Fan

SKU CH-H2VW-3KXCD

An 80 mm DC axial fan delivering 46.62 CFM airflow at 4000 RPM with double ball bearings and a 15 cm 3-pin lead

  • Delivers 46.62 CFM airflow for efficient cooling
  • Runs at 4000 RPM within 7.0V to 13.8V range
  • Double ball bearing motor ensures long-lasting reliability
  • Draws only 4.08 W at 0.51 A nominal current
  • Compact 80x80x25.4 mm frame fits tight spaces

80 mm DC axial fan for tight builds

This 80 mm DC axial fan fits the standard 8025 frame and runs on a 12 V supply with a 0.51 A nominal draw. It suits compact cases, rack units or appliance upgrades where a 4000 R.P.M. airflow of 46.62 CFM is required. The 3-pin 2510 connector and 15 cm lead simplify wiring in restricted spaces.

Double-ball bearing and wide voltage range

Double-ball bearings extend service life compared with sleeve alternatives and tolerate mounting in any orientation. The motor accepts 7.0 V to 13.8 V, so speed can be lowered for quieter operation or raised to the rated 40.0 dB-A level when maximum cooling is needed. Input power stays at 4.08 W across the range.

Replaces worn 80 mm case fans in legacy gear

The fan directly substitutes older 80 mm units that have become noisy or failed, restoring original airflow without redesigning the chassis. It is not suited for builds that demand larger-frame fans, PWM control or higher static pressure than the rated 6.78 mmH2O. The 100 % speed rating confirms consistent output at nominal voltage.

Highlights

  • Delivers 46.62 CFM airflow for efficient cooling
  • Runs at 4000 RPM within 7.0V to 13.8V range
  • Double ball bearing motor ensures long-lasting reliability
  • Draws only 4.08 W at 0.51 A nominal current
  • Compact 80x80x25.4 mm frame fits tight spaces

Specifications

No published specifications for this item yet.

Questions about this item

What connector does the AFB0812SH F00 use and what does the 3-pin layout limit?

It uses a 3-pin 2510 terminal plug; the third pin carries a tachometer signal but the fan runs at a fixed voltage, so speed control must come from the motherboard or a fan controller.

What are the exact mounting dimensions for this 8025 fan?

The frame measures 80 mm by 80 mm by 25.4 mm; the screw-hole pattern follows the standard 80 mm square pitch used on most cases and radiators.

How do you install the 15 cm lead without stretching it?

Route the 15 cm cable before securing the fan with four M3 screws; a common mistake is mounting the fan first and then finding the plug cannot reach the header.
