Black square 92mm frame 32mm deep double ball bearing 24V axial fan

Fans

Fans AD0924HB-Y71GLSize 92mm 24V case fan

SKU CH-DT78-T4RPQ MPN AD0924HB-Y71GLSize

A 92 mm 24 V case fan delivers 68.95 CFM airflow at 3500 RPM with double ball bearings

  • Delivers 68.95 CFM airflow for effective cooling
  • Runs at 3500 RPM to move air quickly
  • Double ball bearing extends operational lifespan
  • 24 V DC input suits industrial power systems
  • 0 dB(A) noise level keeps acoustics moderate

92 mm 24 V case fan

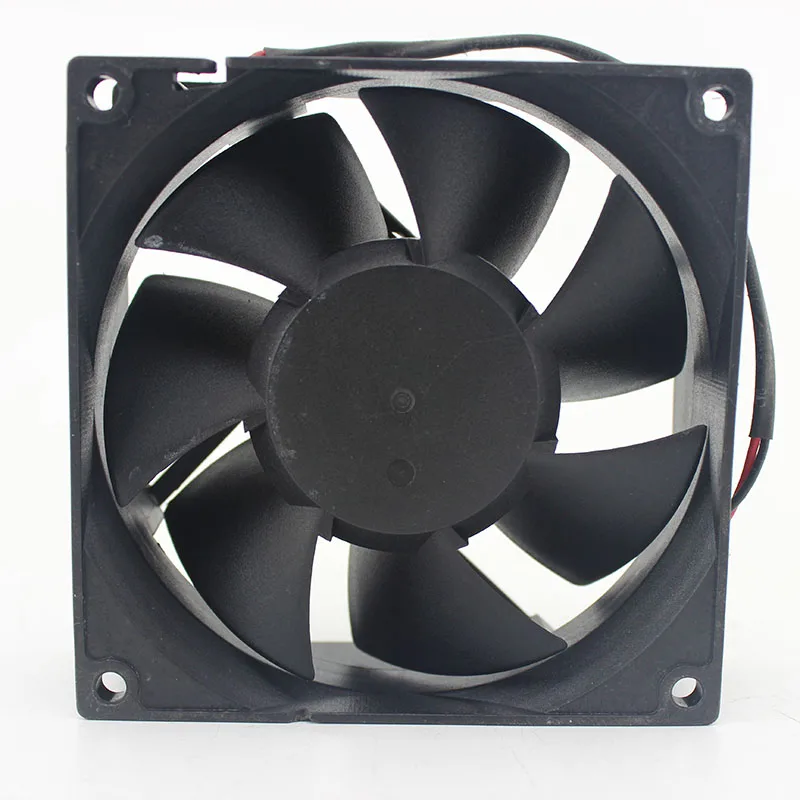

The ADDA AD0924HB-Y71GL is a 92 mm square axial fan with a 32 mm frame depth. It runs on 24 V DC, draws 0.35 A and consumes 8.4 W at 3500 RPM. Double ball bearings support continuous operation in industrial or server chassis.

Suited for 24 V cooling slots

This unit fits equipment that supplies a 24 V fan header and has clearance for a 32 mm thick frame. It is not suited for systems that only provide lower-voltage headers or for bays that cannot accommodate the full frame depth.

68.95 CFM at 1.95 mm H₂O

The fan delivers 68.95 CFM of airflow against 1.95 mm H₂O static pressure at 44.0 dB(A). That single figure determines whether it can move enough air through the intended restriction.

Highlights

  • Delivers 68.95 CFM airflow for effective cooling
  • Runs at 3500 RPM to move air quickly
  • Double ball bearing extends operational lifespan
  • 24 V DC input suits industrial power systems
  • 0 dB(A) noise level keeps acoustics moderate

Specifications

No published specifications for this item yet.

Questions about this item

What power supply do I need for the 24V DC input?

A 24 V DC source capable of at least 0.35 A is required to run the fan at its rated 8.4 W.

Will the 92 mm frame and 32 mm depth fit the mounting holes on my existing chassis?

The fan measures 92 mm by 92 mm with a 32 mm thickness, matching standard 92 mm mounting patterns.

How can I confirm the fan is spinning at the rated 3500 RPM after installation?

Connect a tachometer or motherboard fan header to the speed signal wire and verify a reading near 3500 RPM with airflow around 68.95 CFM.
