Black die-cast aluminium axial fan with glass-fibre PBT blades and terminal connections

Fans

Fans AC220V SK162AP 17251 control cabinet cooling fan

SKU CH-STNV-EWCS4

AC220V shaded-pole fan with die-cast aluminium housing, PBT blades, two-ball bearings and UL/CUL/TUV/CE/RoHS verification for control-cabinet cooling

  • AC 220 V operation suits industrial control cabinets
  • Two-ball bearing rated for 50 000 hours at 25 °C
  • Die-cast aluminium housing with UL 94V-0 PBT blades
  • UL, CUL, TUV, CE and RoHS verified
  • Impedance or radial protected shaded-pole motor

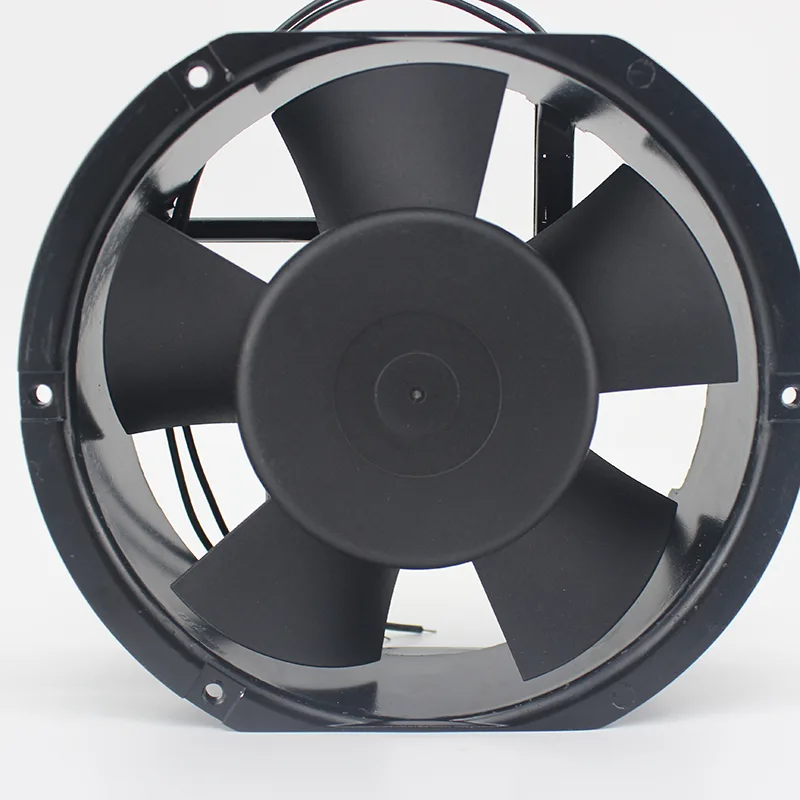

Shengkwei SK162AP 17251 AC220V Cabinet Fan

This Shengkwei SK162AP 17251 fan is built for control-cabinet cooling where 220 VAC mains power is the only supply. Its shaded-pole motor with impedance or radial protection drives PBT glass-fibre blades inside a black-painted die-cast aluminium housing. Two-ball bearings and UL, CUL, TUV, CE and RoHS verification suit industrial and rail applications.

220 VAC Direct Connection and Temperature Limits

The unit connects directly to 220 VAC through T-terminal push-on or lead-wire terminations, so no separate DC supply or inverter is required. It withstands a 1,500 VAC hi-pot test for one minute at 50 or 60 Hz. Operating ambient range spans -20 °C to +55 °C, and the UL 94V-0 blade material meets flame-retardance needs in enclosed cabinets.

Upgrade from Sleeve-Bearing or Lower-Rated Fans

Replacing sleeve-bearing fans with this two-ball-bearing model extends service life to 50,000 hours at 25 °C or 30,000 hours at 65 °C. The jump is worth it when cabinets run continuously in hot or vibration-prone environments such as medical, rail or new-energy equipment. It is not suited for builds that need variable-speed PWM control or low-voltage DC operation.

Highlights

  • AC 220 V operation suits industrial control cabinets
  • Two-ball bearing rated for 50 000 hours at 25 °C
  • Die-cast aluminium housing with UL 94V-0 PBT blades
  • UL, CUL, TUV, CE and RoHS verified
  • Impedance or radial protected shaded-pole motor

Specifications

No published specifications for this item yet.

Questions about this item

Which connection type should I choose for my cabinet wiring?

The SK162AP 17251 is offered with either T-Terminal push-on connectors or W-Lead wire leads; pick the style that matches your existing terminal block or harness.

What does the 50000-hour life expectancy mean at typical operating temperatures?

At 25 °C ambient the two-ball bearing design is rated for 50000 hours continuous running; at 65 °C the rating drops to 30000 hours.

How does the 1500 VAC withstand voltage affect installation safety?

The fan passes a one-minute 1500 VAC dielectric test, confirming the insulation meets UL, CUL, TUV, CE and RoHS requirements for 220 V mains-powered cabinets.
