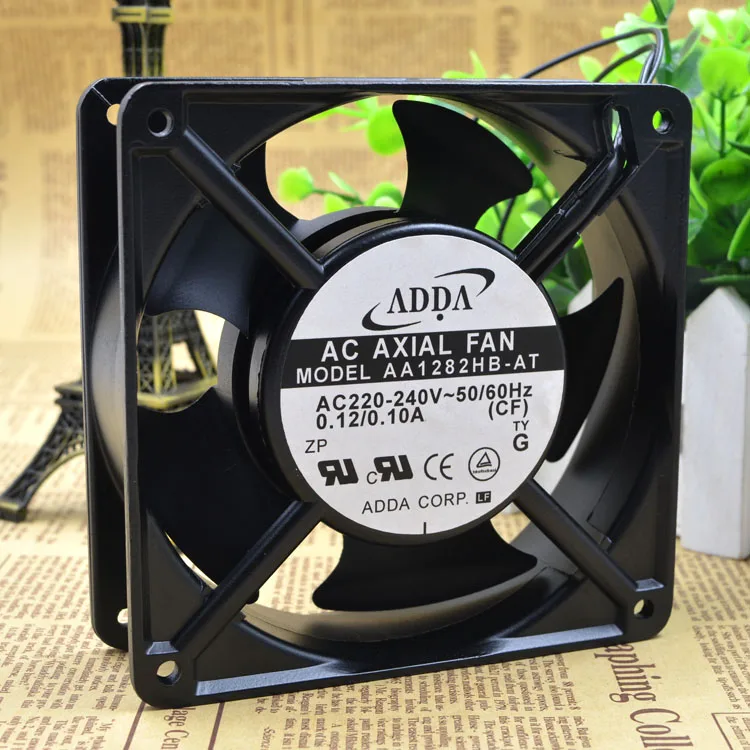

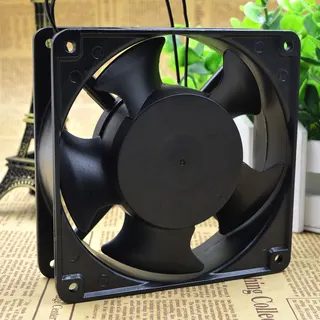

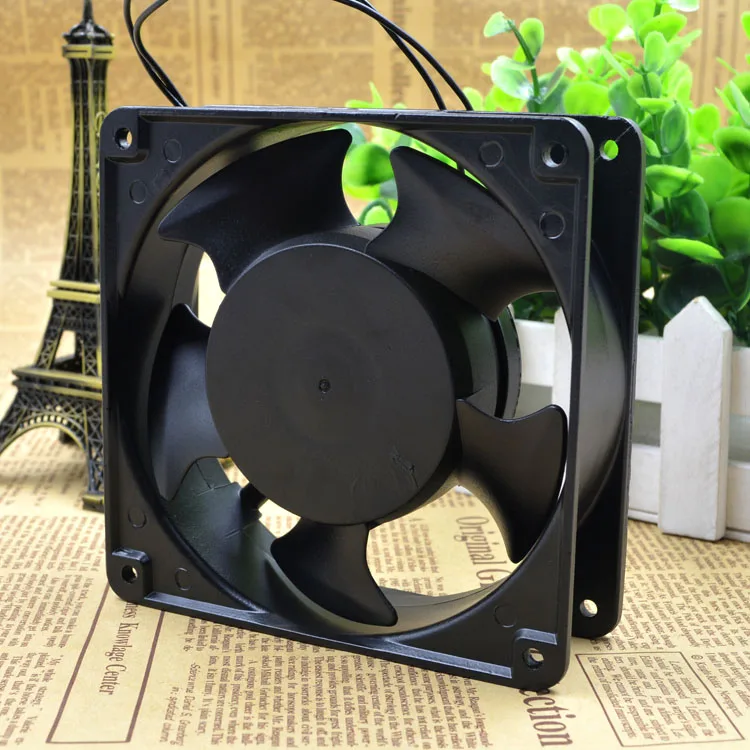

Square black AC case fan 120 by 120 by 38 mm with wire leads

Fans

Fans AA1282HB-AWSize 120*120*38MM AC220V case fan

SKU CH-1VKS-18VVY MPN AA1282HB-AWSize

A 120 mm AC 220-230 V axial fan delivering 91.2 to 102.5 CFM at 2700 to 3100 RPM with 42.6 to 47.0 dBA noise

  • High airflow up to 102.5 CFM for effective cooling
  • Quiet operation at 42.6 DBA on low speed
  • Runs on standard 220-230 V AC mains power
  • Wide -25 to 75 °C operating temperature range
  • Rated 50,000 hour service life for long-term reliability

Industrial AC Cooling Fan

The ADDA AA1282HB-AW is a 120 mm square axial fan that runs directly from 220-230 V AC mains. It delivers 91.2 to 102.5 CFM at 2700 to 3100 RPM with a static pressure of 7.87 to 8.13 mmAq.

High-Airflow Mains-Powered Applications

This fan suits equipment that already uses AC power and needs strong airflow without a separate DC supply. It is not for builds that require 12 V DC operation, PWM speed control, or a standard three-pin motherboard header.

220-230 V AC Input Voltage

The unit connects straight to mains voltage, drawing 0.12 A at 50 Hz and 0.10 A at 60 Hz for 27.6 W or 20.7 W respectively. This single electrical characteristic decides whether the fan can be installed in the target chassis or rack.

Highlights

  • High airflow up to 102.5 CFM for effective cooling
  • Quiet operation at 42.6 DBA on low speed
  • Runs on standard 220-230 V AC mains power
  • Wide -25 to 75 °C operating temperature range
  • Rated 50,000 hour service life for long-term reliability

Specifications

No published specifications for this item yet.

Questions about this item

What power source does the AA1282HB-AWSize need to run?

The fan runs directly from 220-230 V AC mains supply, drawing 0.12/0.10 A at 27.6/20.7 W.

Can the AA1282HB-AWSize replace a 12 V DC case fan in my PC?

No, it requires 220-230 V AC and a 120*120*38 mm mounting frame, so it cannot connect to a standard motherboard fan header.

How do I confirm the AA1282HB-AWSize is operating correctly after wiring it?

At 50 Hz it should spin at 2700 RPM with 91.2 CFM airflow and 42.6 dBA noise; at 60 Hz expect 3100 RPM, 102.5 CFM and 47.0 dBA.
