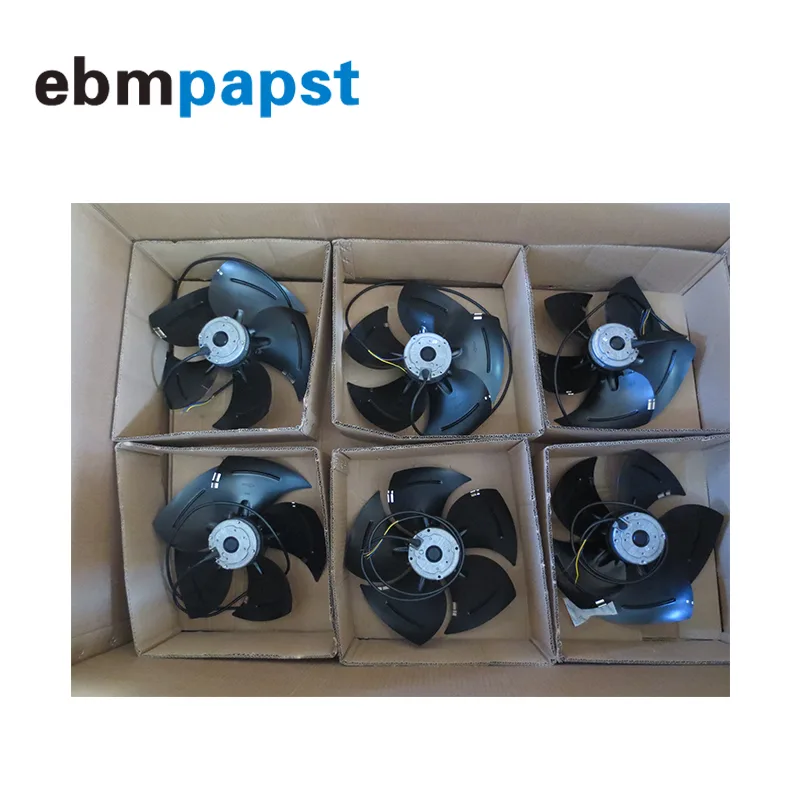

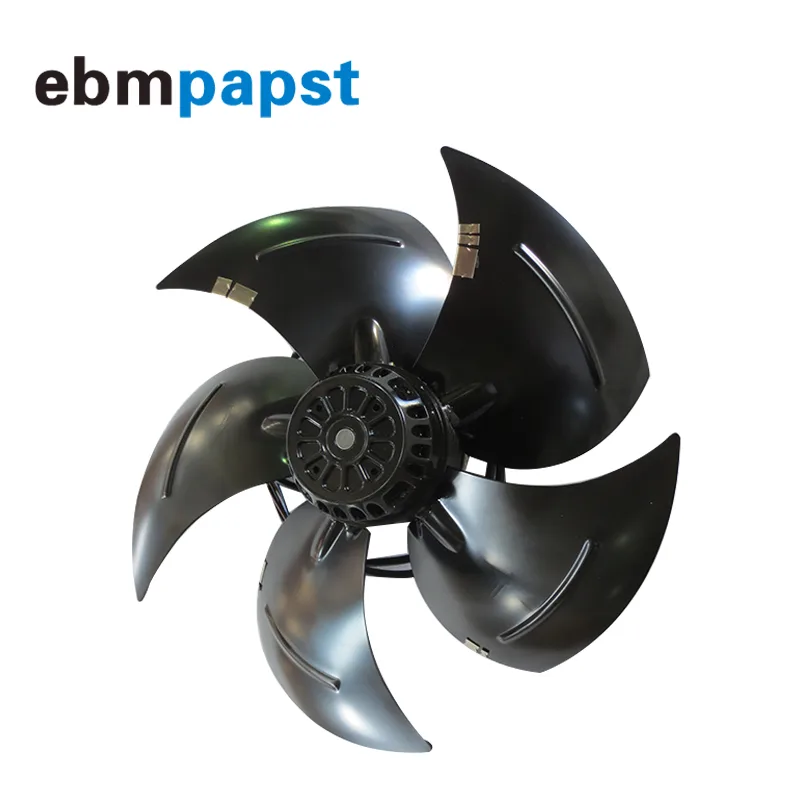

New ebmpapst 230V axial fan, compact metal housing, black blades

Fans

Fans A4E350-AP06-33 S4E350-AP06-30/B03 230V axial fan

SKU CH-88PE-G36VN

230 V axial fan moves up to 35 000 m³/h at 1 400–1 590 rpm with 130–190 W power draw and CE approval

  • 230 V AC operation suits standard mains power
  • 1400 rpm at 50 Hz delivers steady airflow
  • 130 W power draw at 50 Hz keeps running costs low
  • 25 °C to 55 °C range handles harsh environments
  • CE certified for European safety compliance

Product identity

The ebmpapst 230V axial fan is built for industrial equipment and rack enclosures that need high-volume airflow through heat exchangers. It suits integrators who require a compact external-rotor motor with 100% speed control via analog or serial interface.

Pre-installation checks

Verify that your system supplies 230 VAC at 50 Hz or 60 Hz and can accommodate the 4 µF 400 VDB motor capacitor. Confirm the mounting depth matches the fan’s compact profile and that the steel-plate housing fits your enclosure’s cut-out pattern.

Thermals noise and power

At 50 Hz the fan draws 0.58 A and 130 W while delivering 1400 min⁻¹; at 60 Hz it draws 0.83 A and 190 W at 1590 min⁻¹. Maximum back pressure reaches 90 Pa at 50 Hz and 60 Pa at 60 Hz. Operating range spans -25 °C to 55 °C.

Highlights

  • 230 V AC operation suits standard mains power
  • 1400 rpm at 50 Hz delivers steady airflow
  • 130 W power draw at 50 Hz keeps running costs low
  • 25 °C to 55 °C range handles harsh environments
  • CE certified for European safety compliance

Specifications

No published specifications for this item yet.

Questions about this item

Does the fan ship with a mounting bracket or power cable, or must they be purchased separately?

The fan is supplied as the motor and impeller assembly only; mounting hardware and a mains lead are not included and must be sourced separately.

Should I choose the 50 Hz or 60 Hz operating point for a 230 V supply?

At 230 V the fan runs at 1400 min⁻¹ drawing 0.58 A and 130 W on 50 Hz, or 1590 min⁻¹ drawing 0.83 A and 190 W on 60 Hz; select the frequency that matches your local mains.

What does the 35000 m³/h airflow figure mean once the fan is installed in a case?

That value is the free-air maximum; in a real chassis the 90 Pa (50 Hz) or 60 Pa (60 Hz) back-pressure rating shows how much static pressure the fan can develop against filters and grilles.
