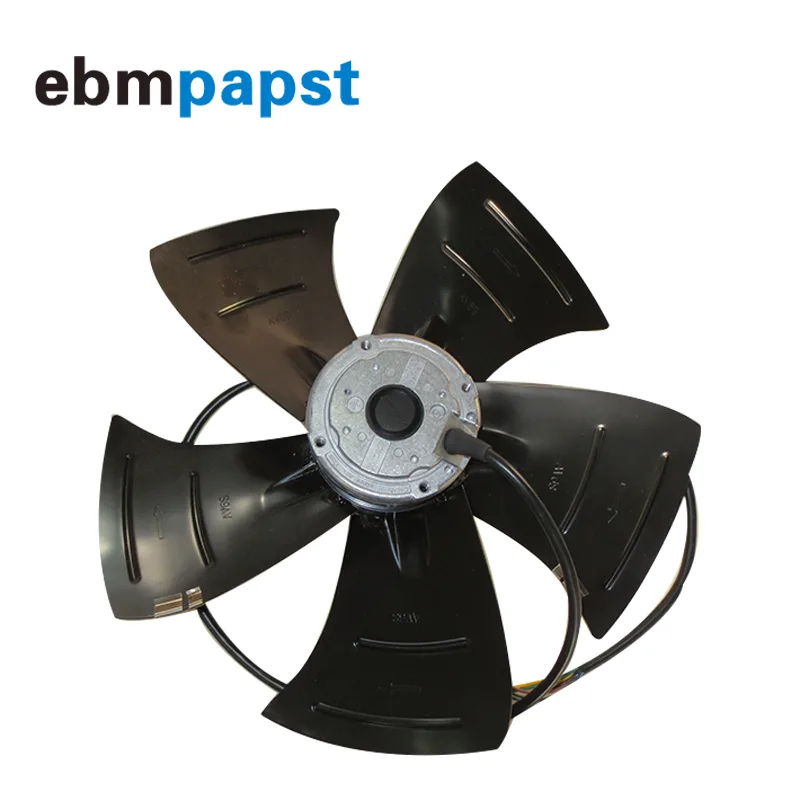

Large 400mm axial case fan with metal frame and blades

Fans

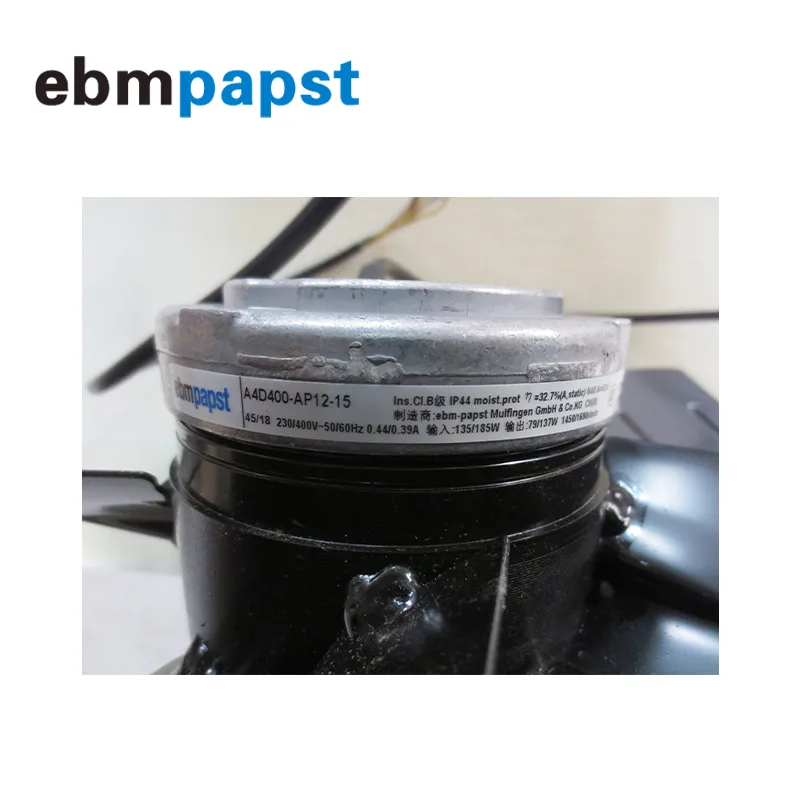

Fans A4D400-AP12-15 400mm 185W 230V Axial case fan

SKU CH-V7ZE-YNJ91

A 400 mm axial fan moves up to 35000 m³/h at 1450–1690 rpm while drawing 135–185 W from a 230 V three-phase supply

  • Moves up to 35000 m³/h for strong thermal exchange
  • Runs at 1450 rpm on 50 Hz or 1690 rpm on 60 Hz
  • Draws 135 W at 50 Hz and 185 W at 60 Hz
  • Operates from -25 °C to 40 °C ambient range
  • Sturdy steel plate housing with compact external-rotor motor

Industrial airflow solution

This 400 mm axial fan is built for equipment that requires high-volume air exchange in a compact frame. It suits integrators and maintenance teams working on industrial cabinets, heat exchangers or ventilation systems where installation depth is limited and reliable continuous operation is essential.

Verify power and environment

Confirm that your supply provides 230 V AC at either 50 Hz or 60 Hz and that the wiring can handle a starting current of up to 3.0 A. The unit is rated for ambient temperatures between -25 °C and 40 °C, so ensure the mounting location stays within this range.

Integrated motor and control

The external-rotor motor combines the impeller and electronics in one housing, reducing installation depth and removing the need for a separate drive. Speed can be adjusted across the full range through an analogue or serial interface, allowing precise airflow matching without extra controllers.

Highlights

  • Moves up to 35000 m³/h for strong thermal exchange
  • Runs at 1450 rpm on 50 Hz or 1690 rpm on 60 Hz
  • Draws 135 W at 50 Hz and 185 W at 60 Hz
  • Operates from -25 °C to 40 °C ambient range
  • Sturdy steel plate housing with compact external-rotor motor

Specifications

No published specifications for this item yet.

Questions about this item

What accessories come with the fan and what must I source separately?

The unit is supplied as the axial fan assembly with its external-rotor motor; mounting hardware, guards, speed-control wiring and any ducting are not included and must be obtained separately.

Should I choose the 230 V or 400 V winding for my supply?

Select the 230 V winding for a 230 VAC 50/60 Hz mains supply; choose the 400 V winding only if your installation provides 400 VAC three-phase power.

What does the 35 000 m³/h airflow figure mean once the fan is installed in a chassis?

35 000 m³/h is the free-air maximum; in a real case the delivered flow will be lower and depends on the static pressure the fan develops against filters, grilles and component resistance.
