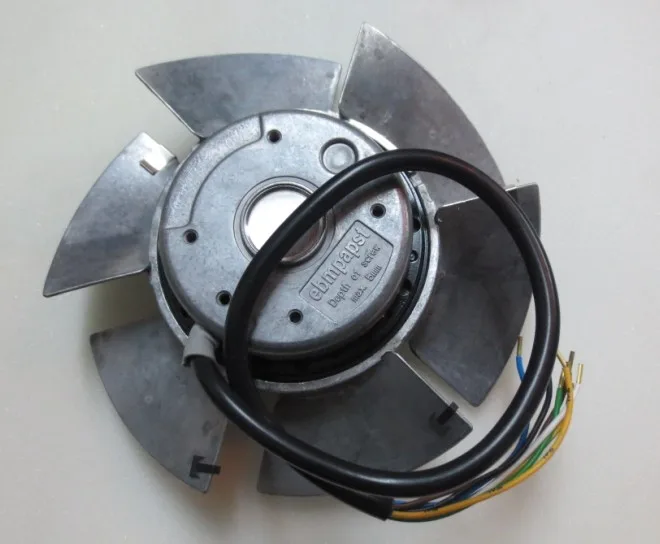

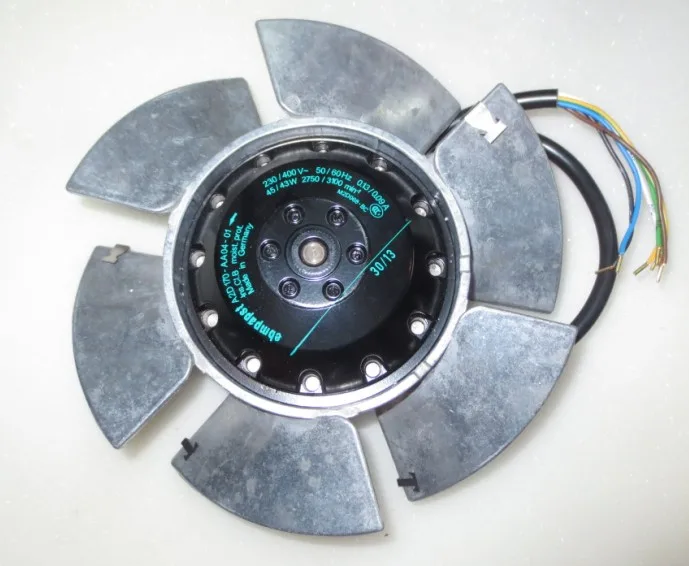

Axial case fan with metal frame and blade assembly

Fans

Fans A2D170-AA04-01 230/400V 45/43W case fan

SKU CH-S7VT-5MWZZ

Three-phase axial fan operates at 230/400 VAC with 45/43 W power draw and speeds of 2750/3100 rpm

  • Dual-voltage 230/400 VAC operation fits varied supplies
  • 45 W at 50 Hz and 43 W at 60 Hz keep draw low
  • 2750 rpm at 50 Hz and 3100 rpm at 60 Hz deliver strong airflow
  • CE approved for 230 V and 400 V networks
  • Operates from -25 °C to 70 °C for harsh environments

Industrial three-phase axial fan

This three-phase axial fan runs on 230/400 VAC supplies and draws 45 W at 50 Hz or 43 W at 60 Hz. It is built for industrial enclosures and rack cabinets that need high-volume forced-air cooling. The motor reaches 2750 rpm at 50 Hz and 3100 rpm at 60 Hz, delivering airflow up to 35000 m³/h. It suits integrators who specify CE-approved components for continuous duty.

Mounts in standard fan trays and ducting

The compact external-rotor design keeps installation depth low, so the unit fits existing fan trays, heat-exchanger housings or ducted plenums without redesign. Wiring options include star or delta configurations for 230 V or 400 V three-phase feeds. Speed is adjustable from 0 to 100 % via an analog or serial control interface, letting the system match airflow to thermal load. The steel plate frame provides rigid mounting points for vibration-sensitive racks.

Stable output from -25 °C to 70 °C ambient

At 50 Hz the fan operates up to 50 °C ambient; at 60 Hz the limit rises to 70 °C, while the cold-end rating stays at -25 °C for both frequencies. Starting current peaks at 0.4 A on 230 V 50 Hz and 0.22 A on 400 V 60 Hz, settling to 0.23 A and 0.09 A respectively once running. These margins mean airflow remains consistent during prolonged high-temperature operation without thermal derating.

Highlights

  • Dual-voltage 230/400 VAC operation fits varied supplies
  • 45 W at 50 Hz and 43 W at 60 Hz keep draw low
  • 2750 rpm at 50 Hz and 3100 rpm at 60 Hz deliver strong airflow
  • CE approved for 230 V and 400 V networks
  • Operates from -25 °C to 70 °C for harsh environments

Specifications

No published specifications for this item yet.

Questions about this item

What is the maximum ambient temperature this fan can handle at 50 Hz?

The fan is rated for a maximum ambient temperature of 70 °C at 50 Hz and 230 V.

What is the power consumption when running continuously at 230 V and 60 Hz?

It draws 43 W at 230 V and 60 Hz, with a current draw of 0.16 A.

What voltage supply is required to operate this three-phase fan?

It requires a three-phase supply of either 230 V or 400 V AC at 50 or 60 Hz.
