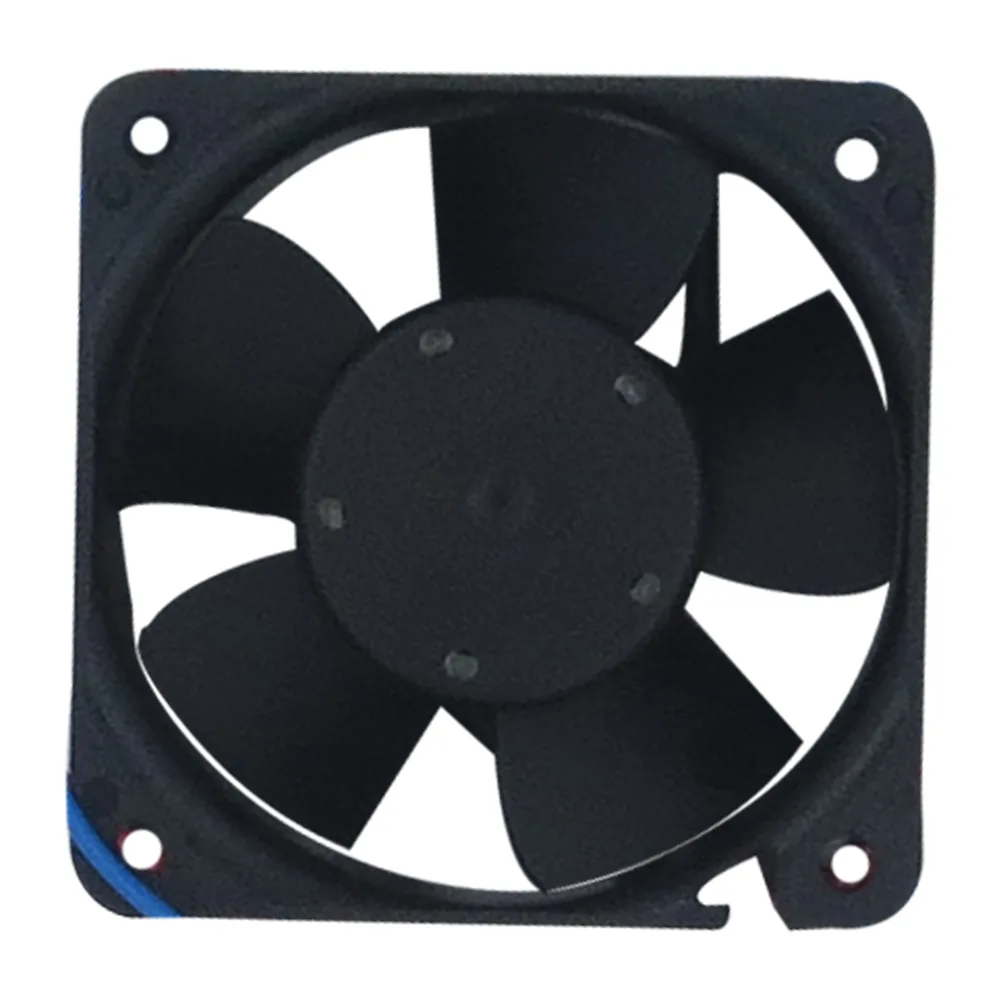

Square black plastic 60 mm frame axial fan with brass inserts and Molex connector lead

Fans

Fans 614NHHMotor 6025 DC24V 3.0W case fan

SKU CH-5Y26-N1MV9 MPN 614NHHMotor

A German-made 60 × 60 × 25 mm axial fan delivers 54 m³/h at 6850 rpm from a 24 V, 3.0 W motor with IP20 protection and a 313 mm Molex lead

  • Delivers 54 m³/h airflow for efficient case cooling
  • Runs on 24 V DC at only 3.0 W power draw
  • Spins at 6 850 RPM for strong static pressure
  • Compact 60 × 60 × 25 mm frame fits tight builds
  • Molex 22-01-2025 connector enables plug-and-play installation

60 mm DC axial fan

The Fans 614NHHMotor is a 60 mm by 25 mm axial case fan built around an ebm-papst DC motor that runs on 24 V and draws 0.125 A. It spins at 6 850 r/min and moves up to 54 m³/h of air through a plastic frame with brass threaded inserts on both sides. A 313 mm lead terminates in a Molex 22-01-2025 connector for direct wiring.

Compact builds needing controlled airflow

This fan suits small-form-factor chassis or industrial enclosures where a 60 mm mounting pattern and IP20 protection are required. Its 3.0 W power draw and speed-control capability make it a good match for noise-sensitive or thermally constrained projects. Builders who need higher static pressure, larger frame sizes or PWM control should look at other models.

Fits M3 mounts and frees header space

The four M3 threaded sleeves let the unit bolt straight to standard 60 mm fan mounts without extra brackets. Because it connects via a Molex plug rather than a motherboard header, it leaves fan headers free for other components while still allowing analog or serial speed control through external circuitry.

Highlights

  • Delivers 54 m³/h airflow for efficient case cooling
  • Runs on 24 V DC at only 3.0 W power draw
  • Spins at 6 850 RPM for strong static pressure
  • Compact 60 × 60 × 25 mm frame fits tight builds
  • Molex 22-01-2025 connector enables plug-and-play installation

Specifications

No published specifications for this item yet.

Questions about this item

What power supply voltage does the 614NHHMotor require?

The fan runs on 24 V DC and draws 0.125 A, so the system must provide a 24 V rail with at least 3.0 W available.

Can the 6025 frame and M3 threaded sleeves fit the mounting holes on my existing chassis?

The 60 mm square frame with 25 mm depth uses M3 threaded inserts on both sides, matching standard 60 mm fan cut-outs and screw patterns.

How do I confirm the fan is spinning at the rated 6850 r/min after installation?

Connect the Molex 22-01-2025 plug, power the 24 V supply, and read the tachometer signal through the motherboard or fan controller to verify 6850 r/min.
