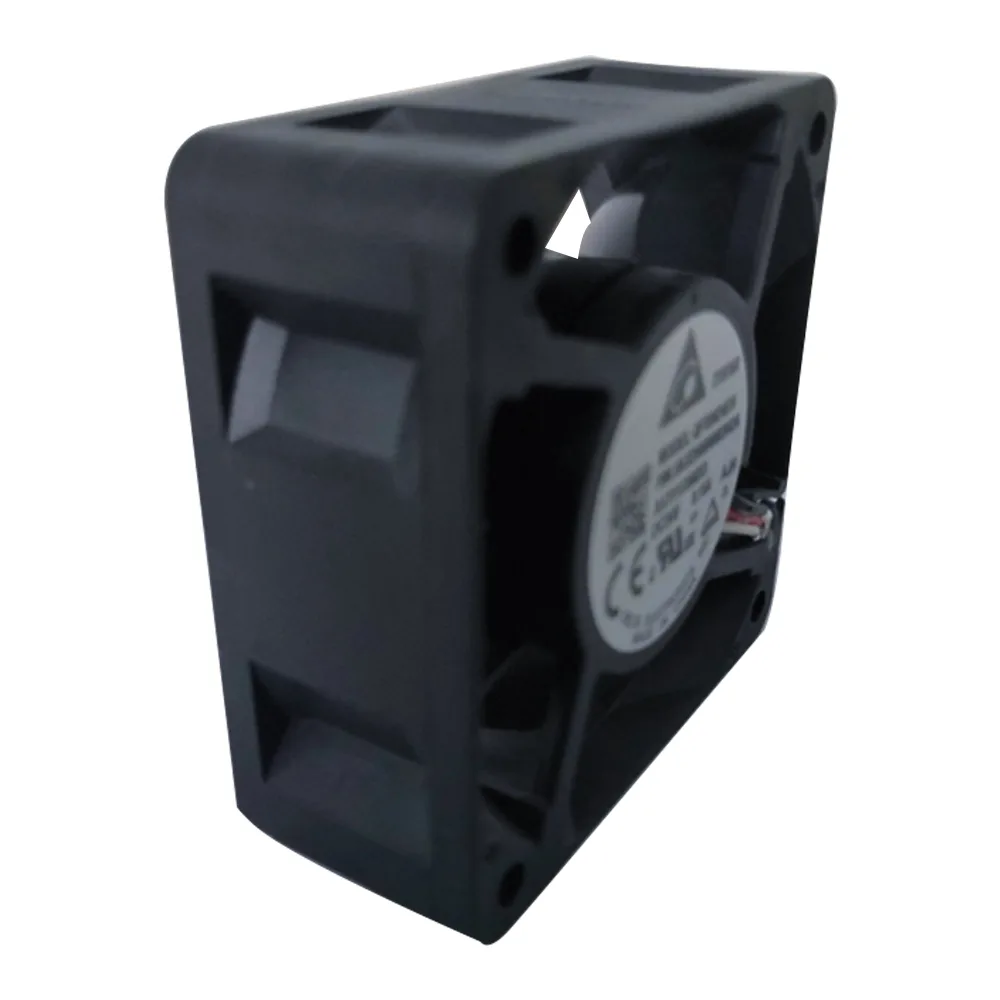

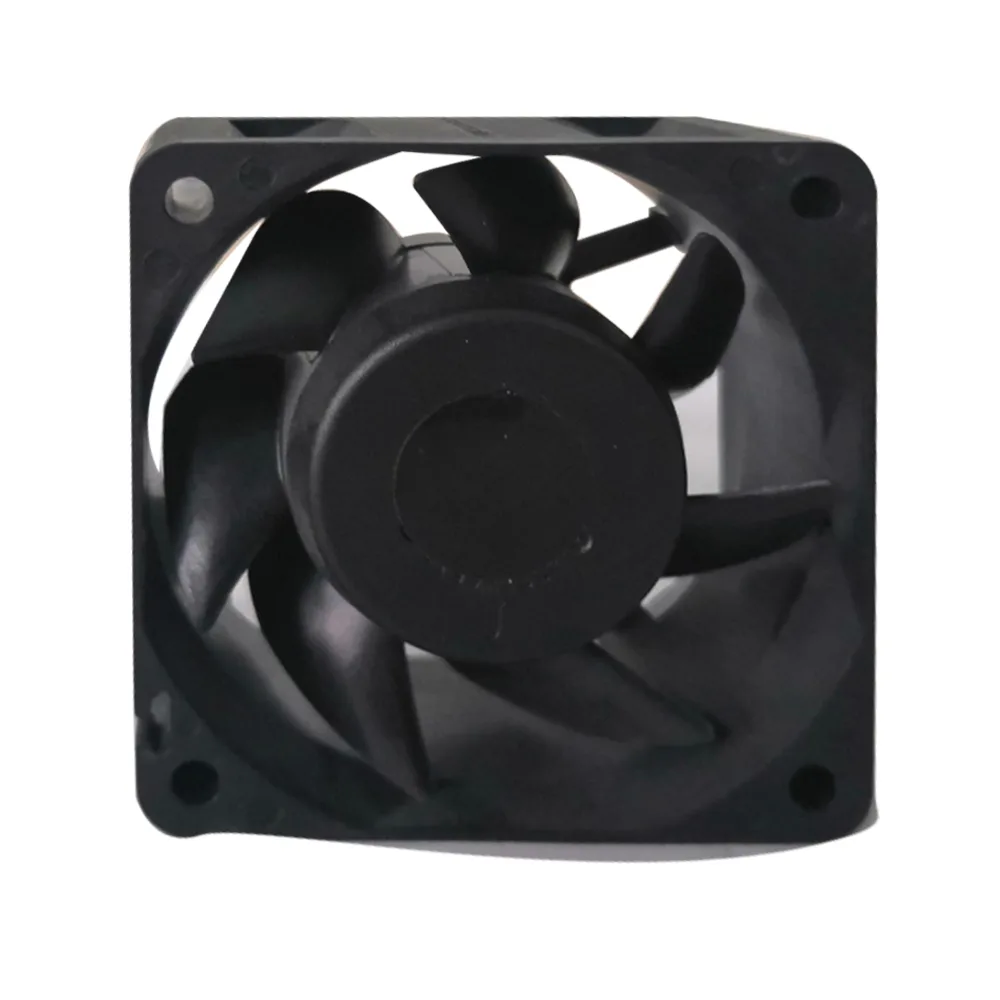

Square black 60mm frame 25.4mm thick axial fan with seven blades and four mounting holes

Fans

Fans 6025 24V 0.15A 60mm case fan

SKU CH-KBDX-H4837

A 60 mm 24 V DC case fan delivering 38.3 CFM at 6800 RPM with ball bearing and IP55 rating

  • 60 mm square frame fits tight chassis spaces
  • 24 V DC operation matches industrial power rails
  • 6800 RPM delivers 38.3 CFM for strong airflow
  • Ball bearing rated for continuous duty cycles
  • IP55 housing resists dust and water ingress

Delta QFR0624EH 60 mm 24 V case fan

The Delta QFR0624EH is a 60 mm square axial fan designed for 24 V DC operation. It draws 0.15 A and delivers 5.76 W of power at 6800 RPM. The unit measures 60 mm by 60 mm by 25.4 mm and weighs 79.83 g. It is rated IP55 and uses a ball bearing.

Suited for 24 V industrial and embedded cooling

This fan suits equipment that supplies a 24 V DC fan header and needs 38.3 CFM airflow with 135.5 Pa static pressure. It is not for builds that only provide lower-voltage headers or that require variable-speed control. The operating range spans -10 °C to 70 °C.

24 V fixed-speed specification decides fit

The single specification that determines compatibility is the 24 V DC fixed-speed design. If the target system cannot supply 24 V or needs PWM regulation, this model will not work.

Highlights

  • 60 mm square frame fits tight chassis spaces
  • 24 V DC operation matches industrial power rails
  • 6800 RPM delivers 38.3 CFM for strong airflow
  • Ball bearing rated for continuous duty cycles
  • IP55 housing resists dust and water ingress

Specifications

No published specifications for this item yet.

Questions about this item

How long can the 6800 RPM motor run before the ball bearing reaches its 70 °C limit?

The fan is rated for continuous operation up to 70 °C ambient, so the bearing life is not limited by temperature under normal conditions.

What noise and heat output should I expect when the fan runs at 6800 RPM all day?

It produces 46.5 dBA and draws 5.76 W, so expect a moderate hum and minimal heat added to the case.

Which connector must my power supply provide for the 24 V 0.15 A input?

The fan requires a 24 V DC source capable of at least 0.15 A; verify your PSU or controller has a matching 24 V output.
