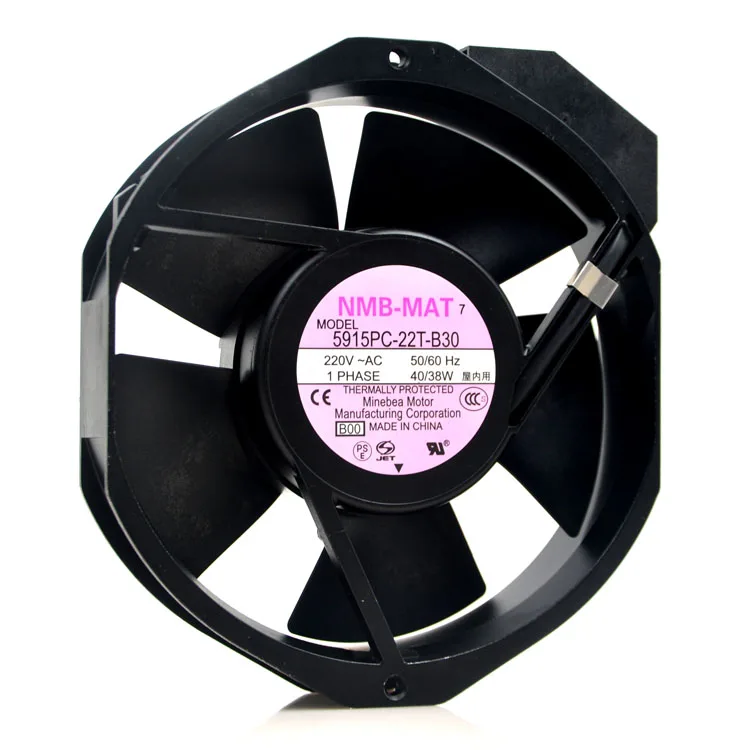

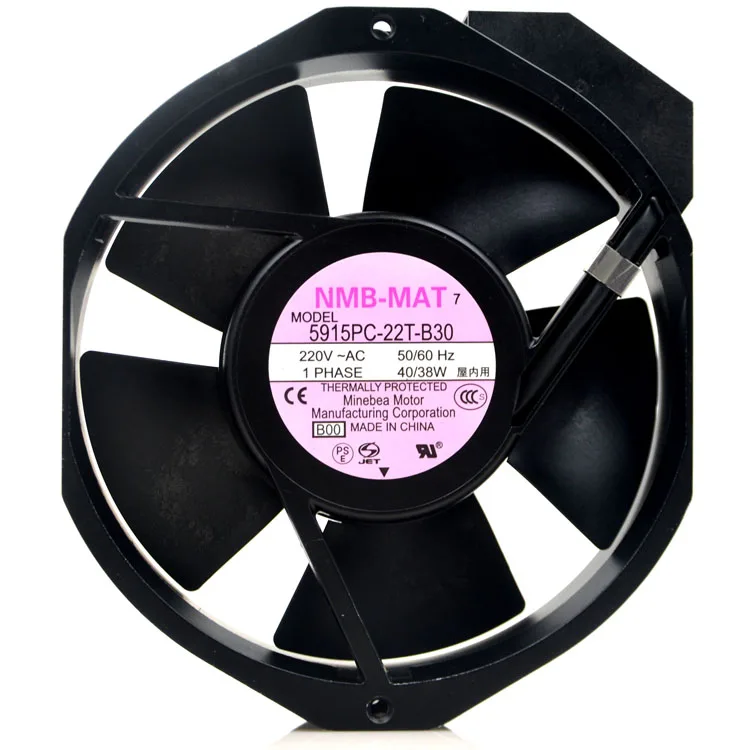

Rectangular 172mm AC axial fan with metal frame and two terminals

Fans

Fans 5915PC-22T-B30 220V AC axial case fan 172mm

SKU CH-46GE-DSK5J

A 220 V AC axial case fan measuring 172 mm square and 38 mm thick, delivering 212.0 CFM at 3200 RPM with ball bearings and 56 dB noise

  • High airflow of 212.0 CFM for effective cooling
  • Ball bearing ensures reliable long-term operation
  • 220 VAC rated voltage suits industrial power systems
  • 0 W power draw at 3200 RPM delivers strong performance
  • Wide operating range from -10 to 70 °C suits harsh environments

220V AC axial fan for industrial cooling

The Fans 5915PC-22T-B30 is a 172mm axial fan designed for 220V AC mains operation. It delivers 212.0 CFM airflow at 3200 RPM with a ball bearing for continuous duty in equipment such as inverters, UPS units and industrial enclosures. The terminal connection uses two terminals for direct wiring.

Suited for mains-powered chassis and rack builds

Installers who need a high-airflow fan that runs directly from 220V AC will find this model fits standard 172mm x 150mm x 38mm cut-outs. It is not for builders who require a low-voltage DC fan, a PWM speed signal or a quieter unit for a desktop PC. The 56 dB noise level and fixed 3200 RPM speed limit its use in noise-sensitive environments.

220V AC rating decides compatibility

The single specification that determines whether this is the right part is the 220V AC voltage rating. Only systems supplying mains-level AC power can drive this fan; any DC-only or lower-voltage chassis will need a different solution.

Highlights

  • High airflow of 212.0 CFM for effective cooling
  • Ball bearing ensures reliable long-term operation
  • 220 VAC rated voltage suits industrial power systems
  • 0 W power draw at 3200 RPM delivers strong performance
  • Wide operating range from -10 to 70 °C suits harsh environments

Specifications

No published specifications for this item yet.

Questions about this item

Should I choose the 5915PC-22T-B30 or another model like the K2E190-AB77-09?

The 5915PC-22T-B30 is a 172mm axial fan rated for 220VAC with 212.0 CFM airflow and 3200 RPM. The alternative models listed are centrifugal or EC fans with different voltage ratings and form factors, making them incompatible as direct replacements.

What does the 212.0 CFM airflow figure mean once the fan is installed in a server chassis?

At 3200 RPM the fan moves 212.0 CFM (6.00 m³/min) against 0.865 inches of water static pressure. In a real chassis the delivered airflow will be lower depending on filter density, grille restriction and internal component layout.

The fan uses 2 terminals — does that limit speed control or monitoring?

The two terminals provide only line and neutral connection for 220VAC power. There is no tachometer output or PWM input, so speed control and RPM monitoring are not supported on this model.
