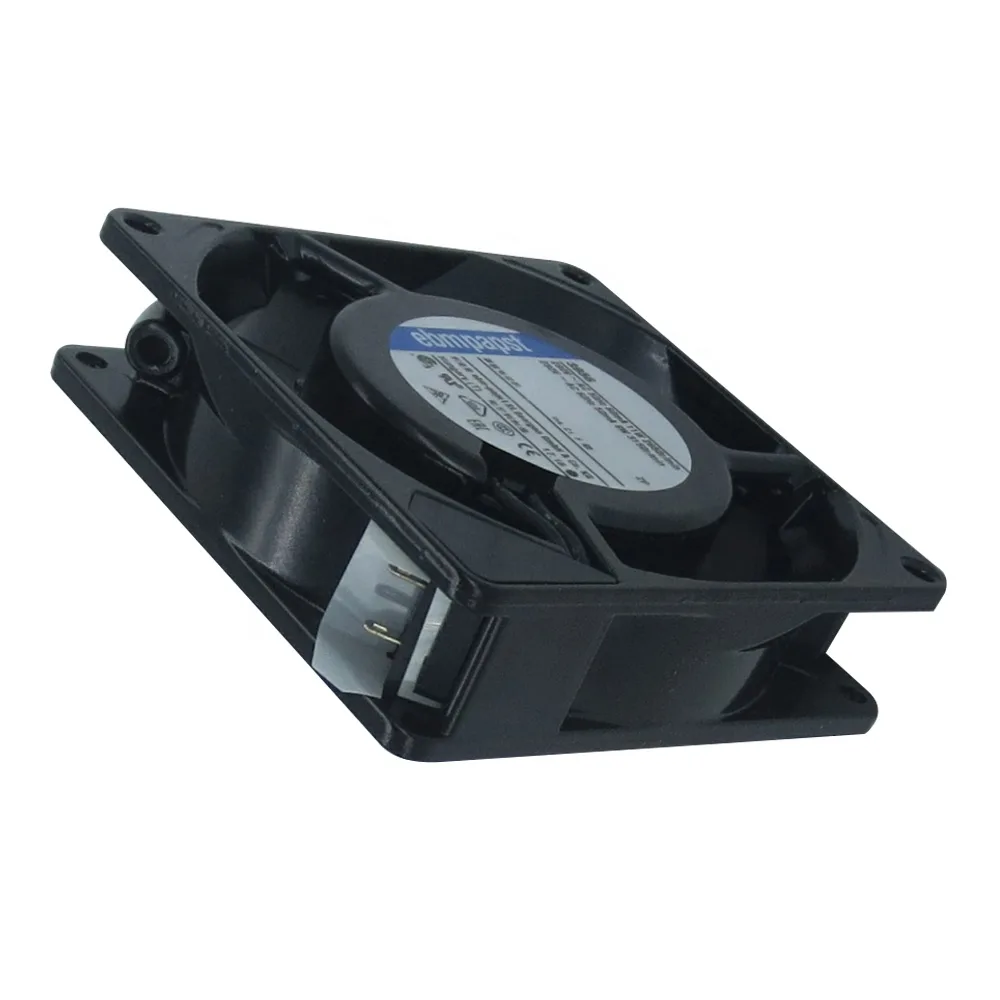

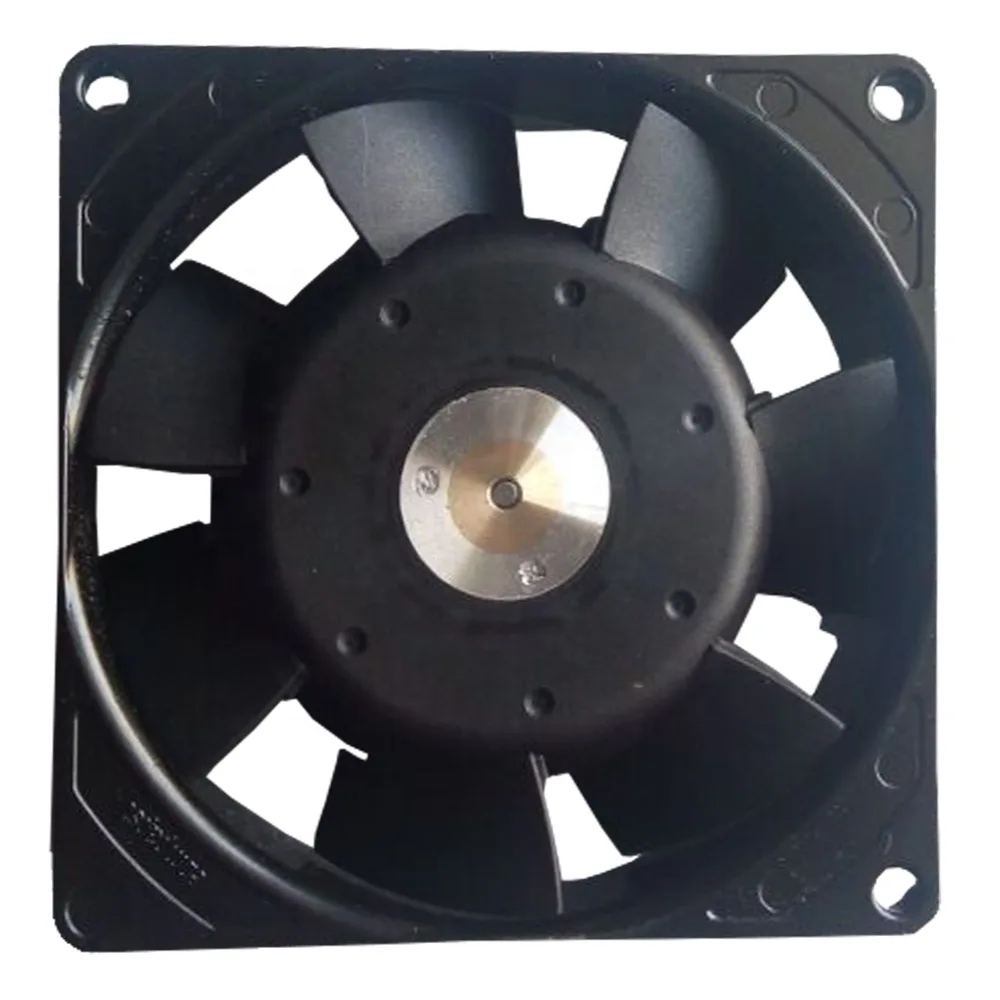

Square black 92 mm axial fan with black blades, 25.4 mm deep, AC 230 V terminals visible

Fans

Fans 3956 9225 AC 230 V 92 mm case fan

SKU CH-FSGE-PWHVH

A 92 mm AC case fan delivering 59 m³/h airflow at 35 dB with a ball bearing and 230 V supply

  • AC 230 V operation plugs straight into mains power
  • 59 m³/h airflow cools compact enclosures efficiently
  • 35 dB noise level keeps background sound low
  • Ball bearing construction extends service life
  • Motor overload protection safeguards against thermal damage

Ebmpapst 3956 series 92 mm AC fan

This axial fan from the 3900 series measures 92 x 92 x 25.4 mm and runs directly on 230 V AC mains voltage. It delivers 59 m³/h of airflow at 2650 rpm while consuming 11 W. The ball bearing construction and motor overload protection are designed for continuous industrial or equipment cooling.

Suited for fixed 230 V AC installations

The fan is intended for equipment that provides a 230 V AC supply and can accommodate the 92 mm square footprint. Builders who need a fan powered from a motherboard header or a low-voltage DC source will find this model incompatible with their system.

230 V AC supply voltage

This single specification determines whether the fan can be used in the target device. Only installations that deliver 230 V AC at 50 Hz or 60 Hz can power the unit directly.

Highlights

  • AC 230 V operation plugs straight into mains power
  • 59 m³/h airflow cools compact enclosures efficiently
  • 35 dB noise level keeps background sound low
  • Ball bearing construction extends service life
  • Motor overload protection safeguards against thermal damage

Specifications

No published specifications for this item yet.

Questions about this item

How can I verify the 3956 9225 fan is running correctly after installation?

Check that the fan spins at 2650 rpm, moves roughly 59 m³/h of air and produces about 35 dB of noise; the motor overload protection should keep it running without stalling.

What comes in the box with the 3956 9225 and what must I source separately?

The package contains the 92 mm AC axial fan itself; you will need to provide a 230 V AC mains connection, mounting screws and any finger guard or filter you require.

Which version of the 3956 series should I choose for a 230 V AC supply?

Select the 230 V AC model (3956 9225) rather than the 115 V AC variant; both share the 92 × 92 × 25.4 mm frame, ball bearing, 11 W draw and 2650 rpm speed.
