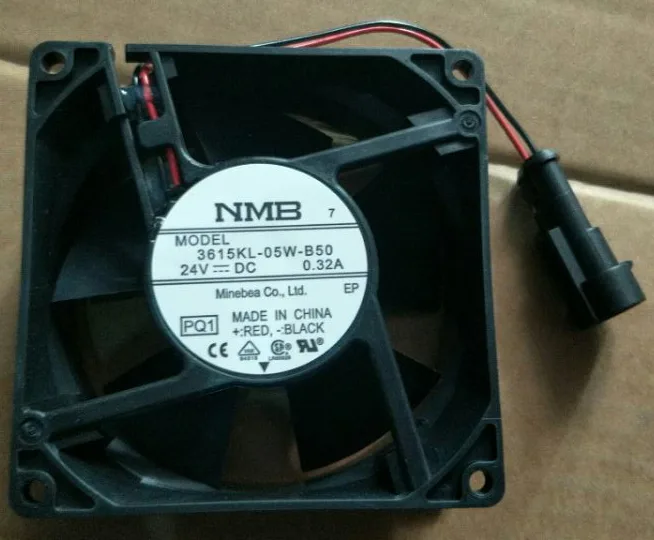

Black square axial fan with two red and black wires

Fans

Fans 3615KL-05W-B50Size 9238 24V case fan

SKU CH-QXCW-MD7XQ MPN 3615KL-05W-B50Size

A 92 mm 24 V case fan delivering 40.2 CFM at 3400 RPM with 35.0 dBA noise

  • New authentic NMB fan ensures reliable cooling
  • 24 V DC operation suits industrial and vehicle systems
  • 3400 RPM delivers 40.2 CFM airflow
  • Low 35.0 dBA noise keeps environments quiet
  • 18 cm leads with colour-coded wires simplify installation

92 mm 24 V axial fan for industrial cooling

This 92 mm axial fan runs on 24 V DC and draws 0.32 A for 3.12 W. It spins at 3400 RPM and delivers 40.2 CFM at 40.2 Pa static pressure. Acoustic output is rated at 35.0 dBA. The unit is suited for equipment enclosures, medical devices, rail vehicles and similar industrial cooling tasks.

Verify 24 V DC supply

Your system must provide a stable 24 V DC source capable of at least 0.32 A. The lead wires are 18 cm long with black for negative and red for positive. Confirm the connector matches your header or prepare to splice. No PWM or tachometer signal wire is present.

90×90×38 mm frame with 18 cm flying leads

The plastic frame measures 90 by 90 by 38 mm and uses a two-wire pigtail. The short lead length keeps cable routing tidy inside tight chassis but may require extension for distant headers. Mounting holes accept standard 92 mm fan screws for secure fixing in vibration-prone environments.

Highlights

  • New authentic NMB fan ensures reliable cooling
  • 24 V DC operation suits industrial and vehicle systems
  • 3400 RPM delivers 40.2 CFM airflow
  • Low 35.0 dBA noise keeps environments quiet
  • 18 cm leads with colour-coded wires simplify installation

Specifications

No published specifications for this item yet.

Questions about this item

Does the fan arrive with a 2-wire lead and an 18 cm cable ready to connect?

Yes, the unit ships with a 2-wire lead, 18 cm long, black for negative and red for positive, so it can be wired straight to a 24 V source.

Is the 3400 RPM, 40.2 CFM model the only variant offered under the 3615KL-05W-B50 part number?

The listed part number corresponds to a single specification: 24 V, 0.32 A, 3.12 W, 3400 RPM, 40.2 CFM and 35.0 dB-A, with no alternative speed or airflow versions shown.

What does the 35.0 dB-A noise rating mean when the fan is installed in a typical enclosure?

At 3400 RPM the fan produces 35.0 dB-A, a level comparable to a quiet office, so it remains unobtrusive in most industrial or medical cabinets.
