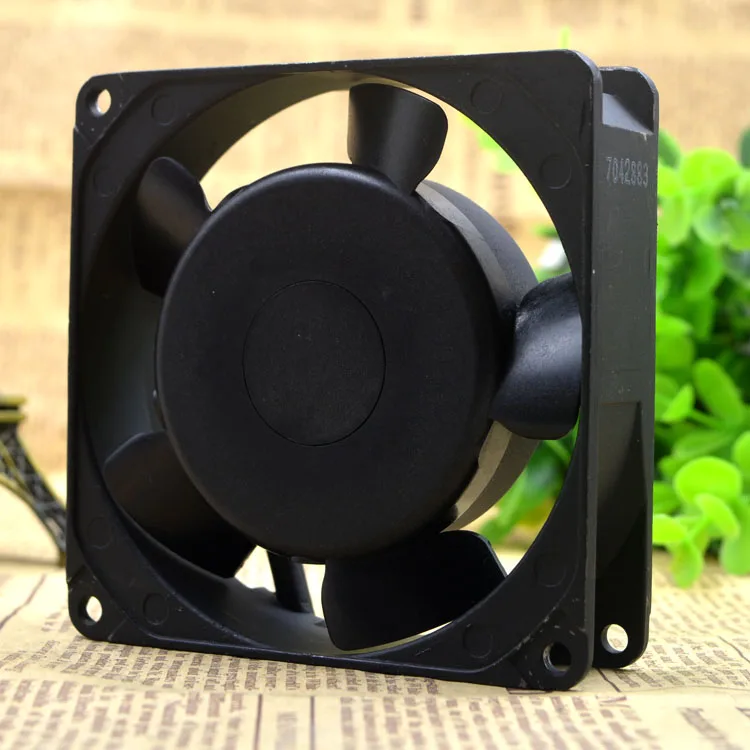

Square black plastic 92mm frame axial fan with centre hub and radial blades

Fans

Fans 3610PS-23W-B30 230V 13W 9225 case fan

SKU CH-FR4Y-502AY MPN 3610PS-23W-B30

230 V axial case fan delivering 28.0 CFM at 2600 RPM with 34 dBA noise

  • Moves 28.0 CFM at 2600 RPM for steady airflow
  • Reaches 34.5 CFM at 3100 RPM when load rises
  • Runs at 34 dBA on low speed for quiet operation
  • Operates at 39 dBA on high speed within typical limits
  • Draws 13 W at 230 V for efficient cooling

Industrial cooling fan for 230 V mains

The NMB-MAT 3610PS-23W-B30 is a 92 mm square axial fan rated for 230 V AC at 50/60 Hz. It draws 0.090/0.070 A and consumes 13/10 W depending on line frequency. The unit delivers 28.0/34.5 CFM airflow at 2600/3100 RPM with a static pressure of 43.1/60.7 Pa. Acoustic output is specified at 34/39 dBA. It is built for continuous operation in industrial, medical and rail environments.

Suited for chassis and cabinet ventilation

This fan suits engineers integrating forced-air cooling into equipment that runs directly from 230 V AC without a separate DC supply. It fits standard 92*92*25 mm cut-outs and provides steady airflow for drive bays, inverter enclosures or rail-vehicle cabinets. Buyers needing PWM speed control, a 12 V or 24 V DC input, or a lower noise profile for desktop PCs should look at other models.

Steady output under continuous mains operation

Because the motor is designed for 230 V AC, its speed and airflow remain stable as long as line voltage and frequency are within spec. The dual-frequency rating (50/60 Hz) means performance shifts predictably between 2600 RPM and 3100 RPM without thermal throttling. Bearings and insulation are rated for sustained duty in industrial cleaning, new-energy vehicle and supermarket refrigeration applications.

Highlights

  • Moves 28.0 CFM at 2600 RPM for steady airflow
  • Reaches 34.5 CFM at 3100 RPM when load rises
  • Runs at 34 dBA on low speed for quiet operation
  • Operates at 39 dBA on high speed within typical limits
  • Draws 13 W at 230 V for efficient cooling

Specifications

No published specifications for this item yet.

Questions about this item

What power connection does the 230V 3610PS-23W-B30 need to run?

The fan requires a 230V AC supply at 50 or 60Hz and draws 0.090A at 50Hz or 0.070A at 60Hz.

Will the 92mm 3610PS-23W-B30 fit in the same cut-out as my existing 9225 fan?

Yes, the frame measures 92 by 92 by 25mm, matching the standard 9225 footprint.

How can I confirm the 3610PS-23W-B30 is spinning at the rated speed after installation?

At 50Hz it should run at 2600 RPM and at 60Hz at 3100 RPM; check with a tachometer or motherboard sensor.
