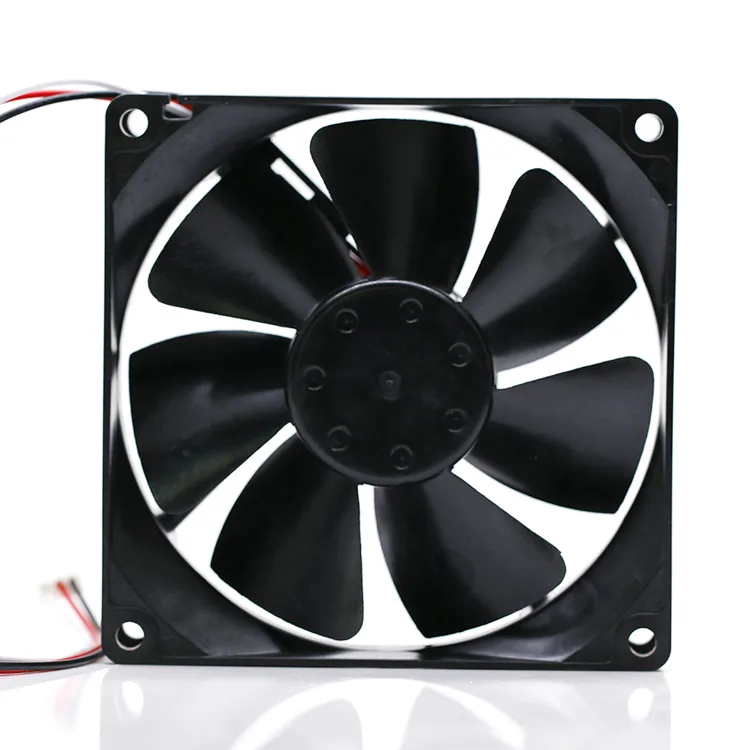

Square black 92 mm frame axial fan with seven blades and four mounting holes

Fans

Fans 3610KL-05W-B50Size 92×92×25mm 24V 0.2A case fan

SKU CH-170S-G9T0P MPN 3610KL-05W-B50Size

A 92 × 92 × 25 mm axial case fan running at 24 V and 0.2 A delivers 40–45 CFM at 3200 RPM with 41 dBA noise

  • Air Flow40-45 CFM
  • 24 V 0.2 A draw keeps power use low at 4.8 W
  • 3200 RPM delivers 40-45 CFM airflow for effective cooling
  • 41 dBA noise level suits quiet workstations and servers
  • 92 × 92 × 25 mm frame fits standard case mounts
  • 50 000 hour rated life supports long-term reliability

NMB 3610KL 92 mm Axial Fan

This 92 mm axial fan operates at 24 V and draws 0.2 A for a rated power of 4.8 W. It spins at 3200 RPM and delivers between 40 and 45 CFM of airflow with a static pressure of 48 Pa. The unit is rated for 50 000 hours of service life across a temperature range of -20 °C to 75 °C. Acoustic output is specified at 41 dBA.

Upgrade from Lower-CFM 92 mm Fans

Replace an older 92 mm fan that moves less air or runs louder at the same voltage. The jump is worthwhile when a chassis or heatsink needs more throughput without changing mounting holes or voltage rails. Builders staying with 24 V systems gain headroom without rewiring.

Cooling Capacity and Limits

The fan comfortably handles spot cooling for industrial electronics, medical devices and rail vehicle drives where 40-45 CFM clears moderate heat loads. It runs out when a dense radiator or high-restriction filter demands significantly higher static pressure than 48 Pa. The 25 mm thickness fits standard 92 mm mounts but leaves no room for thicker alternatives.

Highlights

  • 24 V 0.2 A draw keeps power use low at 4.8 W
  • 3200 RPM delivers 40-45 CFM airflow for effective cooling
  • 41 dBA noise level suits quiet workstations and servers
  • 92 × 92 × 25 mm frame fits standard case mounts
  • 50 000 hour rated life supports long-term reliability

Specifications

Air Flow40-45 CFM

Questions about this item

What are the mounting hole dimensions for the 92 mm square frame?

The fan has a 92 mm square frame with a 25 mm thickness; standard 92 mm case-fan mounting holes apply.

How do I connect the 24 V power leads correctly?

Connect the two wires to a 24 V DC source observing polarity; the fan draws 0.20 A (4.8 W) at 3200 RPM.

When should I plan to replace the fan based on its rated life?

The manufacturer rates the bearing life at 50000 hours of continuous operation.
