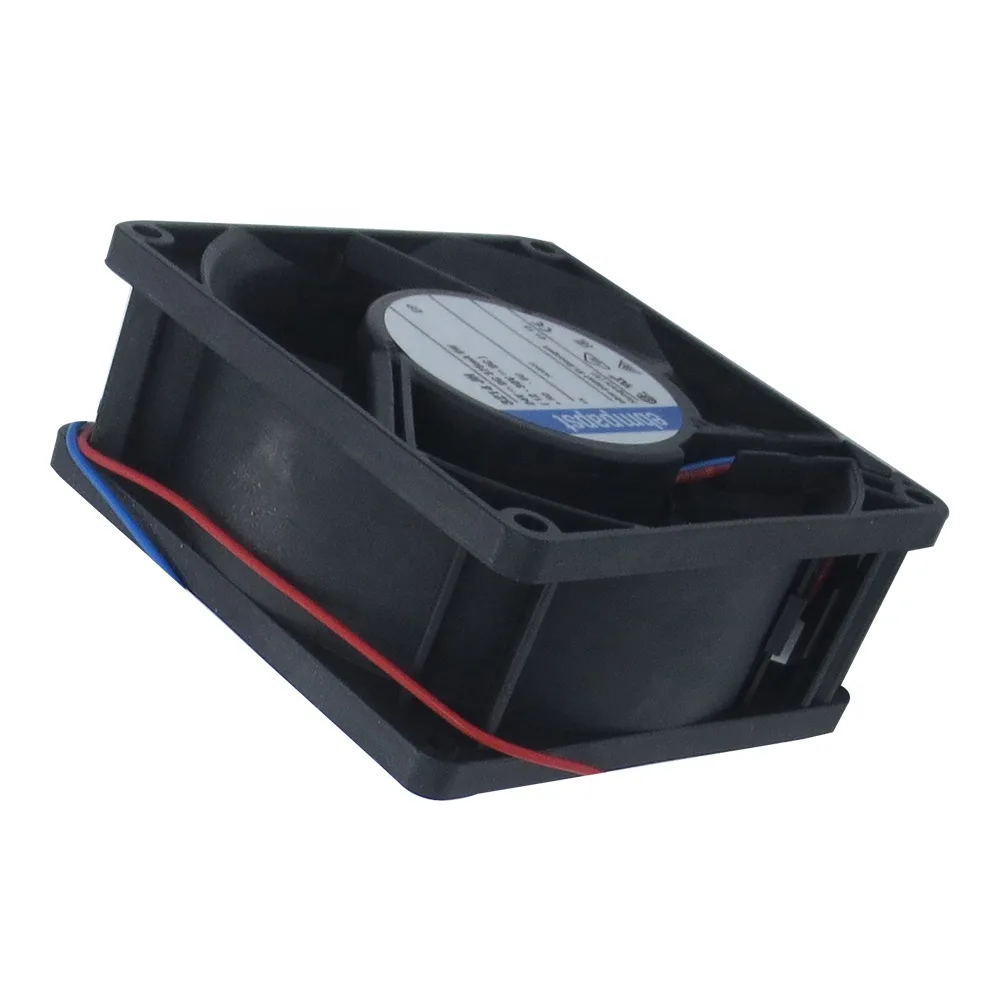

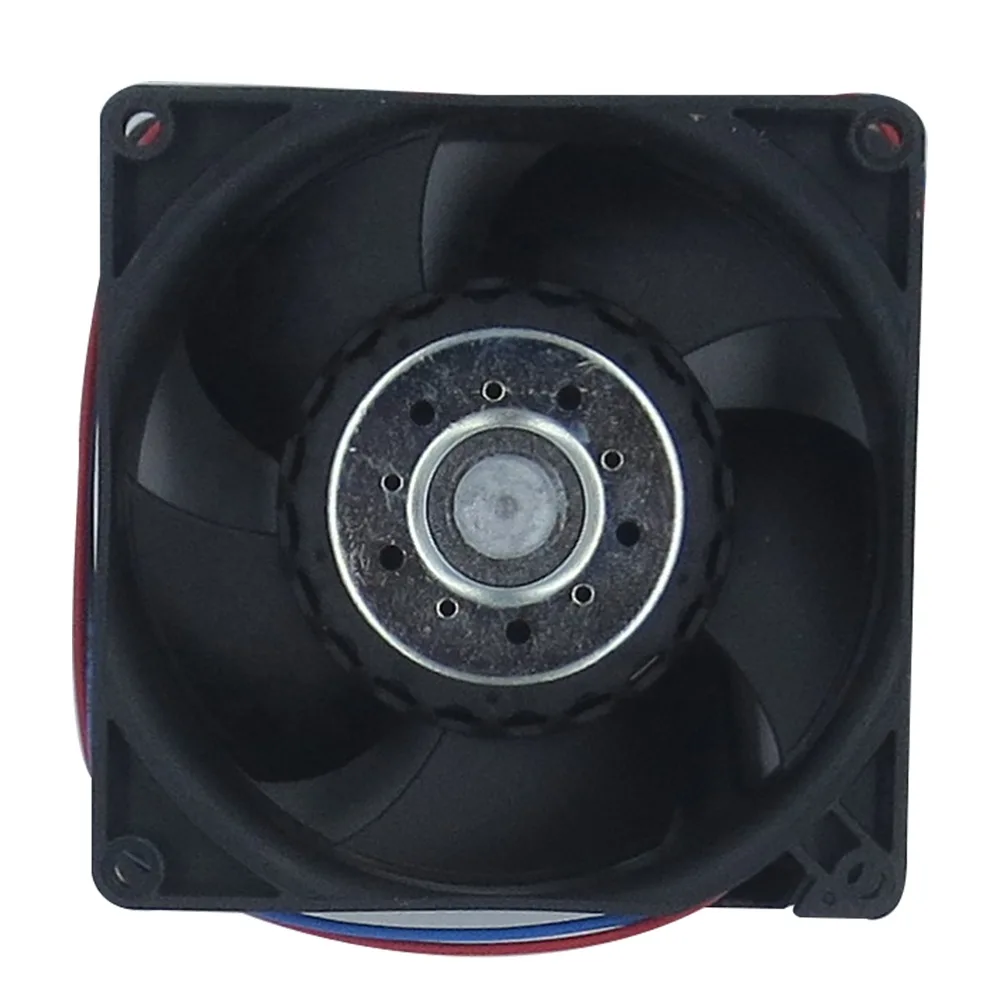

Square black 92 mm frame 38 mm deep axial fan

Fans

Fans 3214JH 24V 92x92x38mm case fan

SKU CH-Y10Q-5NR5R

A 24 V DC axial fan measuring 92 × 92 × 38 mm, delivering 146 m³/h airflow at 6 800 rpm with ball-bearing reliability and 55 dB noise

  • High airflow 146 m3/h cools dense component layouts
  • 24 V DC input suits industrial and server power systems
  • Ball bearing construction extends operating life under continuous load
  • Electronic protection prevents damage from polarity reversal blockage overload
  • 6800 rpm speed delivers strong static pressure for restricted airflow paths

Industrial-grade 24 V axial fan

The ebm-papst 3214JH is a 92 x 92 x 38 mm DC fan built for continuous cooling in control cabinets, inverters and similar industrial equipment. It draws 375 mA at 24 V and delivers 146 m³/h of airflow at 6800 rpm using a ball-bearing motor. Buyers needing a compact, high-speed fan for 24 V DC systems will find it a direct fit.

Check voltage, mounting and airflow direction

Verify that your power supply provides 24 V DC and can supply at least 375 mA per fan. Confirm the 92 mm square mounting pattern and 38 mm depth match the cut-out and clearance in your enclosure. Ensure the airflow direction suits your thermal path, as the fan pushes 146 m³/h at 55 dB noise level.

Sustained operation at rated speed

The ball-bearing design and integrated protection against polarity reversal, blockage and overload support long-term running at 6800 rpm without the wear seen in sleeve-bearing units. Electronic commutation maintains stable current draw under constant load, and the 9 W power dissipation remains steady during extended duty cycles in industrial environments.

Highlights

  • High airflow 146 m3/h cools dense component layouts
  • 24 V DC input suits industrial and server power systems
  • Ball bearing construction extends operating life under continuous load
  • Electronic protection prevents damage from polarity reversal blockage overload
  • 6800 rpm speed delivers strong static pressure for restricted airflow paths

Specifications

No published specifications for this item yet.

Questions about this item

Does the 3214JH include mounting screws or a power cable, or do I need to buy them separately?

The fan ships as the 92 × 92 × 38 mm unit with a 24 V DC lead; mounting hardware and any extension cables are not included.

Should I choose the 6800 rpm version or a higher-speed model for a 24 V industrial enclosure?

This 3214JH runs at 6800 rpm with 146 m³/h airflow and 55 dB noise; no other speed variant is offered in the 24 V 3200J series.

What does the 9 W power rating mean for actual heat dissipation inside a live server chassis?

At 9 W draw and 375 mA the fan delivers 146 m³/h at 6800 rpm, moving enough air to offset the 9 W it consumes plus the heat load of the enclosure.
