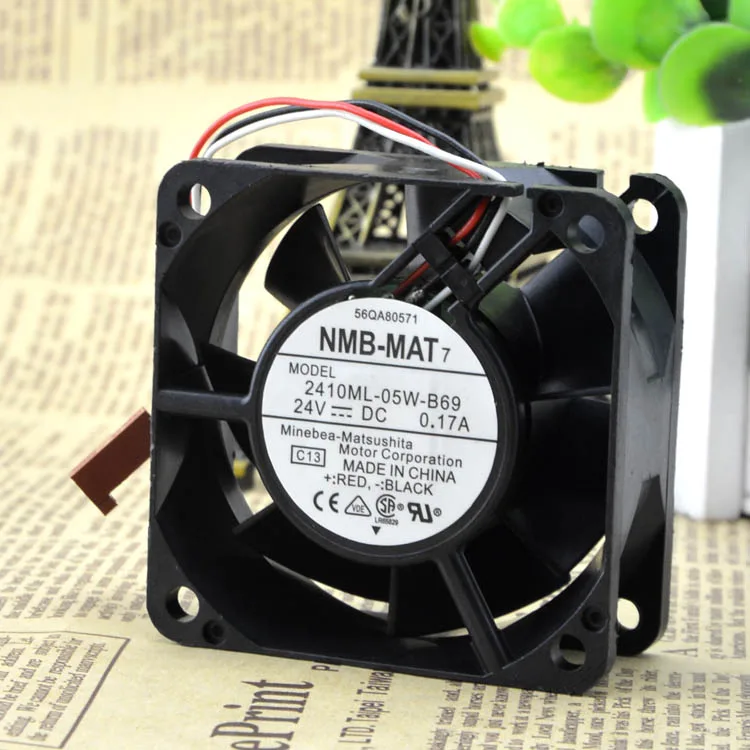

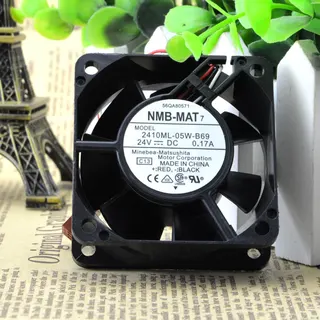

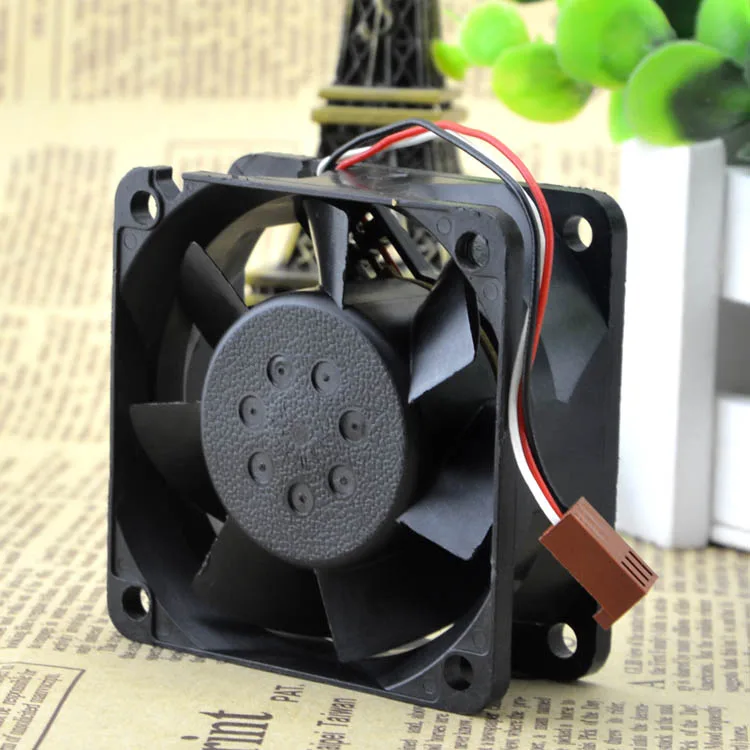

Black square 60 mm case fan with double ball bearing and wire leads

Fans

Fans 2410ML-05W-B69Bearing 6025 24V .17A case fan

SKU CH-FTT3-H6N9E MPN 2410ML-05W-B69Bearing

A 60 × 60 × 25 mm 24 V ball-bearing case fan rated at 0.17 A with an 180,000-hour MTTF

  • Double ball bearing extends service life
  • 180000 hour MTTF rating ensures reliability
  • 24V operation with 18V-25.8V range
  • Compact 60x60x25mm fits tight spaces
  • Low 0.17A current draw reduces power load

Compact 60 mm axial fan for 24 V systems

The NMB-MAT 2410ML-05W-B69 is a 60 x 60 x 25 mm axial fan rated for 24 V operation with a working range of 18 V to 25.8 V. It draws 0.17 A and uses a double ball bearing with an internal IC for speed control. The unit is designed for industrial and embedded cooling where a small footprint and long service life are required.

Sustained operation at rated voltage

Continuous running at 24 V stays within the 18 V to 25.8 V window, so the motor sees a stable supply without over-voltage stress. The double ball bearing construction and special IC are specified for an MTTF of 180000 hours, indicating the fan is built for constant duty rather than intermittent bursts. Current remains at 0.17 A under normal load, keeping thermal rise predictable over time.

Verify mounting space and power source

Confirm the chassis provides a 60 mm square cut-out with 25 mm depth and the correct screw pattern for a 6025 frame. Ensure the system delivers a regulated 24 V rail that stays inside the 18 V to 25.8 V range and can supply at least 0.17 A per fan. The two-wire lead carries power only; no tachometer or PWM signal is present, so speed monitoring must be handled externally if required.

Highlights

  • Double ball bearing extends service life
  • 180000 hour MTTF rating ensures reliability
  • 24V operation with 18V-25.8V range
  • Compact 60x60x25mm fits tight spaces
  • Low 0.17A current draw reduces power load

Specifications

No published specifications for this item yet.

Questions about this item

How loud is the 2410ML-05W-B69Bearing at 24 V continuous operation?

The double ball bearing with special IC is rated for 180000 hours MTTF at 24 V, indicating low wear and stable acoustic profile during all-day use.

What connector or voltage source does the 6025 frame need to run?

It requires a 24 V DC supply within the 18 V to 25.8 V range and draws 0.17 A through its two-wire lead.

Will the 60 × 60 × 25 mm size fit the same mounting holes as my old 60 mm fan?

Yes, the 60 mm square frame with 25 mm depth matches the standard 6025 footprint used by most legacy 60 mm case fans.
